Projector Connections
34
a
If you want to output images to an external monitor when the
projector is turned off, you need to do the following:
Select Communication On as the Standby Mode setting in the
projector's ECO menu.
Select Always On as the A/V Output setting in the projector's
Extended menu.
s Extended > A/V Settings > A/V Output
To output images to an external monitor, set Monitor Out Port to
Monitor Out in the projector's Extended menu.
s Extended > Operation > Monitor Out Port
Content drawn on the screen using the interactive features is not
displayed on an external monitor (EB-695Wi/EB-685Wi/EB-
680Wi/EB-675Wi). To display the drawn content on an external
monitor, use the supplied Easy Interactive Tools.
Monitors that use a refresh rate of less than 60 Hz may not be able to
display images correctly.
a
Make sure your computer is connected to the projector's Computer
port.
a
If there are two computer ports, make sure you use the
Computer1 port.
Only analog RGB signals from the Computer1 port can be
output to an external monitor. You cannot output signals
input from other ports or component video signals.

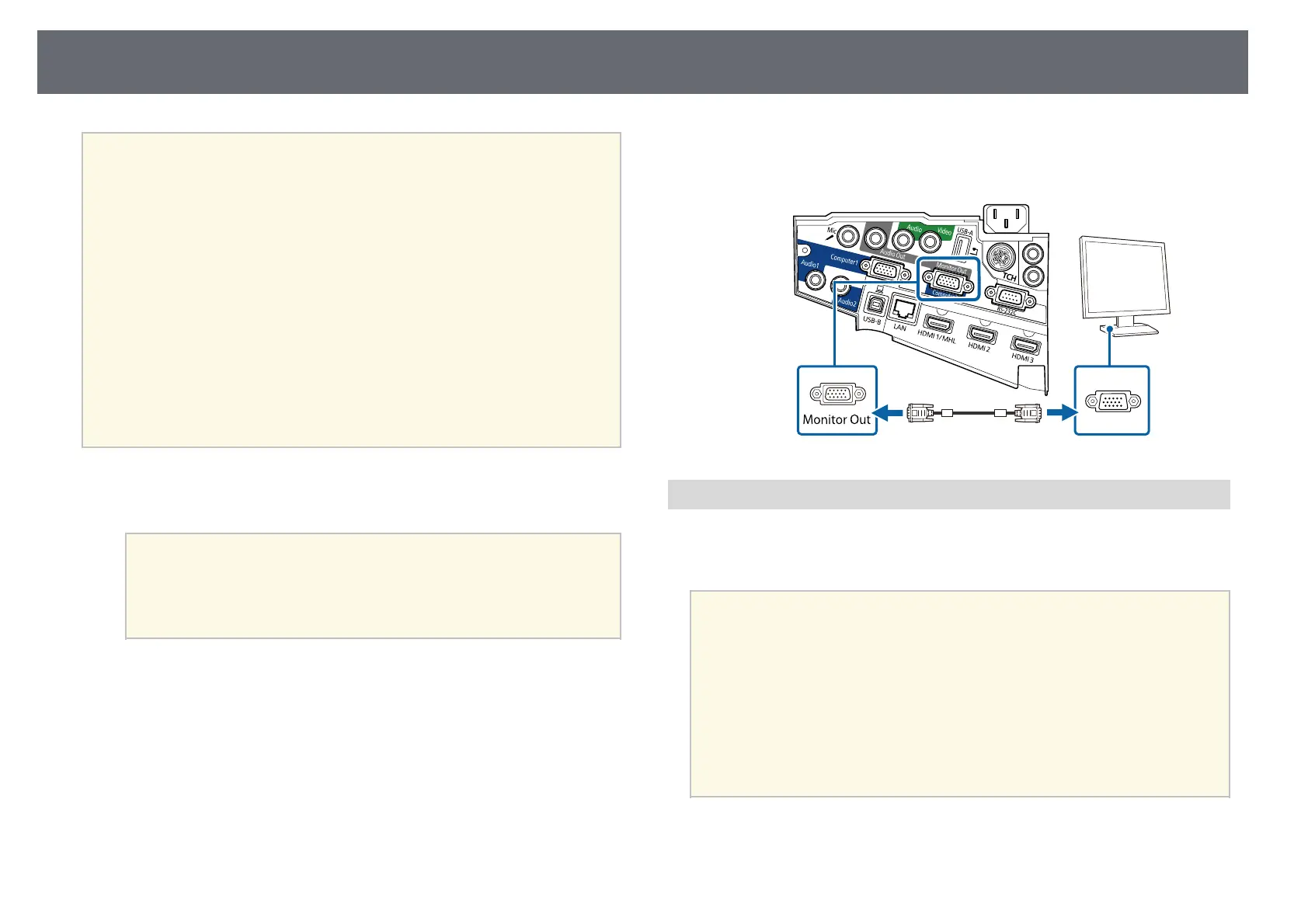

b
Connect the external monitor's cable to your projector's Monitor Out
port.
Connecting to External Speakers
To enhance the sound from your presentation, you can connect the projector
to external self-powered speakers. You can control the volume using the
projector's remote control.
a
If you want to output audio from the external speakers when the
projector is turned off, you need to do the following:
Select Communication On as the Standby Mode setting in the
projector's ECO menu.
Select Always On as the A/V Output setting in the projector's
Extended menu.
s Extended > A/V Settings > A/V Output
You can also connect the projector to an amplifier with speakers.
The projector's built-in speaker system is disabled when you connect
external speakers.
a
Make sure your computer or video source is connected to the projector
with both audio and video cables as necessary.
