Epson EB-685W User Manual

Using ESC/VP21 Commands
162

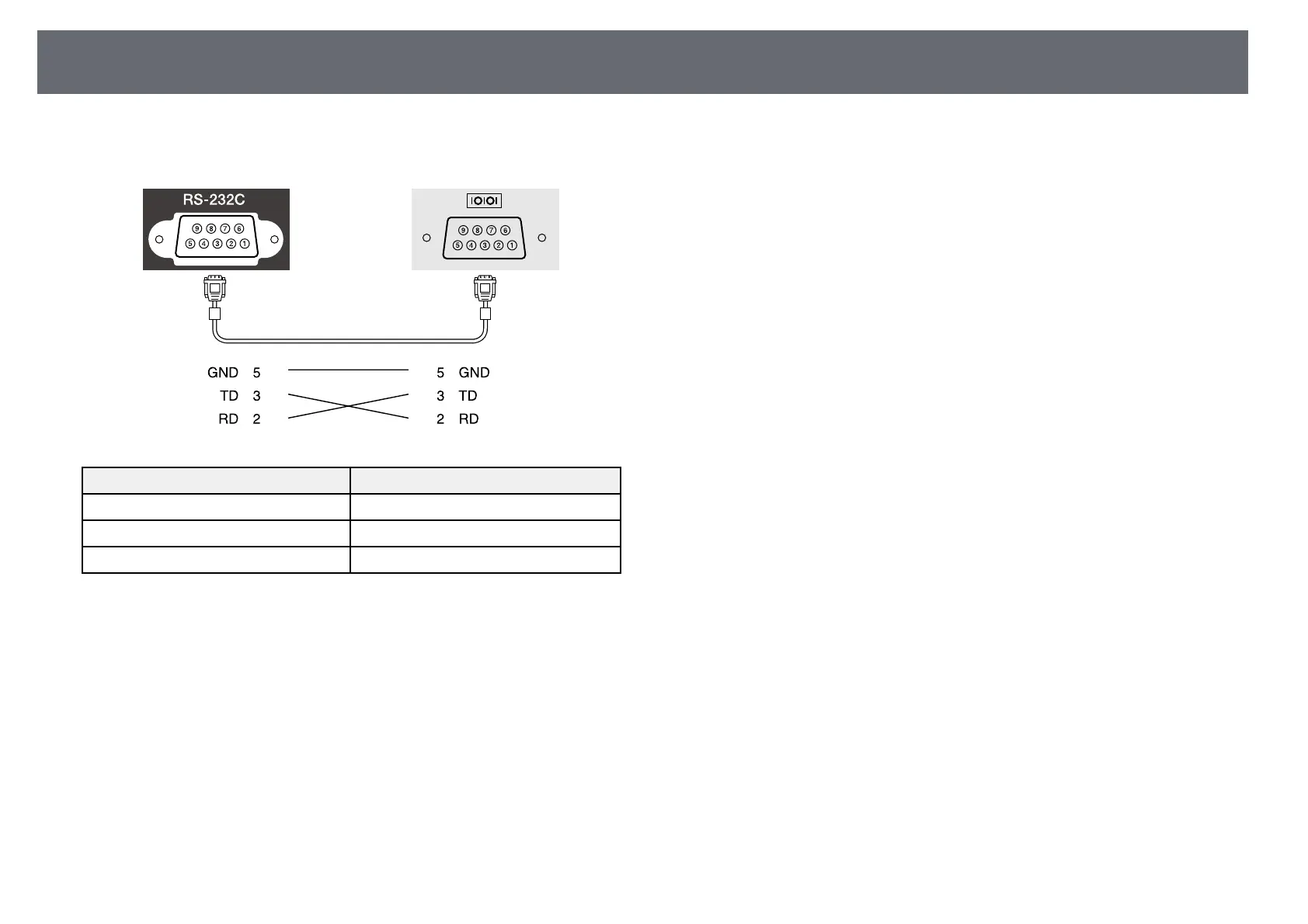

In the following illustration, the projector side is shown on the left, and the
computer side on the right:
Signal name Function
GND Signal wire ground
TD Transmit data
RD Receive data
Communications protocol
• Default baud rate setting: 9600 bps
• Data length: 8 bit
• Parity: None
• Stop-bit: 1 bit
• Flow control: None

Epson EB-685W Specifications

General

Projection Technology	3LCD
Native Resolution	WXGA (1280 x 800)
Brightness	3500 lumens
Contrast Ratio	14, 000:1
Lamp Life	Up to 10, 000 hours (ECO mode)
Keystone Correction	Manual vertical: ± 3°, Manual horizontal ± 3°
Connectivity	HDMI, USB, VGA
Zoom	Digital Zoom
Speakers	16W Mono
