Epson EB-696Ui - Projector Parts - Pen Tray; Projector Parts - Touch Unit

Projector Parts and Functions
20

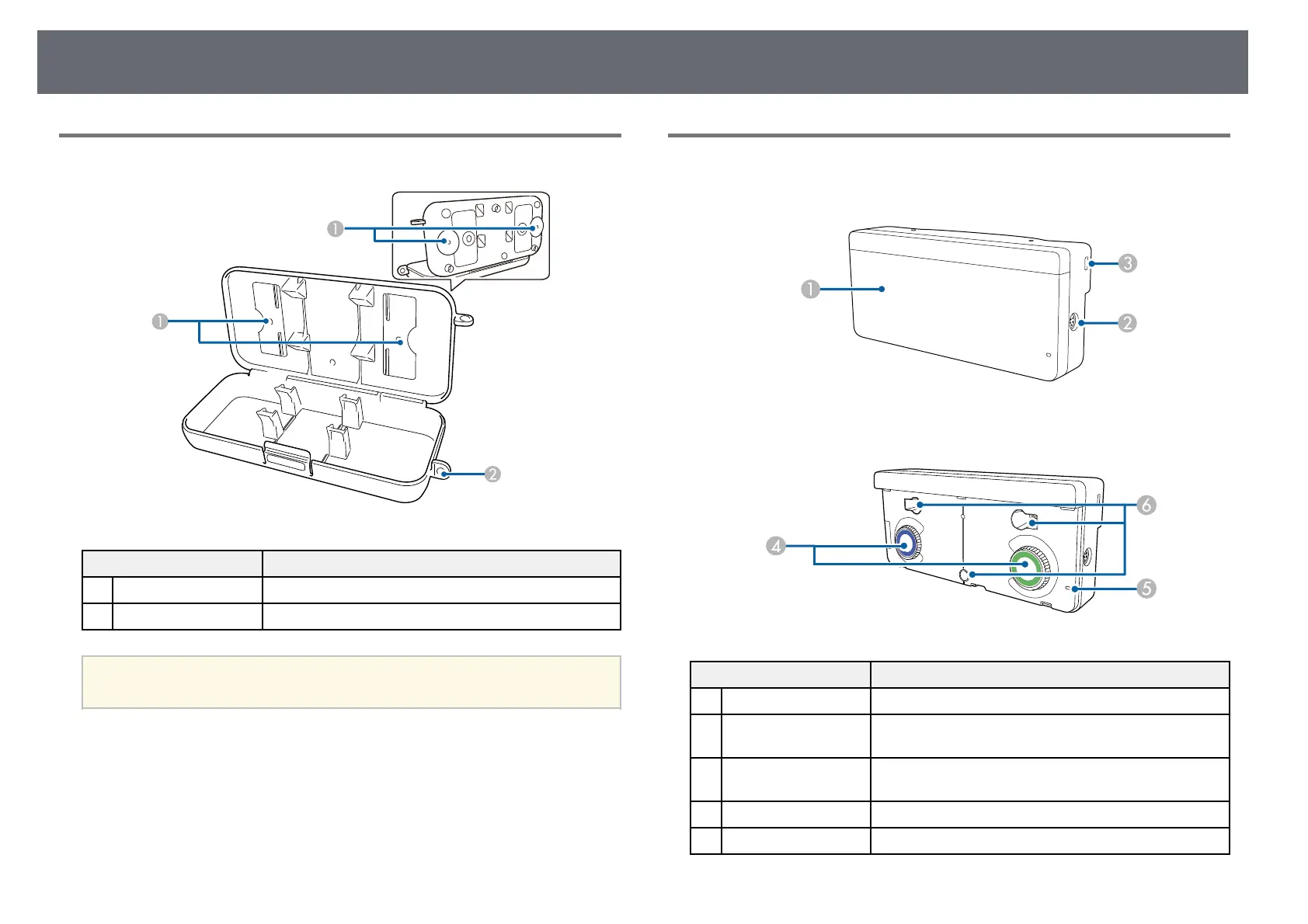

Projector Parts - Pen Tray
Name Function
A
Fixing points Attach the pen tray to a whiteboard or wall.
B
Security lock hole Pass a commercially available lock through here.
a
It is recommended that the pen tray be tightened with two
commercially available M5 bolts.
Projector Parts - Touch Unit
Front
When the dial cover is not attached
Name Function
A
Dial cover Remove to use the adjustment dials.
B
TCH port Connects the projector to the Touch Unit with the
Touch Unit connection cable.
C
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
D
Adjustment dials Perform angle adjustments.
E
Indicator Lit when the Touch Unit is turned on.
