Epson EB-X39 User Manual

Image Shape
47
e

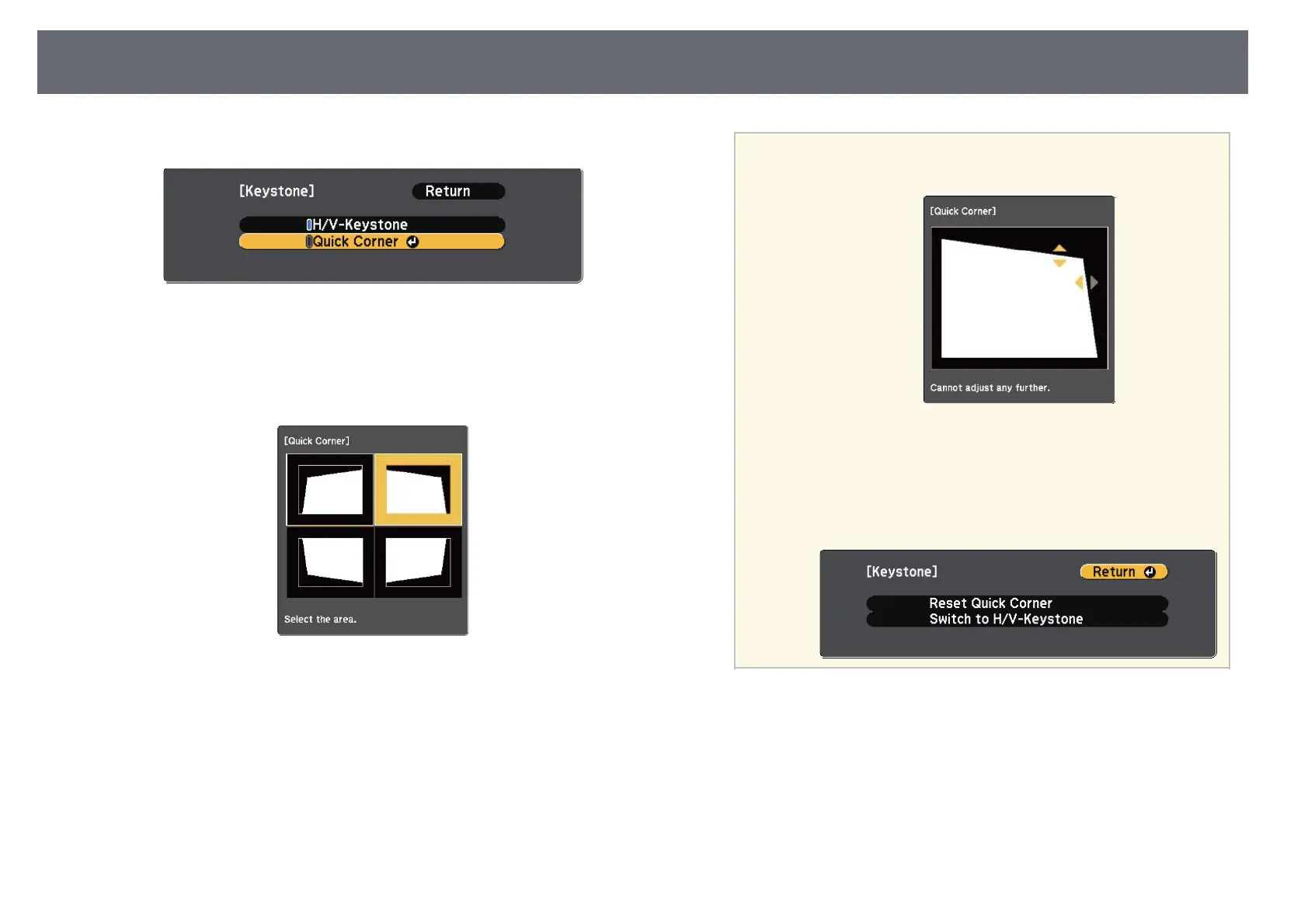

Select Quick Corner and press [Enter]. Press [Enter] again if necessary.
You see the area selection screen.
f
Use the arrow buttons to select the corner of the image you want to
adjust. Then press [Enter].
g
Press the arrow buttons to adjust the image shape as necessary.
To return to the area selection screen, press [Enter].
a
• If you see this screen, you cannot adjust the shape any further
in the direction indicated by the gray triangle.
• To reset the Quick Corner corrections, hold down [Esc] for
about 2 seconds while the Quick Corner adjustment screen is
displayed, and select Reset Quick Corner. Select Switch to
H/V-Keystone to switch the image shape correction method to
H/V-Keystone.
h
Repeat steps 6 and 7 as needed to adjust any remaining corners.
i
When you are finished, press [Esc].
The Keystone setting is now set to Quick Corner in the projector's Settings
menu. The next time you press the keystone adjustment buttons on the
control panel, the area selection screen is displayed.

Epson EB-X39 Specifications

General

Resolution	XGA (1024 x 768)
Contrast Ratio	15, 000:1
LCD Panel	0.55 inch with MLA (D10)
Projection Ratio	1.48 - 1.77:1
Lens	Optical
Screen Size	30 inches - 300 inches
3D	No
Brightness	3500 lumens
Lamp Life	12, 000 hours (ECO mode)
Connectivity	HDMI, VGA, USB
Projection System	3LCD
Keystone Correction	Vertical ±30 degrees, Horizontal ±30 degrees
Zoom	1.2x
Interfaces	HDMI in, VGA in, USB Type-A, USB Type-B, Composite in, Audio in
Security	Kensington lock, Password protection
Speakers	2 W
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
