Introduction
9
Name Function
m
Zoom ring
Adjusts the image size. s p.24
n
Horizontal keystone
adjuster
Performs horizontal keystone correction. s p.26
o
Control panel
Control panel on the projector. s p.9

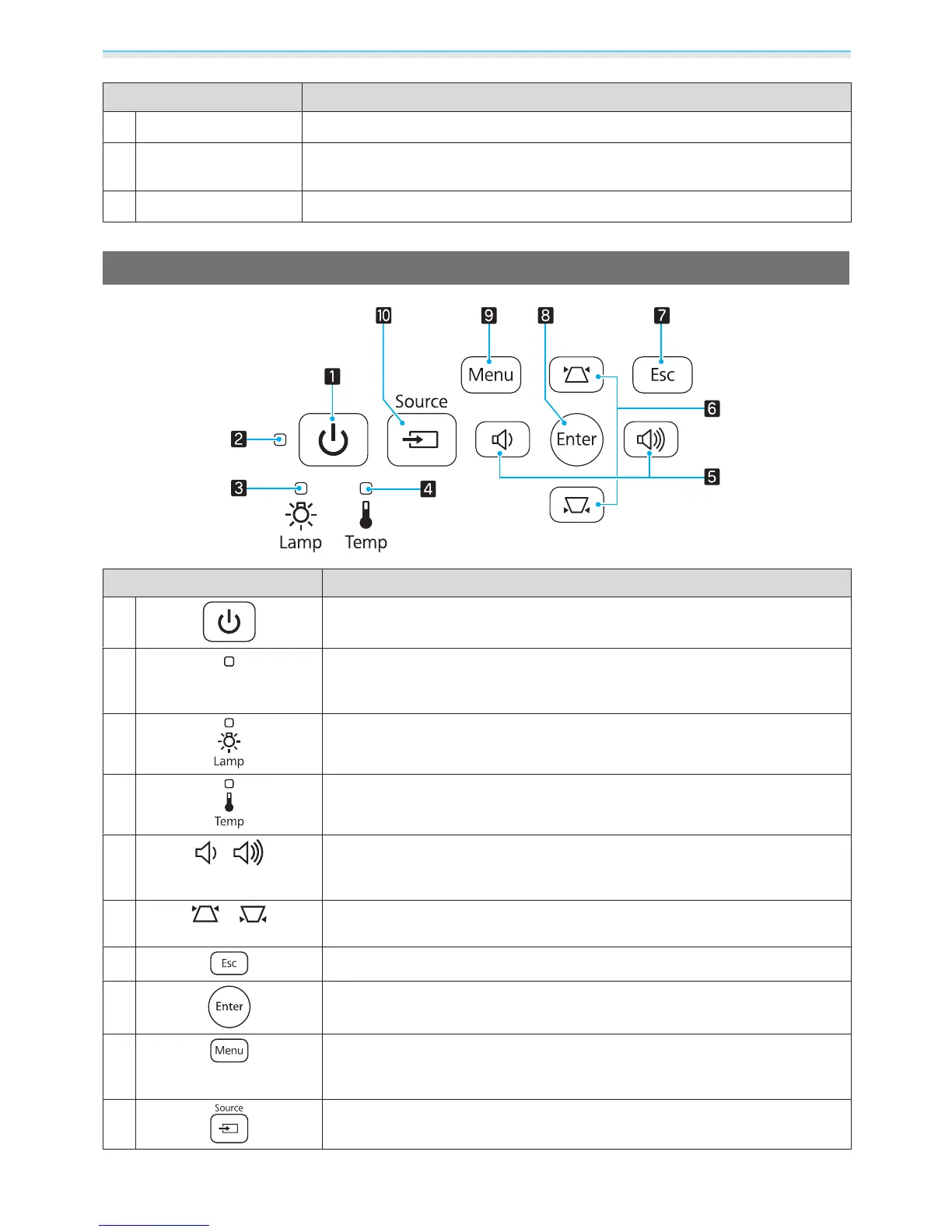

Control Panel
Buttons/Indicators Function
a
Turns the projector power on or off. s p.22
Lit when the projector is on.
s p.58
b
Operation indicator
Flashes to indicate warm-up in progress or cool-down in progress. Shows the
projector's status through a combination of other indicators lit and flashing.
s p.56
c
Flashes orange when it is time to replace the lamp. Shows the projector's errors
through a combination of other indicators lit and flashing.
s p.56
d
Flashes orange if the internal temperature is too high. Shows the projector's
errors through a combination of other indicators lit and flashing.
s p.56
e
Selects the adjustment value for the volume and for menu items. s p.27
Performs horizontal keystone correction when the Keystone screen is dis‐
played.
s p.26
f
Selects the adjustment value for the keystone correction and for menu items.
s p.26
g
Return to the previous menu level when a menu is displayed. s p.45
h
Selects functions and settings when a menu is displayed. s p.45
i
Displays and closes the Configuration menu.
On the Configuration menu, you can make adjustments and settings for Signal,
Image, Input Signal, and so on.
s p.45
j
Changes to the image from each input port. s p.23
