Name Function
d
Temperature indicator
Flashes orange if the internal temperature is too high. Shows the projector's
errors through a combination of other indicators lit and flashing.
s p.57
e
[HDMI] button
Changes to the image from the HDMI port. s p.26
f
Volume (Left/Right)
buttons
•
Adjusts the volume. s p.32
•
Selects menu items or adjustment values while displaying the projector's menu.
•
Performs horizontal keystone correction when the Keystone screen is displayed.
s p.29
g
Keystone (Up/Down)
buttons
•
Adjusts keystone distortion in projected images. s p.29
•
Selects menu items or adjustment values while displaying the projector's menu.
h
[Esc] button
Returns to the previous menu level when a menu is displayed. s p.49
i
[Enter] button
Selects functions and settings when a menu is displayed. s p.49
j
[Menu] button
Displays and closes the Configuration menu.
On the Configuration menu, you can make adjustments and settings for Sig-
nal, Image, Input Signal, and so on.
s p.49
k
[Home] button
Switches to the image from Android TV
TM
.
c
When the Illumination function is set to Off, all indicators are off under normal projection conditions.
s Extended - Operation - Illumination p.54

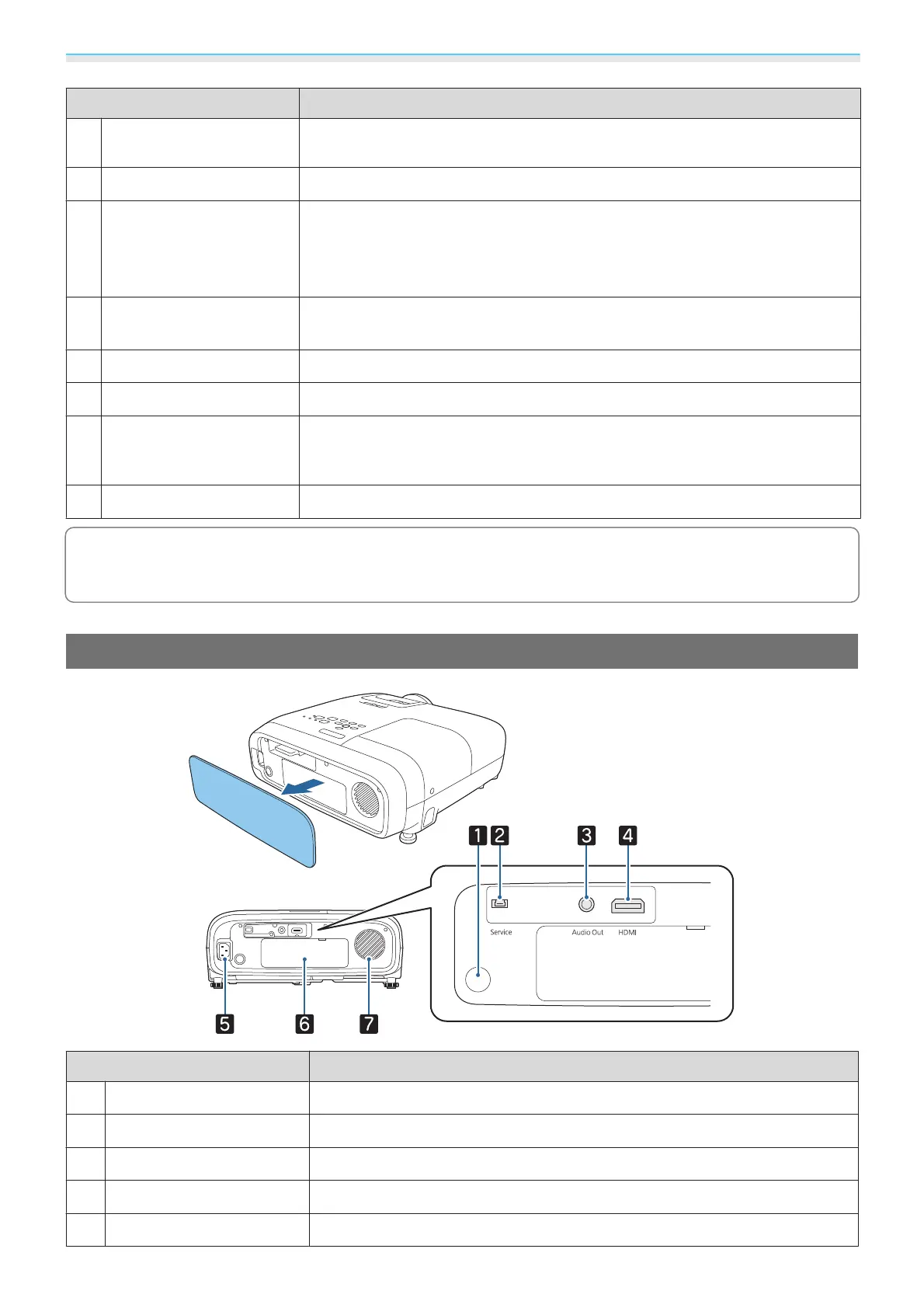

Rear
Name Function
a
Remote receiver
Receives signals from the remote control. s p.24
b
Service port
Service port. This is not normally used.
c
Audio Out port
Outputs audio during playback to external speakers. s p.22
d
HDMI port
Connects HDMI compatible video equipment and computers. s p.20
e
Power inlet
Connects a power cord. s p.25

Epson EH-TW5700 Specifications

General

Heat dissipation	1009.8 BTU/h
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	2.71 - 2.61 m
Projection technology	3LCD
Contrast ratio (typical)	35000:1
Screen size compatibility	34 - 332 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Placement	Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	-
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	7500 h
Focus	Manual
Focal length range	16.9 - 20.28 mm
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	297 W
Video color modes	Bright cinema, Cinema, Dynamic, Natural
DVI port	No
HDMI version	1.4
HDMI connector type	Full-size
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	315 mm
Width	309 mm
Height	122 mm
Weight	3600 g
