Epson EH-TW5700 User Manual

Introduction
7

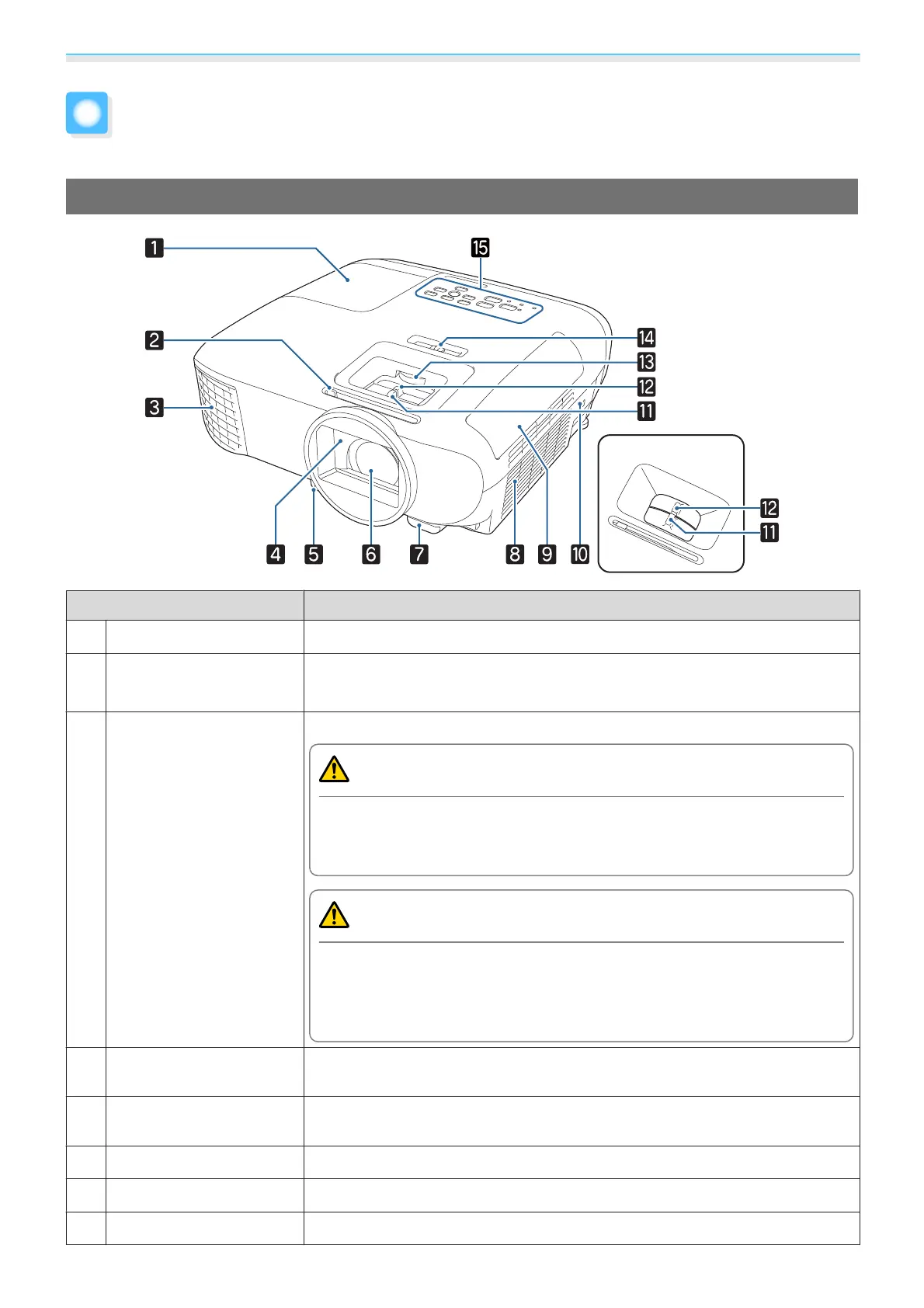

Part Names and Functions
Front/Top
EH-TW5700
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.72
b
A/V mute slide lever
Slide the knob to open and close the lens cover.
By closing during projection you can hide the image and audio.
s p.32
c
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Warning
Do not look into the air exhaust vent. If the lamp explodes, scattered
small shards of glass and released gas may cause an injury. If any glass
gets into your eyes or mouth, contact your local physicians immediately.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat
near the vent. Hot air from the air exhaust vent could cause burns, warp-
ing, or accidents to occur.
d
Lens cover
Close when not using the projector to protect the lens from being scratched
or soiled.
s p.26
e
Foot release lever
Press the foot release lever to extend and retract the front adjustable foot.
s p.27
f
Lens
Images are projected from here.
g
Remote receiver
Receives signals from the remote control. s p.24
h
Air intake vent
Intake vent for air used to cool the projector internally.

Epson EH-TW5700 Specifications

General

Heat dissipation	1009.8 BTU/h
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	2.71 - 2.61 m
Projection technology	3LCD
Contrast ratio (typical)	35000:1
Screen size compatibility	34 - 332 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Placement	Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	-
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	7500 h
Focus	Manual
Focal length range	16.9 - 20.28 mm
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	297 W
Video color modes	Bright cinema, Cinema, Dynamic, Natural
DVI port	No
HDMI version	1.4
HDMI connector type	Full-size
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	315 mm
Width	309 mm
Height	122 mm
Weight	3600 g
