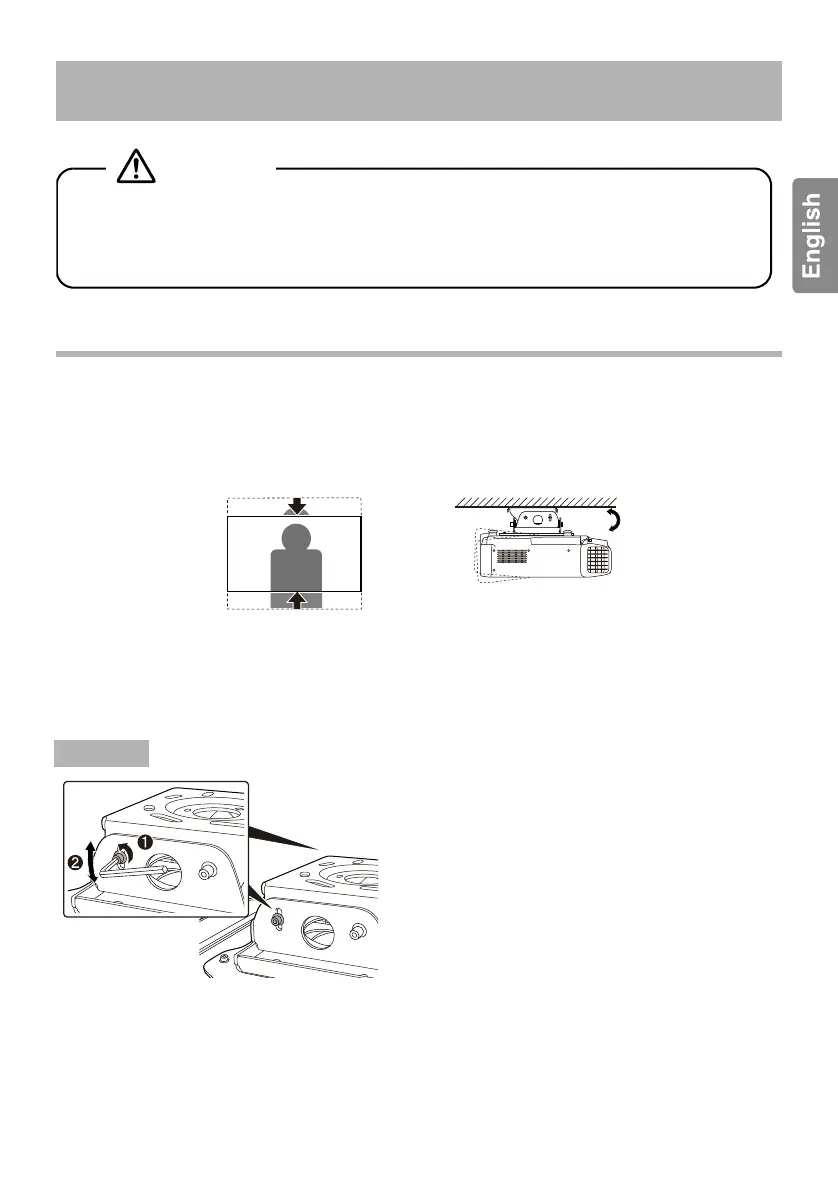

Moving the Projected Images Higher or Lower
When the images are projected higher or lower compared to the screen, adjust the projection
position using the lens shift of the projector.
When moving the projection position vertically over the adjustable range of the lens shift, the
projection position can be adjusted another 5 degrees in either direction by tilting the
projector.
When tilting the projector, the projected images may be twisted. The images twisted in a
trapezoidal shape can be corrected by using the keystone adjustment.
However, the image goes out of focus as the inclination angle increases.
For details on the lens shift and keystone, see the "User's guide" supplied with the projector.
A Loosen the two screws for the vertical angle
adjustment points on the left and right using
the supplied M8 hexagon wrench.
B Tilt the rear of the projector vertically to
adjust the angle until the position of the
projected images fits the screen.
C After adjusting the angle, secure the screws
on both sides using the M8 hexagon wrench.
Adjusting the Installation Position
Procedure
v Never loosen or remove any screws needlessly when adjusting the position.
Doing so could cause the projector to fall and lead to an accident.
v Retighten all screws and make sure that they are not loose after adjustment.
Warning
To Next Page
