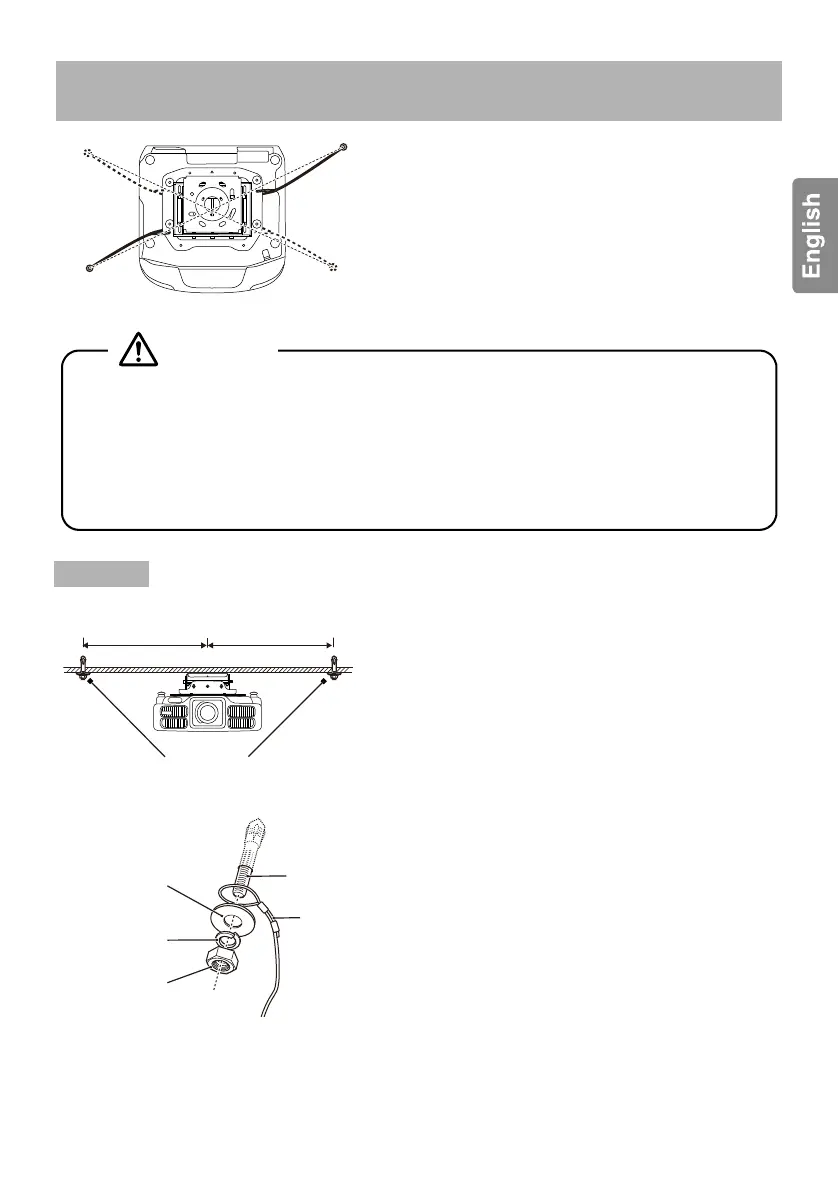

After installing the projector on the ceiling, take
additional precautions to secure it in place and
prevent it from falling or rolling.
Pass the wires provided diagonally through the
projector plate using the wire clips to prevent the
projector from falling.
A Locate two commercially available anchor
bolts at the end of a diagonal line on the
ceiling.
We recommend locating the anchor bolts within
1 meter from the center of the projector.
Use M12 anchor bolts.
B Loop the two safety wires around the two
bolts and secure them firmly.
Make sure that the wire loops are under the flat
washers, and then tighten the hexagon nuts.
Installing the Safety Wires
Procedure
v Make sure in advance that the concrete on which this product is installed can hold the
weight and lateral movement of the projector and ceiling mount. If the concrete is not
strong enough or has deteriorated, fortify it with reinforcing bars or something
similar.
v Install the anchor bolts according to the specifications and methods of the
manufacturer of the materials so they do not come out, become loose, or shift.
Warning
Anchor bolts
(M12)
Within 1 m
(recommended)
Within 1 m
(recommended)
Wire
rope
Anchor
bolt
Flat washer
(φ 24 - φ 26mm)
Spring
washer
Hexagon nut
To Next Page
