Part Names and Functions
11

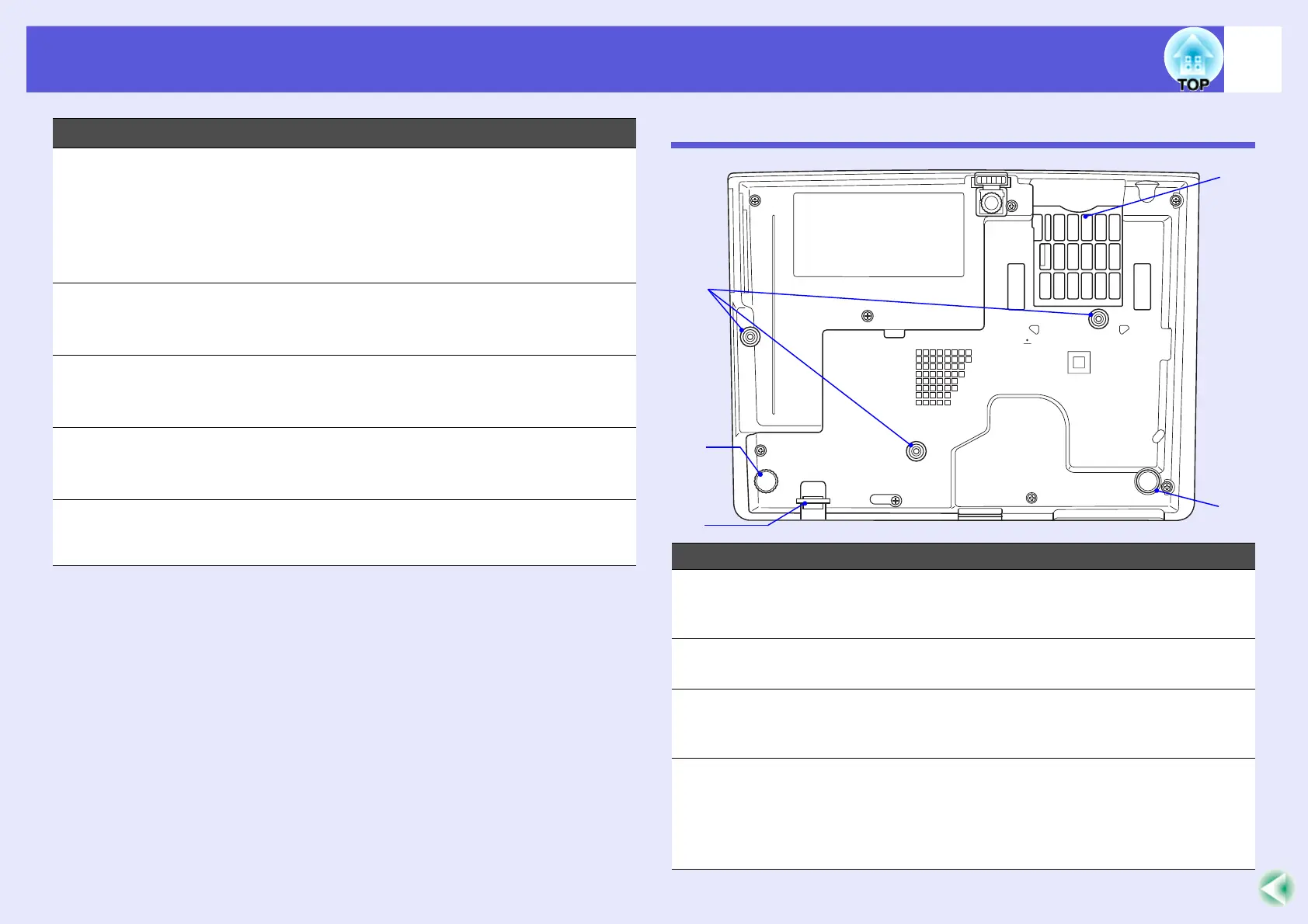

Base
L
[Volume -] button
[Volume +] button
Press [Volume -] to lower the volume and
press [Volume +] to raise the volume.
If pressed when a configuration menu or a help
screen is displayed, these buttons select menu
items and setting values.
s Quick Start Guide , p.23
M
[Esc] button Stops the current function. If pressed when a
configuration menu is displayed, it moves to
the previous level. s p.23
N
[Help] button Displays and closes the help screen which
shows you how to deal with problems if they
occur.s p.37
O
[u] [d] buttons If pressed when a configuration menu or a help
screen is displayed, these buttons select menu
items and setting values. s p.23
P
Remote control
light-emitting
area
Outputs remote control signals.
s Quick Start Guide
Name Function
Name Function
A
Suspension
bracket fixing
points (3 points)
Attach the optional ceiling mount here when
suspending the projector from a ceiling.
s p.49, 64
B
Rear foot
(2 points)
Turn to extend and retract to adjust the
horizontal tilt. s Quick Start Guide
C
Security cable
installation point
Pass a commercially available anti-theft wire
lock through here when you want to secure the
projector to a fixed object. s p.21
D
Air filter (Air
intake vent)
This prevents dust and other foreign particles
from getting inside the projector when air is
drawn in. The projector displays a warning
message when it is time to clean or replace the
air filter.s p.50, 56
D
A
C
B
B
