Part Names and Functions
8

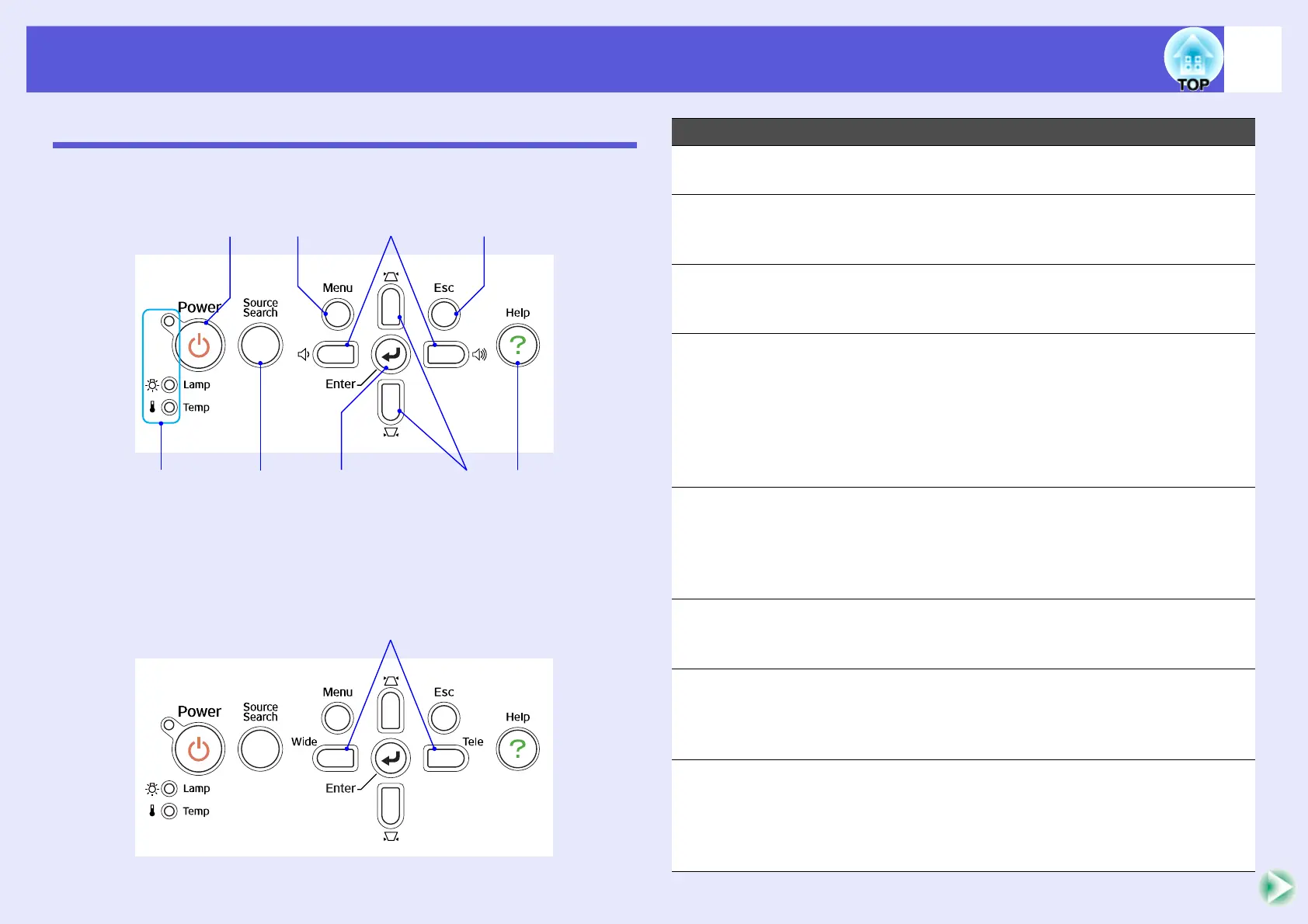

Control Panel
f EMP-83H/822H/X5
f EMP-S5
Buttons without numbers operate in the same way as in the figure above.
See the numbers in the table for the figure above.
H
CFED
A
B
GI
J
Name Function
A
[Power] button Turns the projector power on or off.
s Quick Start Guide
B
Status indicators The color of the indicators and whether they
are flashing or lit indicates the status of the
projector. s p.38
C
[Source Search]
button
Changes to the next input source that is
connected to the projector and is sending an
image.s p.13
D
[Enter] button If pressed during projection of computer signal
images, it automatically adjusts the tracking,
synchronization, and position to project the
optimum image.
When a configuration menu or a help screen is
displayed, it accepts and enters the current
selection and moves to the next level.s p.23
E
[v] [w] buttons Corrects keystone distortion.
If pressed when a configuration menu or a help
screen is displayed, these buttons select menu
items and setting values.
s Quick Start Guide, p.23
F
[Help] button Displays and closes the help screen which
shows you how to deal with problems if they
occur.s p.37
G
[Esc] button Stops the current function.
If pressed when a configuration menu is
displayed, it moves to the previous menu
level.s p.23
H
[a] [b] buttons
(EMP-83H/822H/
X5 only)
Press to adjust the volume.
If pressed when a configuration menu or a help
screen is displayed, these buttons select menu
items and setting values.
s Quick Start Guide, p.23
