4-Part Names and Functions
Before.fm7/22/03
Before Using the Projector

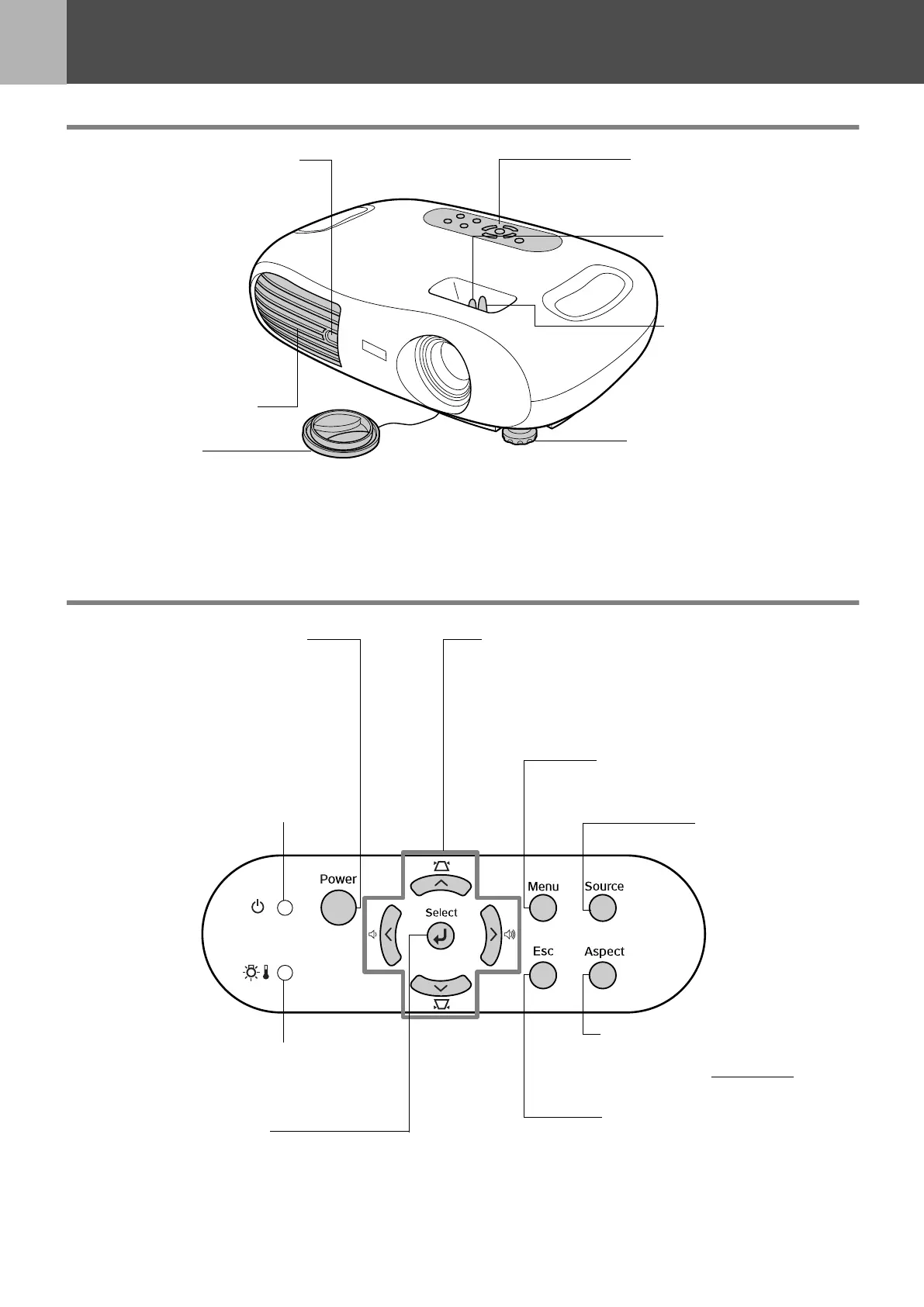

Part Names and Functions
Front/Top
Control panel
• remote control infrared
receiver s P. 7
Receives signals from the
remote control.
• ventilation outlet
• lens cover
Attach when not using the
projector to prevent the lens from becoming dirty or
damaged.
• focus ring
s Quick Reference
Guide
Adjusts the image focus.
• front foot (left) s Quick
Reference Guide
Another front foot is located
on the right side.
Extend and retract to adjust
the projection angle.
• control panel s P.4
•zoom ring
s Quick Reference
Guide
Adjusts the size of the
projected image.
• [Power] button s Quick
Reference Guide
Turns the projector on and off.
• Power indicator s P. 1 6
Flashes or lights in different colours
to indicate the operating status of
the projector.
•[u][d][l][r] buttons s P.1 2
•[w][v]: keystone correction buttons
s Quick Reference Guide
Press to correct keystone distortion in images.
•[a][b]: volume buttons
Adjusts the volume.
• Warning indicator s P.1 6
Flashes or lights in different colours
to alert you to problems with the
projector.
• [Menu] button s P. 1 2
Displays or hides the
configuration menus.
• [Source] button
s Quick
Reference Guide
Switches the input
source between the
Input A port, S-Video
port, Video port and
Input B port each
time the button is
pressed.
•[e] button s P.1 2
Accepts a menu item or advances
to the next screen or menu when
viewing configuration menus.
• [Esc] button s P.1 2
Stops the current function.
Displays the previous screen or
menu when viewing
configuration menus.
• [Aspect] button s Quick
Reference Guide
Changes the Aspect ratiog of
the projected image.
USERS_E.BOOK Page 4 Tuesday, July 22, 2003 3:37 PM
