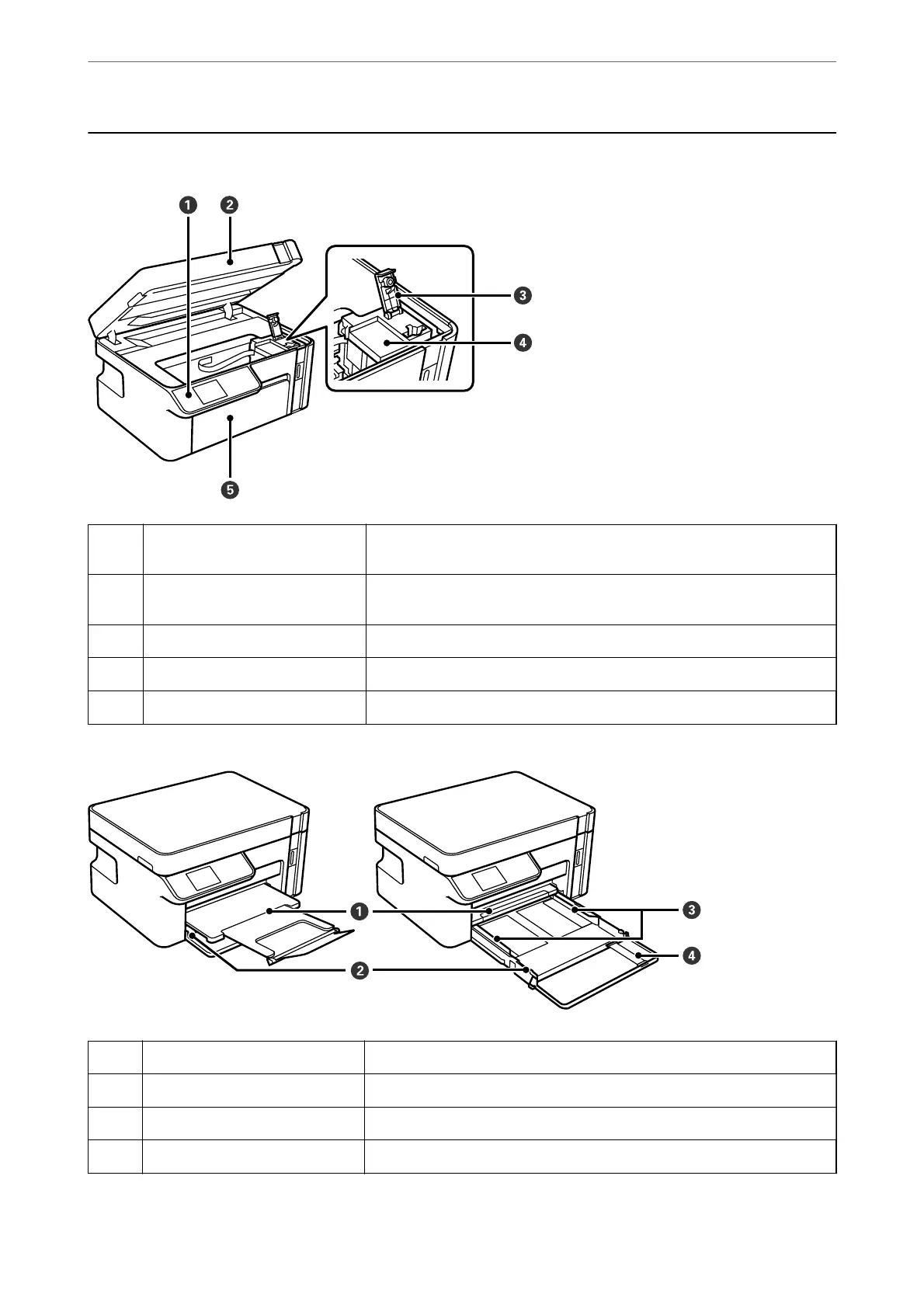

Front
A
Control panel Allows you to make settings and perform operations on the printer. Also
displays the printer’s status.
B
Scanner unit Scans placed originals. Open to rell the ink tank or to remove jammed
paper. This unit should usually be kept closed.
C
Ink tank cap Open to rell the ink tank.
D
Ink tank Contains black ink and is located on the print head.
E
Front cover Open to load paper in the paper cassette.
A
Output tray Holds the ejected paper.
B
Paper cassette Loads paper.
C
Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.
D
Paper guide extension Slide out to load paper larger than A4 size.
Part Names and Functions
>
Front
16
