Projector Parts - Control Panel
EX3220/VS230

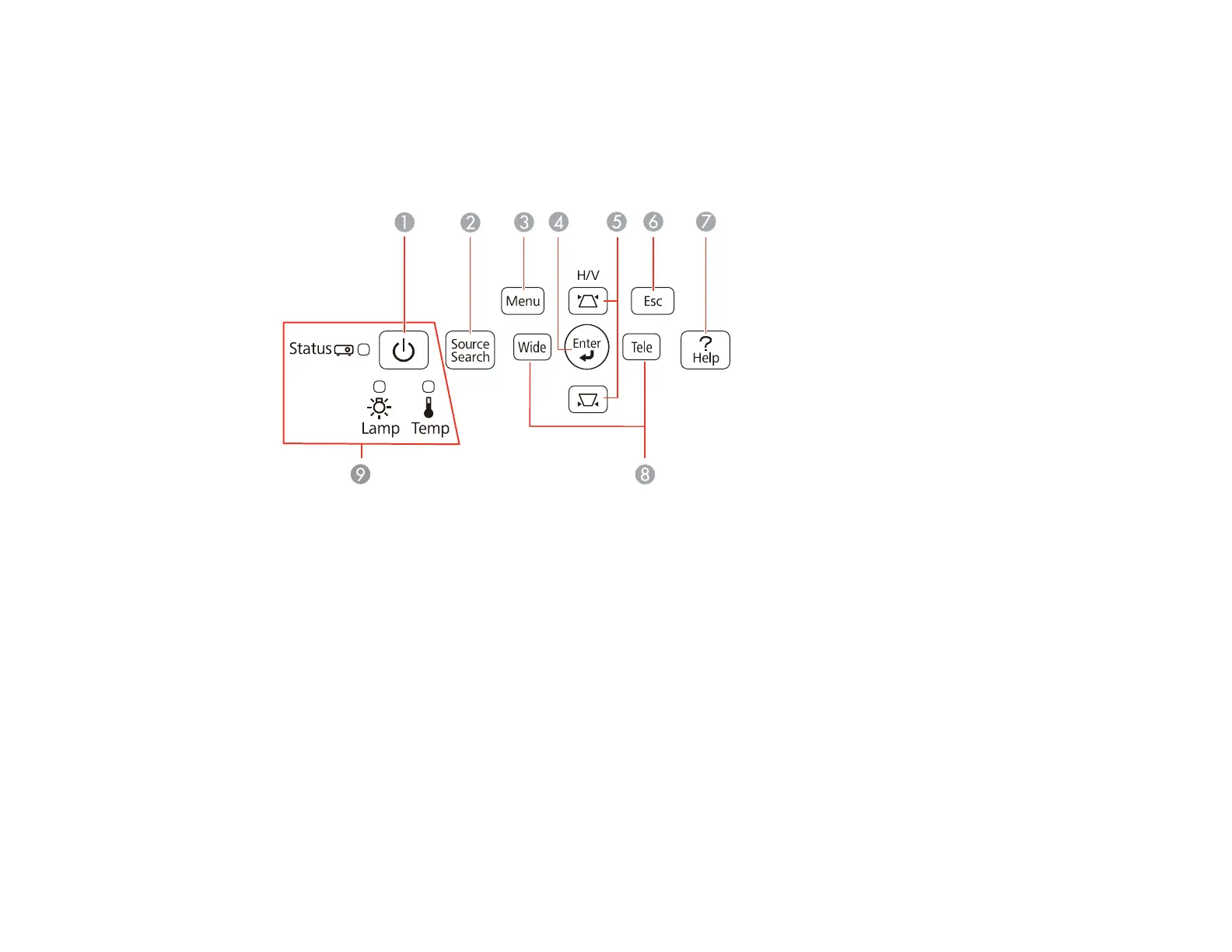

1 Power button and light
2 Source Search button (searches for connected sources)
3 Menu button (accesses projector menu system)
4 Enter button (selects options)
5 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
6 Esc button (cancels/exits functions)
7 Help button (accesses projector help information)
8 Wide/Tele buttons (adjust projected image size), horizontal keystone adjustment buttons (adjusts
screen shape), and arrow buttons
9 Projector status lights
