Epson EX5230 User Manual

Related references
Projector Feature Settings - Settings Menu

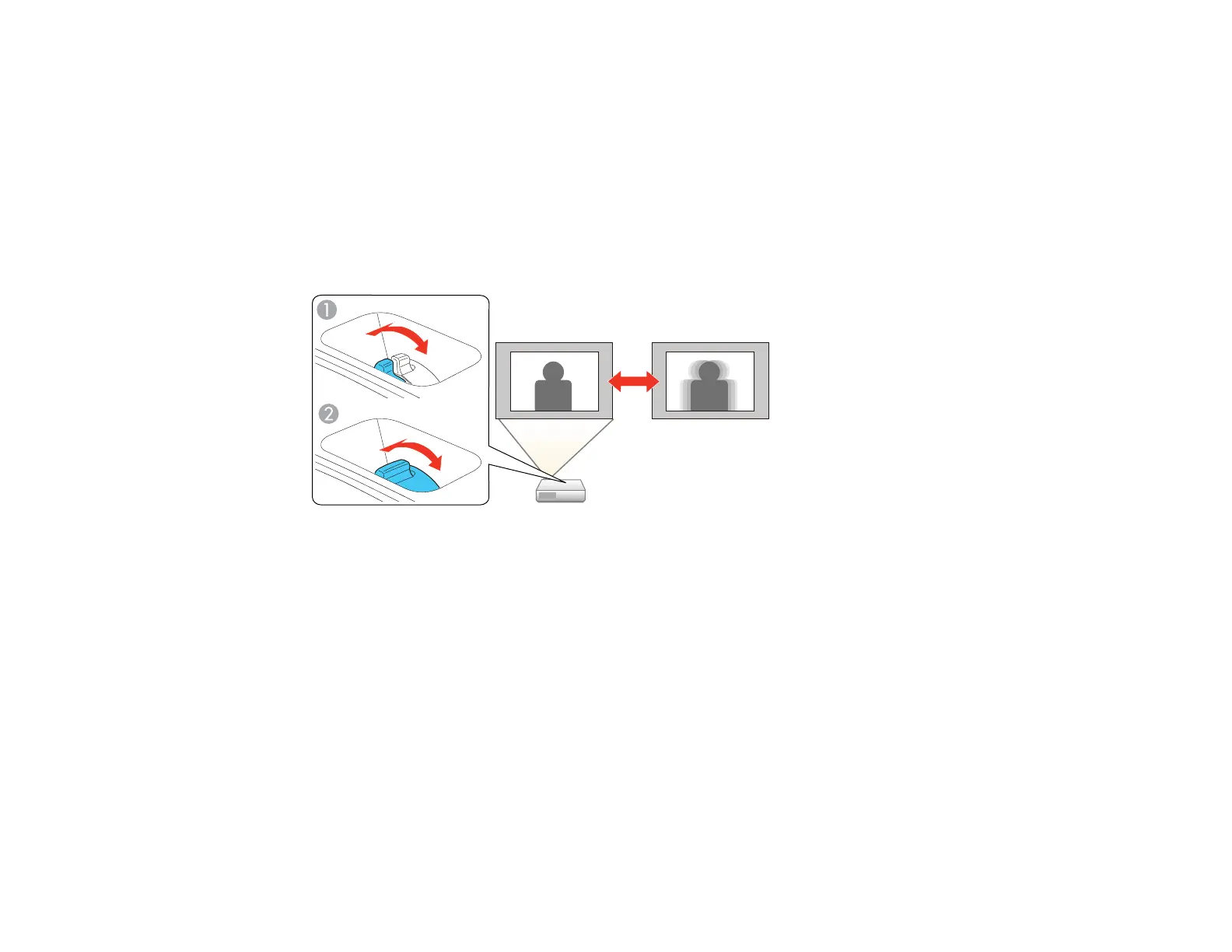

Focusing the Image Using the Focus Ring
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
2. To sharpen the image focus, rotate the projector’s focus ring.
1 EX5220/EX5230/EX6220/EX7220/VS330/VS335W
2 EX3220/VS230
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Remote Control Operation
The remote control lets you control the projector from almost anywhere in the room. You can point it at
the screen, or the front or back of the projector.
Make sure that you aim the remote control at the projector's receivers within the distance and angles
listed here.
71

Epson EX5230 Specifications

Projection Specifications

projection system	3LCD, 3-chip technology
projection method	Front/rear/ceiling mount
pixel number	786, 432 dots (1024 x 768) x 3

Brightness

color brightness	3500 lumens
white brightness	3500 lumens
contrast ratio	Up to 10, 000:1

Resolution

native resolution	1024 x 768 (XGA)
resize support	640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)
aspect ratio	4:3

Lamp

lamp type	200 W UHE
lamp life (ECO mode)	Up to 6000 hours
lamp life (normal mode)	Up to 5000 hours

Lens

f-number	1.58 – 1.72
focal length	16.9 – 20.28 mm
zoom ratio	Digital zoom 1.0 – 1.2

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption (normal mode)	283 W
power consumption (ECO mode)	207 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	37 dB
fan noise (ECO mode)	29 dB

Dimensions and Weight

dimensions (including feet)	11.6" x 9.0" x 3.1"
dimensions (excluding feet)	11.6" x 9.0" x 3.0"
weight	5.29 lb
