The projector displays the image from your computer's desktop and outputs sound, if your presentation
contains audio.
Parent topic: Connecting to Computer Sources
Related references
USB Display System Requirements
Related tasks
Connecting to a Computer for HDMI Video and Audio

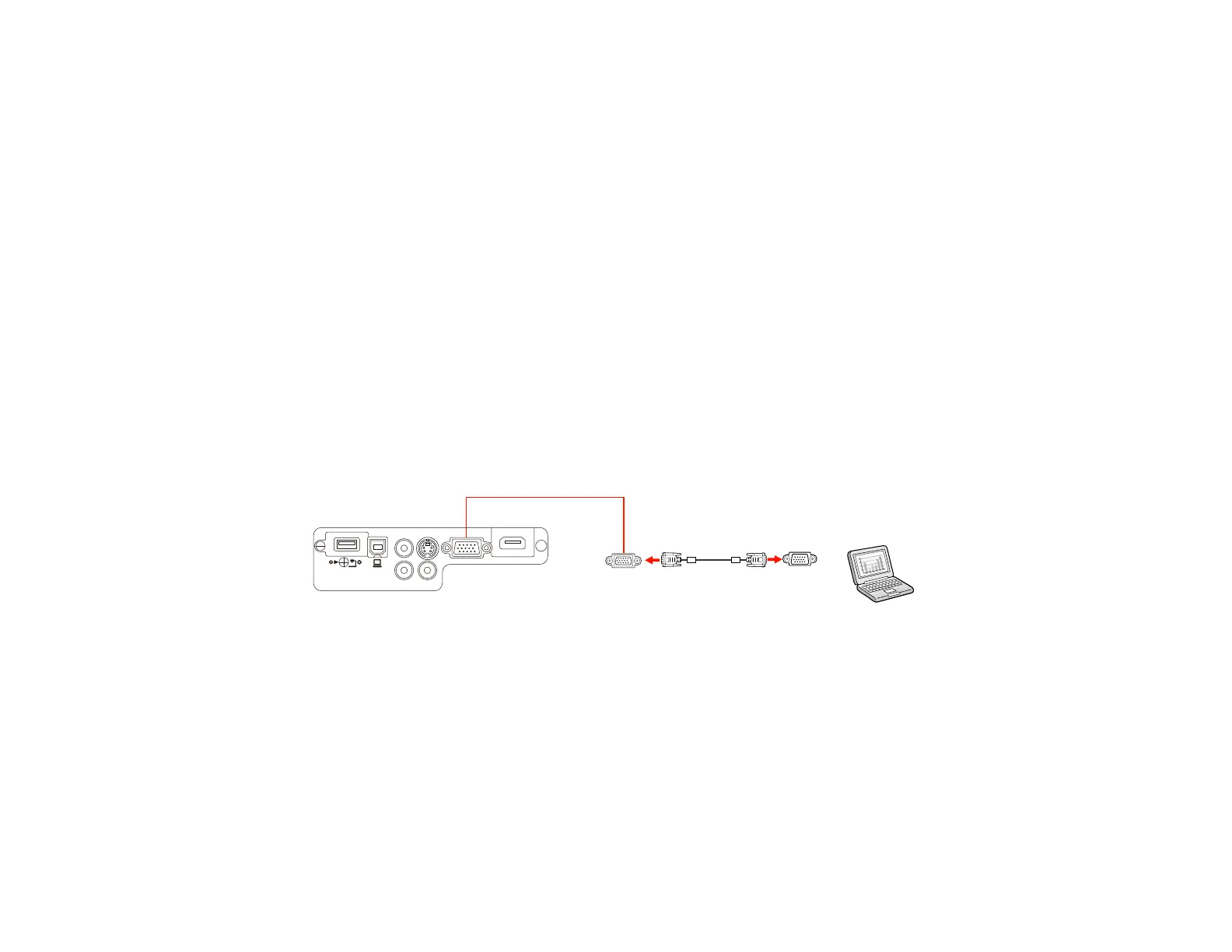

Connecting to a Computer for VGA Video
You can connect the projector to your computer using a VGA computer cable.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port.
Contact Apple for compatible adapter options.
1. If necessary, disconnect your computer's monitor cable.
2. Connect the VGA computer cable to your computer's monitor port.
3. Connect the other end to a Computer port on the projector.
4. Tighten the screws on the VGA connector.
Parent topic: Connecting to Computer Sources
Related tasks
Connecting to a Computer for Sound
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.
30

Table of Contents

Other manuals for Epson EX5230

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson EX5230 and is the answer not in the manual?

Epson EX5230 Specifications

Projection Specifications IconProjection Specifications
projection system3LCD, 3-chip technology
projection methodFront/rear/ceiling mount
pixel number786, 432 dots (1024 x 768) x 3
Brightness IconBrightness
color brightness3500 lumens
white brightness3500 lumens
contrast ratioUp to 10, 000:1
Resolution IconResolution
native resolution1024 x 768 (XGA)
resize support640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)
aspect ratio4:3
Lamp IconLamp
lamp type200 W UHE
lamp life (ECO mode)Up to 6000 hours
lamp life (normal mode)Up to 5000 hours
Lens IconLens
f-number1.58 – 1.72
focal length16.9 – 20.28 mm
zoom ratioDigital zoom 1.0 – 1.2
Power IconPower
power supply voltage100 – 240 V ±10%, 50/60 Hz
power consumption (normal mode)283 W
power consumption (ECO mode)207 W
Operating Environment IconOperating Environment
operating temperature41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)37 dB
fan noise (ECO mode)29 dB
Dimensions and Weight IconDimensions and Weight
dimensions (including feet)11.6" x 9.0" x 3.1"
dimensions (excluding feet)11.6" x 9.0" x 3.0"
weight5.29 lb
