Epson EX5230 User Manual

3. To change projection back to the original mode, hold down the A/V Mute button for five seconds
again.
Parent topic: Projection Modes
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the
projector menus.
1. Turn on the projector and display an image.
2. Press the Menu button.

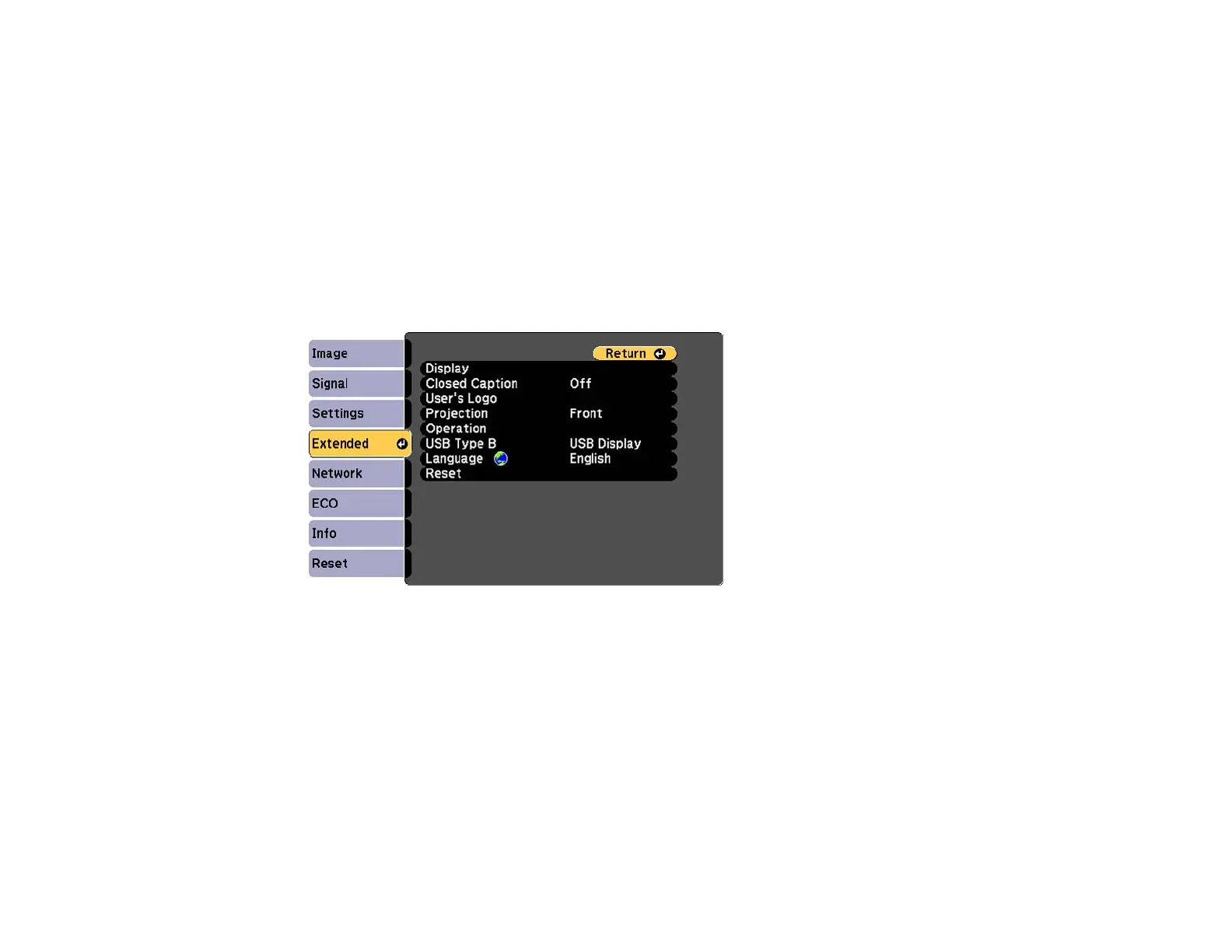

3. Select the Extended menu and press Enter.
4. Select the Projection setting and press Enter.
5. Select a projection mode and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Projection Modes
Image Aspect Ratio
The projector can display images in different width-to-height ratios called aspect ratios. Normally the
input signal from your video source determines the image's aspect ratio. However, for certain images
you can change the aspect ratio to fit your screen by pressing a button on the remote control.
77

Epson EX5230 Specifications

Projection Specifications

projection system	3LCD, 3-chip technology
projection method	Front/rear/ceiling mount
pixel number	786, 432 dots (1024 x 768) x 3

Brightness

color brightness	3500 lumens
white brightness	3500 lumens
contrast ratio	Up to 10, 000:1

Resolution

native resolution	1024 x 768 (XGA)
resize support	640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)
aspect ratio	4:3

Lamp

lamp type	200 W UHE
lamp life (ECO mode)	Up to 6000 hours
lamp life (normal mode)	Up to 5000 hours

Lens

f-number	1.58 – 1.72
focal length	16.9 – 20.28 mm
zoom ratio	Digital zoom 1.0 – 1.2

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption (normal mode)	283 W
power consumption (ECO mode)	207 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	37 dB
fan noise (ECO mode)	29 dB

Dimensions and Weight

dimensions (including feet)	11.6" x 9.0" x 3.1"
dimensions (excluding feet)	11.6" x 9.0" x 3.0"
weight	5.29 lb
