Epson EX5230 User Manual

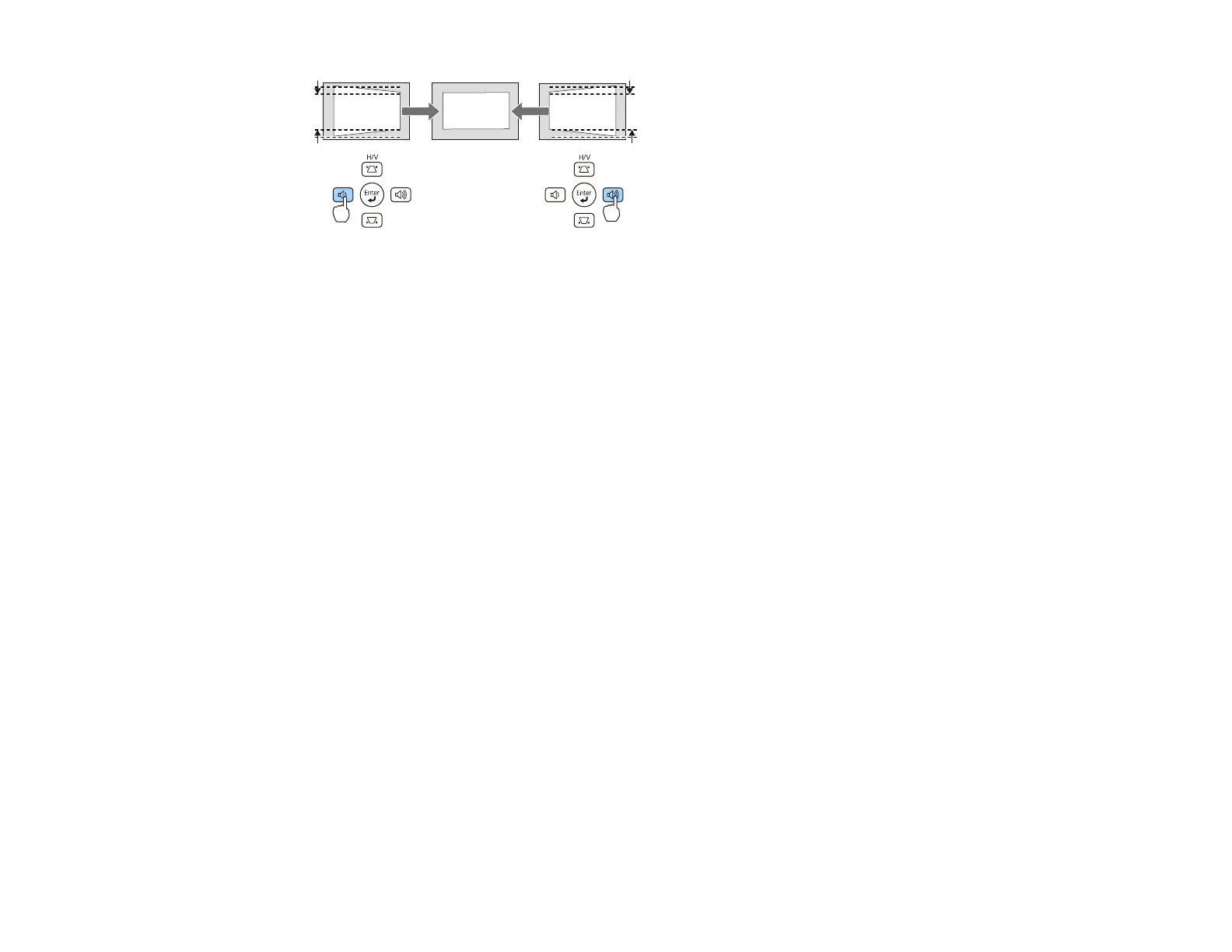

Note: The horizontal keystone adjustment buttons are labeled Wide and Tele on the
EX3220/VS230.
After correction, your image is slightly smaller.
Note: If the projector is installed out of reach, you can also correct the image shape with the remote
control using the Keystone settings in the projector menus.
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
Correcting Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size of an image that is
unevenly rectangular on all sides.
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
2. Press the Menu button.
68

Epson EX5230 Specifications

Projection Specifications

projection system	3LCD, 3-chip technology
projection method	Front/rear/ceiling mount
pixel number	786, 432 dots (1024 x 768) x 3

Brightness

color brightness	3500 lumens
white brightness	3500 lumens
contrast ratio	Up to 10, 000:1

Resolution

native resolution	1024 x 768 (XGA)
resize support	640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)
aspect ratio	4:3

Lamp

lamp type	200 W UHE
lamp life (ECO mode)	Up to 6000 hours
lamp life (normal mode)	Up to 5000 hours

Lens

f-number	1.58 – 1.72
focal length	16.9 – 20.28 mm
zoom ratio	Digital zoom 1.0 – 1.2

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption (normal mode)	283 W
power consumption (ECO mode)	207 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	37 dB
fan noise (ECO mode)	29 dB

Dimensions and Weight

dimensions (including feet)	11.6" x 9.0" x 3.1"
dimensions (excluding feet)	11.6" x 9.0" x 3.0"
weight	5.29 lb
