Epson EX5230 User Manual

Setting Up Projector Network E-Mail Alerts
You can set up the projector to send you an e-mail alert over the network if there is a problem with the
projector.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.

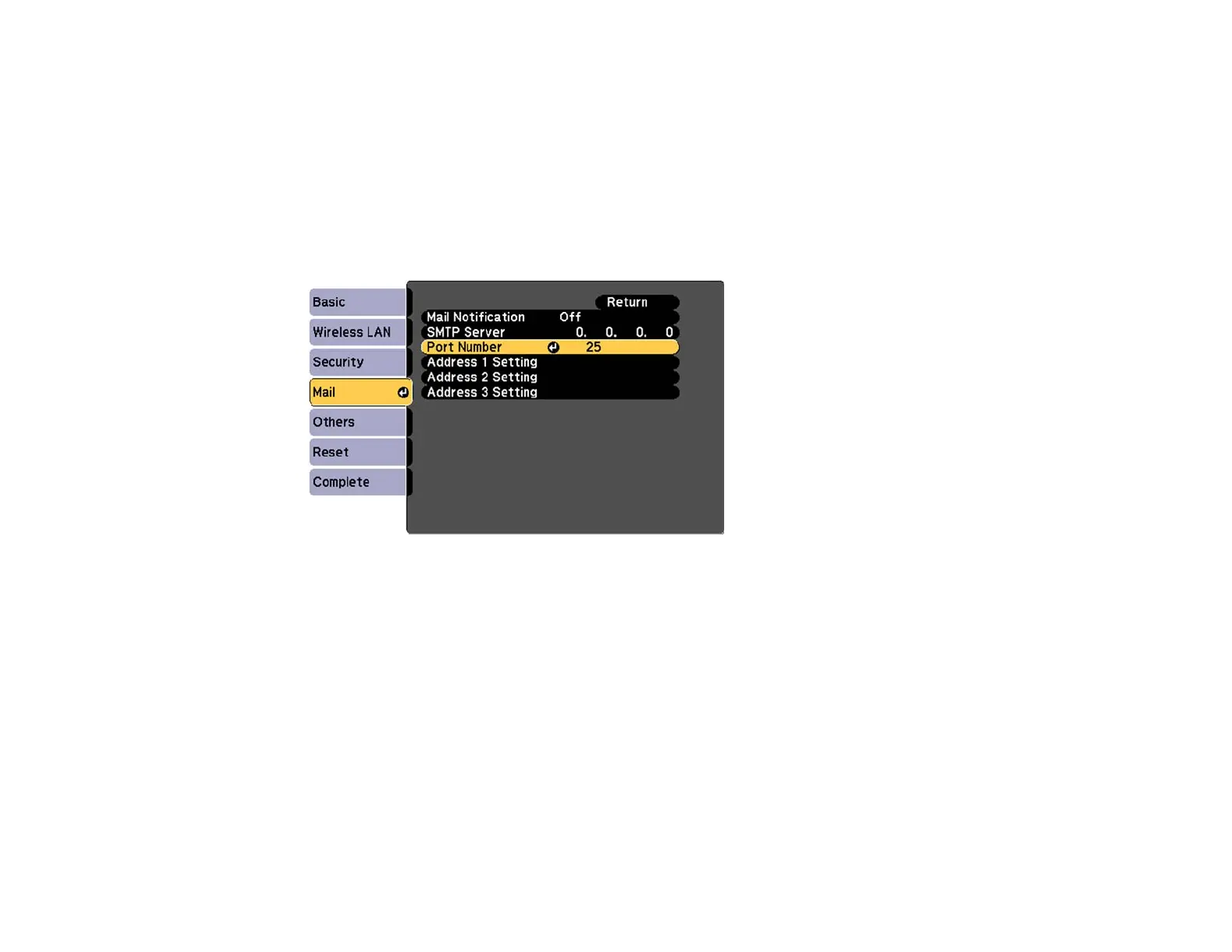

4. Select the Mail menu and press Enter.
5. Turn on Mail Notification.
6. Enter the IP address for the SMTP Server option.
Note: To enter the IP address using the numeric keys on the remote control, press and hold the
Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x
is a number from 0 to 255).
7. Select a number for the SMTP server Port Number, from 1 to 65535 (default is 25).
8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there.
Repeat for up to three addresses.
Note: Your e-mail address can be up to 32 alphanumeric characters long.
54

Epson EX5230 Specifications

Projection Specifications

projection system	3LCD, 3-chip technology
projection method	Front/rear/ceiling mount
pixel number	786, 432 dots (1024 x 768) x 3

Brightness

color brightness	3500 lumens
white brightness	3500 lumens
contrast ratio	Up to 10, 000:1

Resolution

native resolution	1024 x 768 (XGA)
resize support	640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)
aspect ratio	4:3

Lamp

lamp type	200 W UHE
lamp life (ECO mode)	Up to 6000 hours
lamp life (normal mode)	Up to 5000 hours

Lens

f-number	1.58 – 1.72
focal length	16.9 – 20.28 mm
zoom ratio	Digital zoom 1.0 – 1.2

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption (normal mode)	283 W
power consumption (ECO mode)	207 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	37 dB
fan noise (ECO mode)	29 dB

Dimensions and Weight

dimensions (including feet)	11.6" x 9.0" x 3.1"
dimensions (excluding feet)	11.6" x 9.0" x 3.0"
weight	5.29 lb
