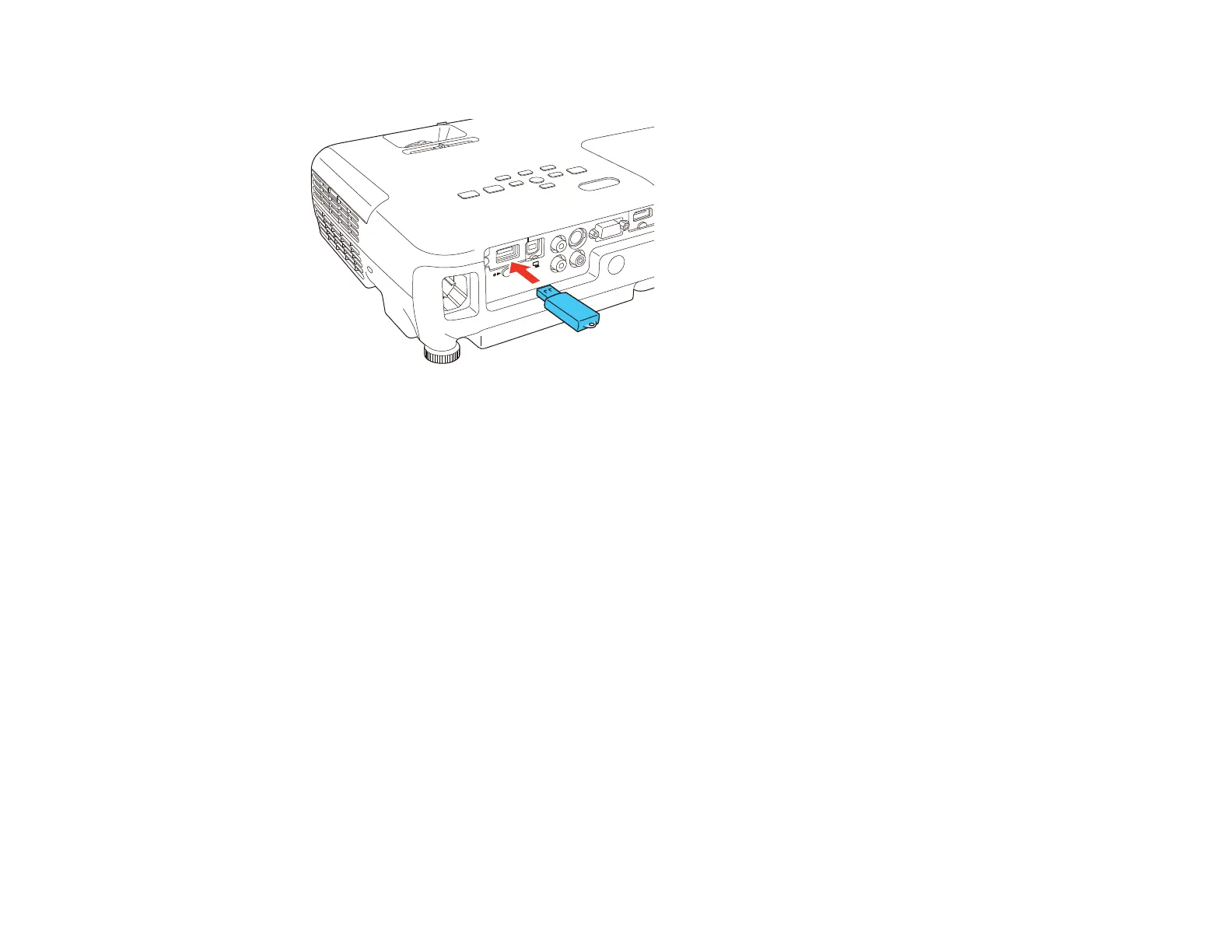

4. Insert the Quick Wireless Connection USB key into the same port used for the wireless LAN module.
You see a projected message that the network information update is complete.
5. Remove the USB key.
6. Reinsert the wireless LAN module into the projector.
7. Now connect the USB key to a USB port on your computer or notebook.
Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchQWRD.exe, then
select Allow on the next screen.
8. Follow the on-screen instructions to install the Quick Wireless Connection driver.
Note: If you see a Windows Firewall message, click Yes to disable the firewall.
After a few minutes, your computer image is displayed by the projector. If it does not appear, press
the LAN button on your projector remote control or restart your computer.
9. Run your presentation as necessary.
10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows
taskbar, then remove the USB key from your computer.
Note: You may need to restart your computer to reactivate your wireless LAN connection.
46

Table of Contents

Other manuals for Epson EX5230

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson EX5230 and is the answer not in the manual?

Epson EX5230 Specifications

Projection Specifications IconProjection Specifications
projection system3LCD, 3-chip technology
projection methodFront/rear/ceiling mount
pixel number786, 432 dots (1024 x 768) x 3
Brightness IconBrightness
color brightness3500 lumens
white brightness3500 lumens
contrast ratioUp to 10, 000:1
Resolution IconResolution
native resolution1024 x 768 (XGA)
resize support640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)
aspect ratio4:3
Lamp IconLamp
lamp type200 W UHE
lamp life (ECO mode)Up to 6000 hours
lamp life (normal mode)Up to 5000 hours
Lens IconLens
f-number1.58 – 1.72
focal length16.9 – 20.28 mm
zoom ratioDigital zoom 1.0 – 1.2
Power IconPower
power supply voltage100 – 240 V ±10%, 50/60 Hz
power consumption (normal mode)283 W
power consumption (ECO mode)207 W
Operating Environment IconOperating Environment
operating temperature41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)37 dB
fan noise (ECO mode)29 dB
Dimensions and Weight IconDimensions and Weight
dimensions (including feet)11.6" x 9.0" x 3.1"
dimensions (excluding feet)11.6" x 9.0" x 3.0"
weight5.29 lb
