Epson Expression 10000XL Setup Guide

16 Setting Up the Scanner
Connecting the scanner using an IEEE 1394
interface cable
Note:
❏ IEEE 1394 interface connection is not supported by Windows 98.
❏ Prepare an IEEE 1394 interface cable before performing this
operation.

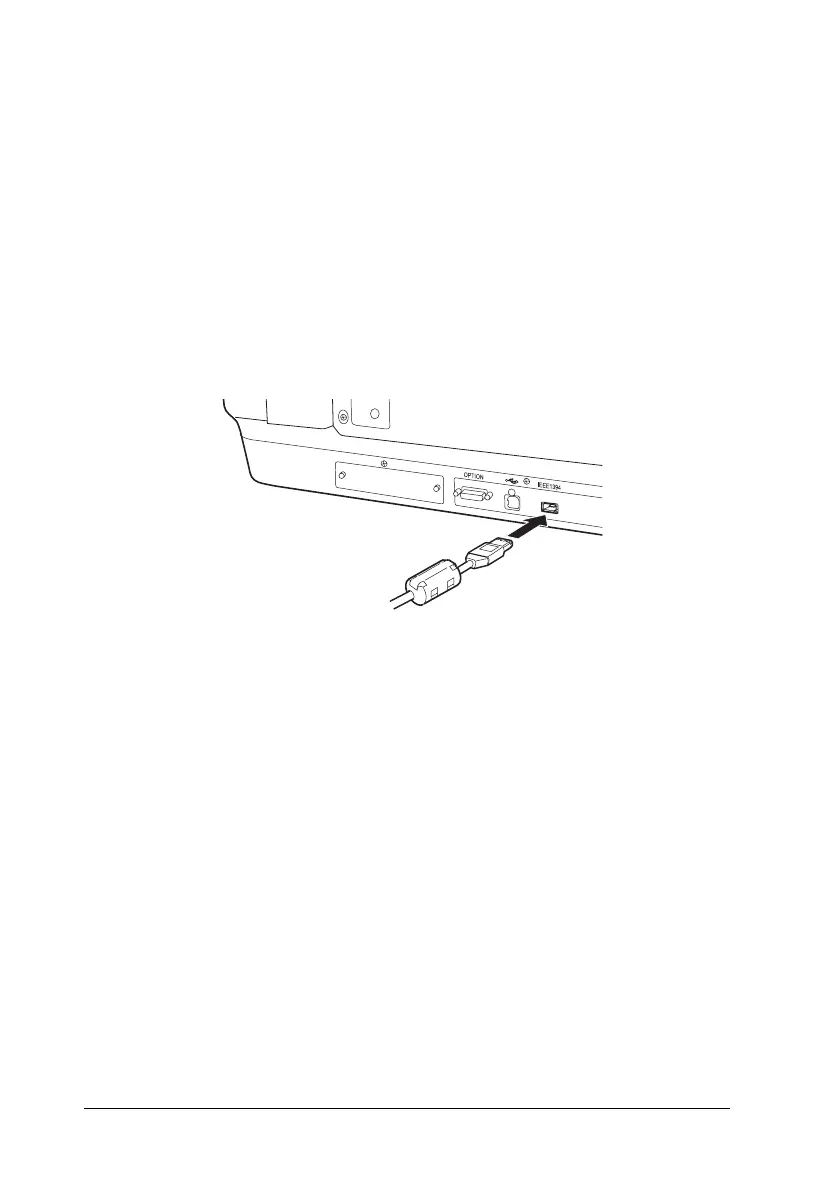

1. Connect one end of an IEEE 1394 interface cable to the IEEE
1394 port on the back of the scanner.
2. Connect the other end of the cable to the IEEE 1394 port on
your computer, or another IEEE 1394 device.
If there are already IEEE 1394 devices connected to your
computer, connect the scanner so that it is the last IEEE 1394
device in the daisy chain.
Note:
Basically, use an IEEE 1394 interface cable that comes with 2 six-pin
connectors at each end. If IEEE 1394 devices with four-pin connectors
are used in a daisy chain or tree, you need to use a 6:4 converter cable.

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
