Epson Expression 10000XL Setup Guide

30 Options
Installing the Network Image Express Card
Install the Network Image Express Card in your scanner by
following the steps below.
1. Turn off the scanner. Unplug any power cords, and then
disconnect all cables from the back panel of your scanner.
2. Remove the two screws using a cross-head screwdriver, and
then remove the plate. Be sure to keep both screws; you may
need to use them again if you re-install the shield plate.

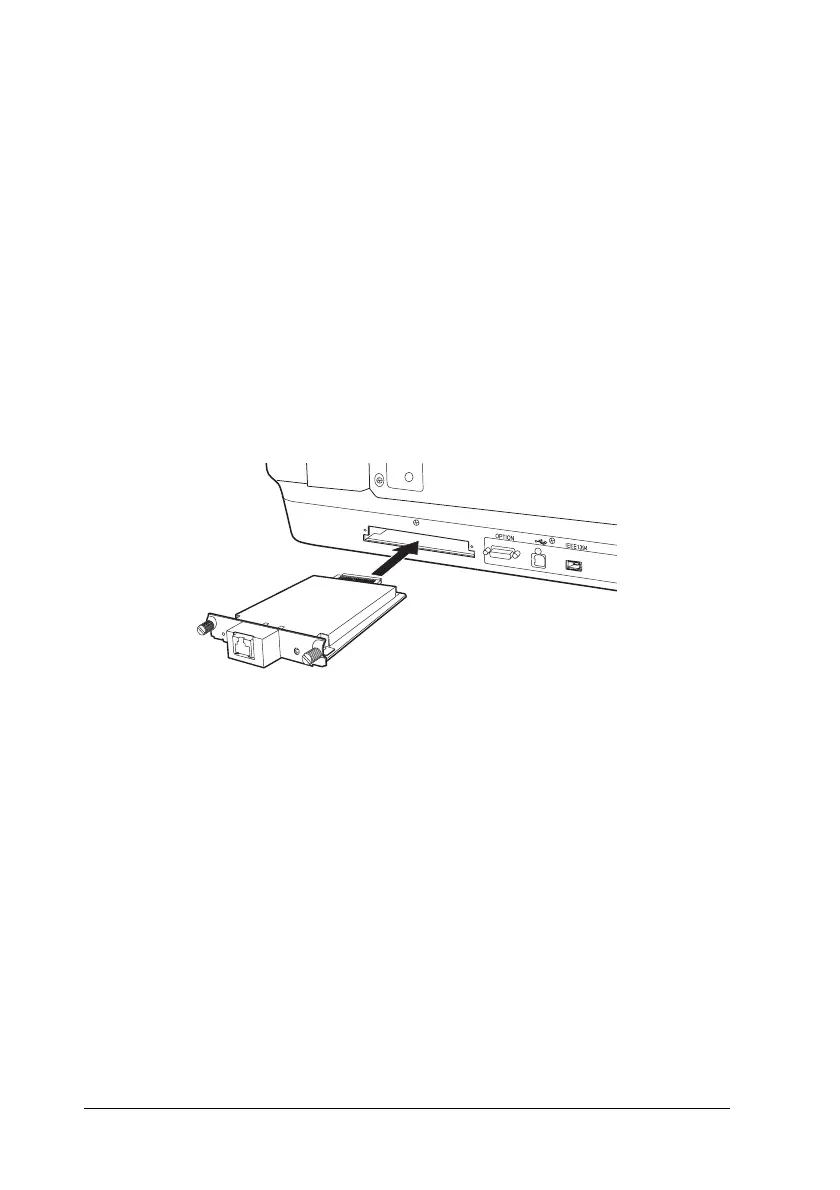

3. Insert the Network Image Express Card in your scanner’s
optional interface slot and then tighten the screws.
c
Caution:
Do not install or uninstall the Network Image Express Card
from the scanner while the scanner is turned on; otherwise
damage may occur.
4. Initialize the Network Image Express Card. To initialize, turn
on the scanner while holding down the Reset button of the
Network Image Express Card for 10 seconds until the red
status light and green data light turn on.
Note:
Be sure to initialize the Network Image Express Card when you
insert or re-insert it in the scanner.
5. Turn off the scanner.

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
