Epson G10 Series - Cleanroom-model G10;G20-***CR

Setup & Operation 2. Specifications
G10 / G20 Rev.2 19

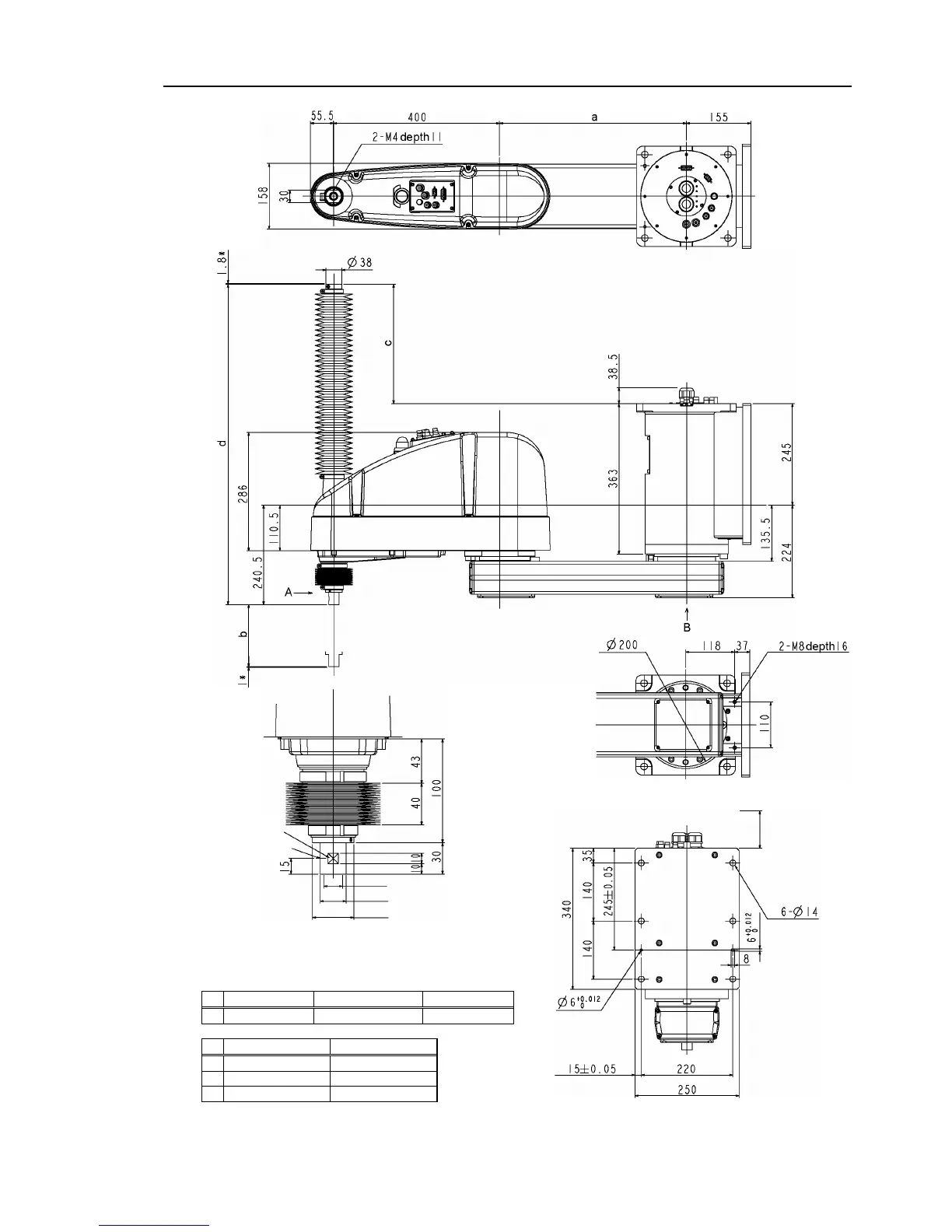

Reference hole
(Tolerance applies
to the pin hole)
Conical hole ø4,90°
1 mm flat cut
Max.ø18 through hole
ø25 h7 shaft diameter
90 or more
Space for cables
(*) indicates the stroke margin by mechanical stop.
Detail of “A”
(
Calibration
p
oint
p
osition of Joints #3 and #4
)
Reference through hole
(View from the bottom of the base)
ø39.5 mechanical stop diameter
Detail of “B”
G10-65*CW G10/G20-85*CW G20-A0*CW
a 250 450 600
G10/G20-**1CW G10/G20-**4CW
b 150 390
c 29.5 288.5
d 515 774
