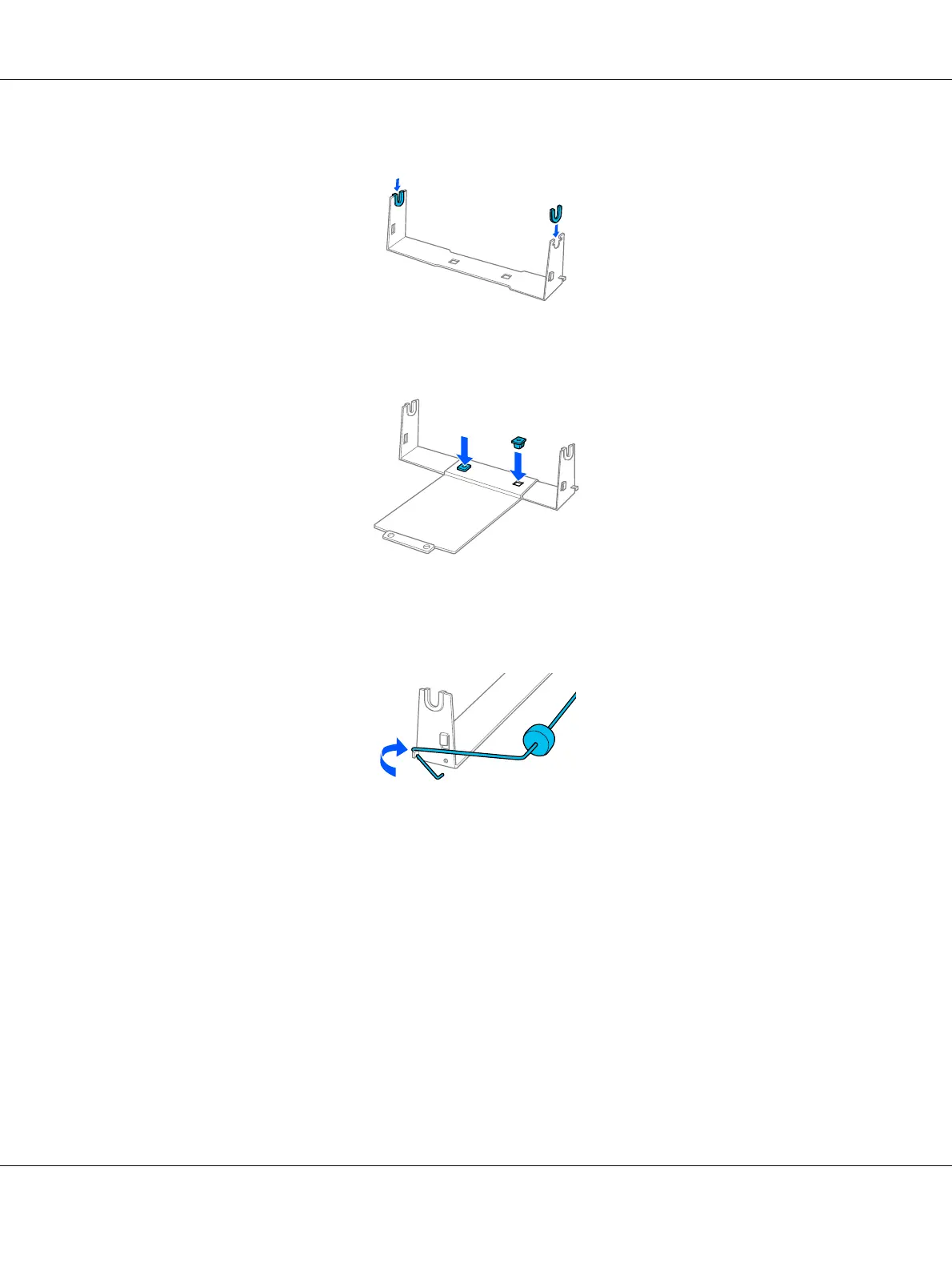

1. Fit the arc bearings into the stand as shown.
2. Place the base plate on the stand and fasten the two together with the plastic spacing clips.
Make sure you orient the stand and base plate as shown below.
3. Hook the tension lever onto both ends of the stand as shown below. While pulling up on the
tension lever, fit the wire ends of the tension lever into the holes in the stand. The roll paper
holder is assembled.
Installing the roll paper holder
Follow these steps to install the roll paper holder on your printer:
1. Make sure the printer is turned off.
