Chapter 3
The Tractor Unit
The tractor unit for the LQ is easy to install and use. Before you
begin the installation, make sure you have received the following:
l The tractor unit
l The smoke-colored tractor cover
l The narrow front lid
l The paper separator
l The paper shelf
Setting Up the LQ for Continuous-feed Paper
Before installing the tractor unit, you should set up your LQ so that
continuous-feed paper can flow freely in and out of the printer.
Use any arrangement that allows you to put the paper underneath or
behind the printer. There are many types of printer stands you can use;
one example is shown in Figure 3-1. If you prefer, you can stack the paper
behind the printer as shown in Figure 3-2.

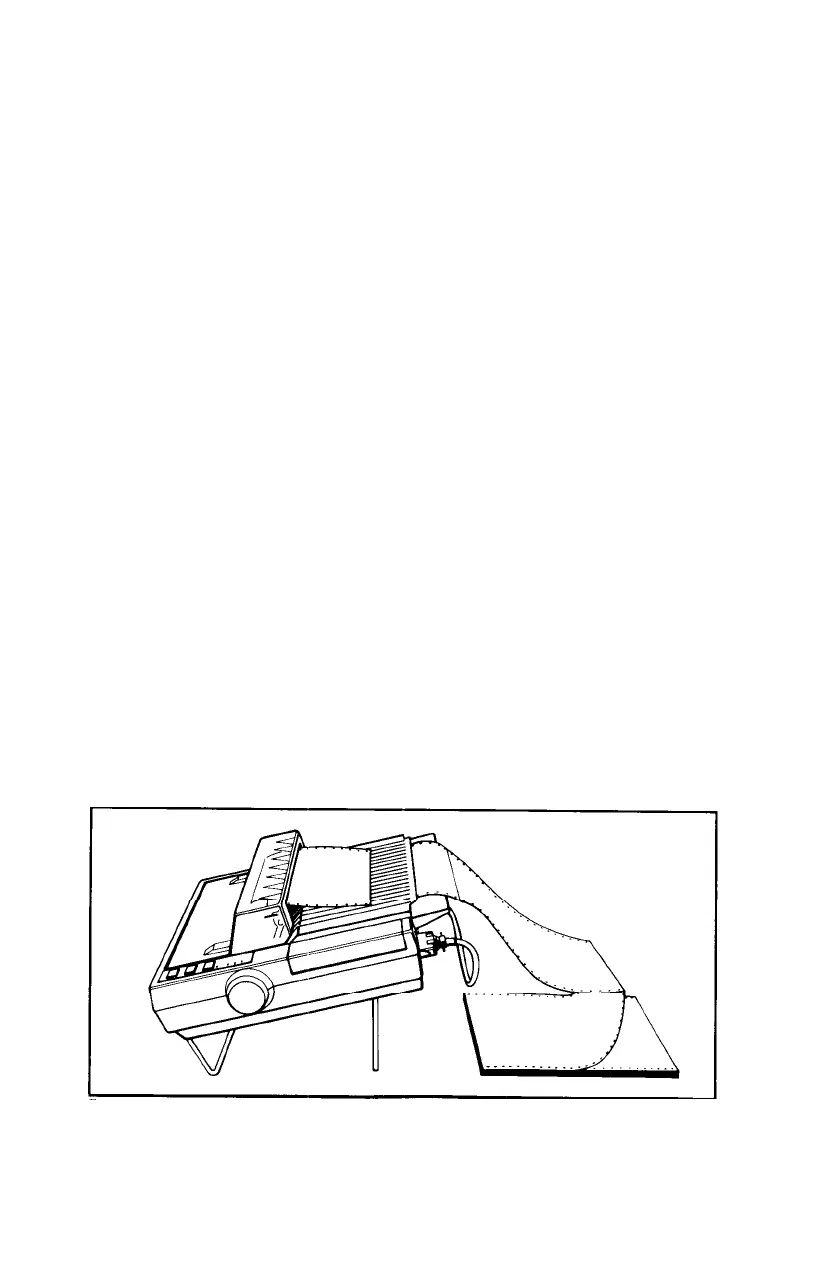

Figure 3-1. Continuous-feed paper with printer stand
3-1
