Epson PX-8 Technical Manual

REV.-A

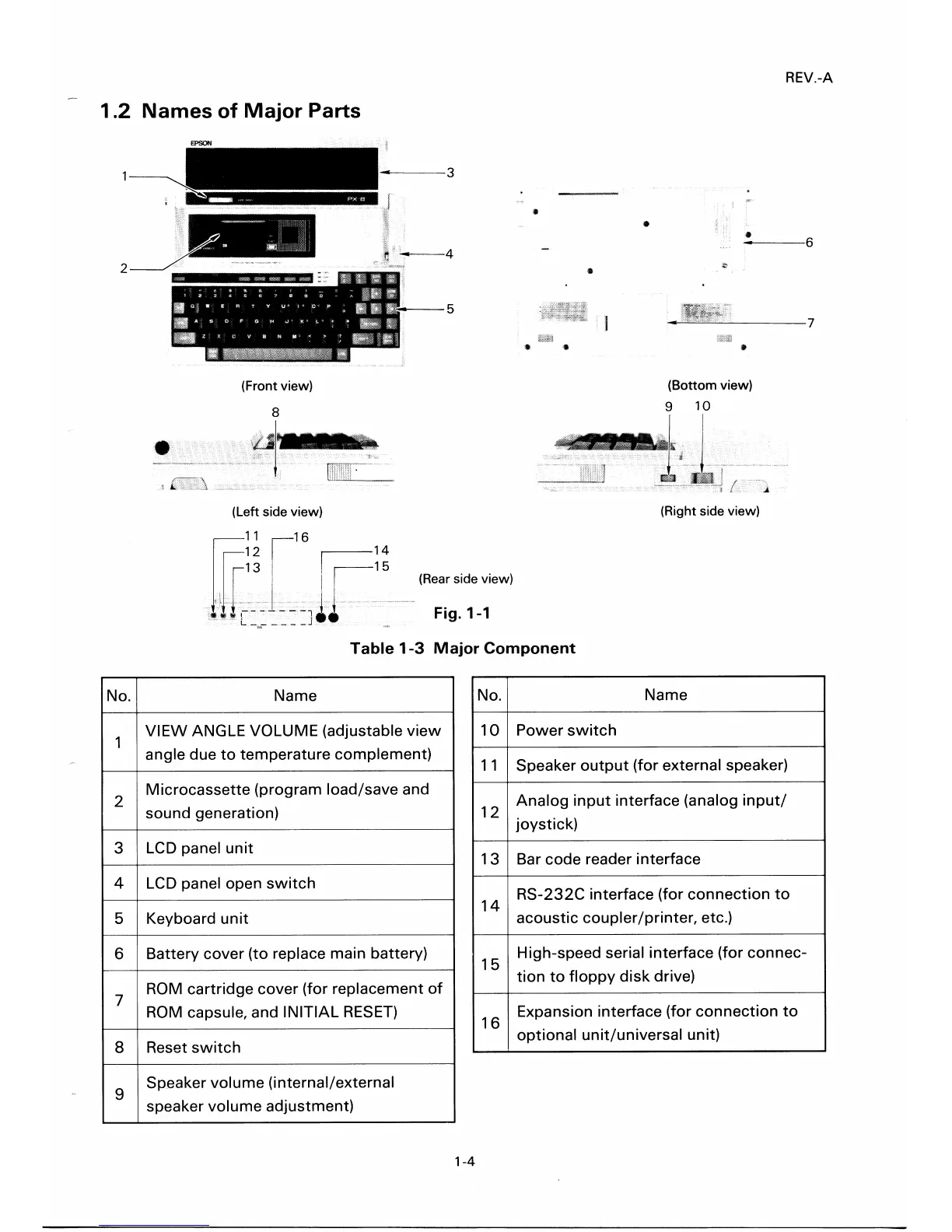

1.2 Names of Major Parts
2
•
(Front view)
(Bottom view)
8
•
9 10
pi" •• ni
(Left side view) (Right side view)
(Rear side view)
Fig. 1-1
Table 1-3 Major Component
No. Name No. Name
1
VIEW ANGLE VOLUME (adjustable view 10 Power switch
angle due to temperature complement)
11 Speaker output (for external speaker)
2
Microcassette (program load/save and
sound generation)
12
Analog input interface (analog input/
joystick)
3
LCD panel
unit
13 Bar code reader interface
4 LCD panel open
switch
5 Keyboard unit
14
RS-232C interface (for connection to
acoustic coupler/printer, etc.)
6
Battery
cover (to replace main battery)
7
ROM cartridge cover (for replacement of
ROM capsule, and INITIAL RESET)
8 Reset switch
15
High-speed serial interface (for connec-
tion to floppy disk drive)
16
Expansion interface (for connection to
optional unit/universal unit)
9
Speaker volume (internal/external
speaker
volume adjustment)
1-4
