Disassembly/Reassembly Overview 13
SC-P600 Revision D
Securing the CR Unit (tape length: 220
±
2 mm, tape width: 18 mm, fold one end by 5 mm)
Secure the CR Unit with strong tape as follows.
1. Open the printer cover and move the CR Unit to its home position.
2. Attach the unfolded end of strong tape on the CR Unit, and pull the tape and apply it along the shapes of
the Upper Housing Assy to the right side of the printer to secure the CR Unit.

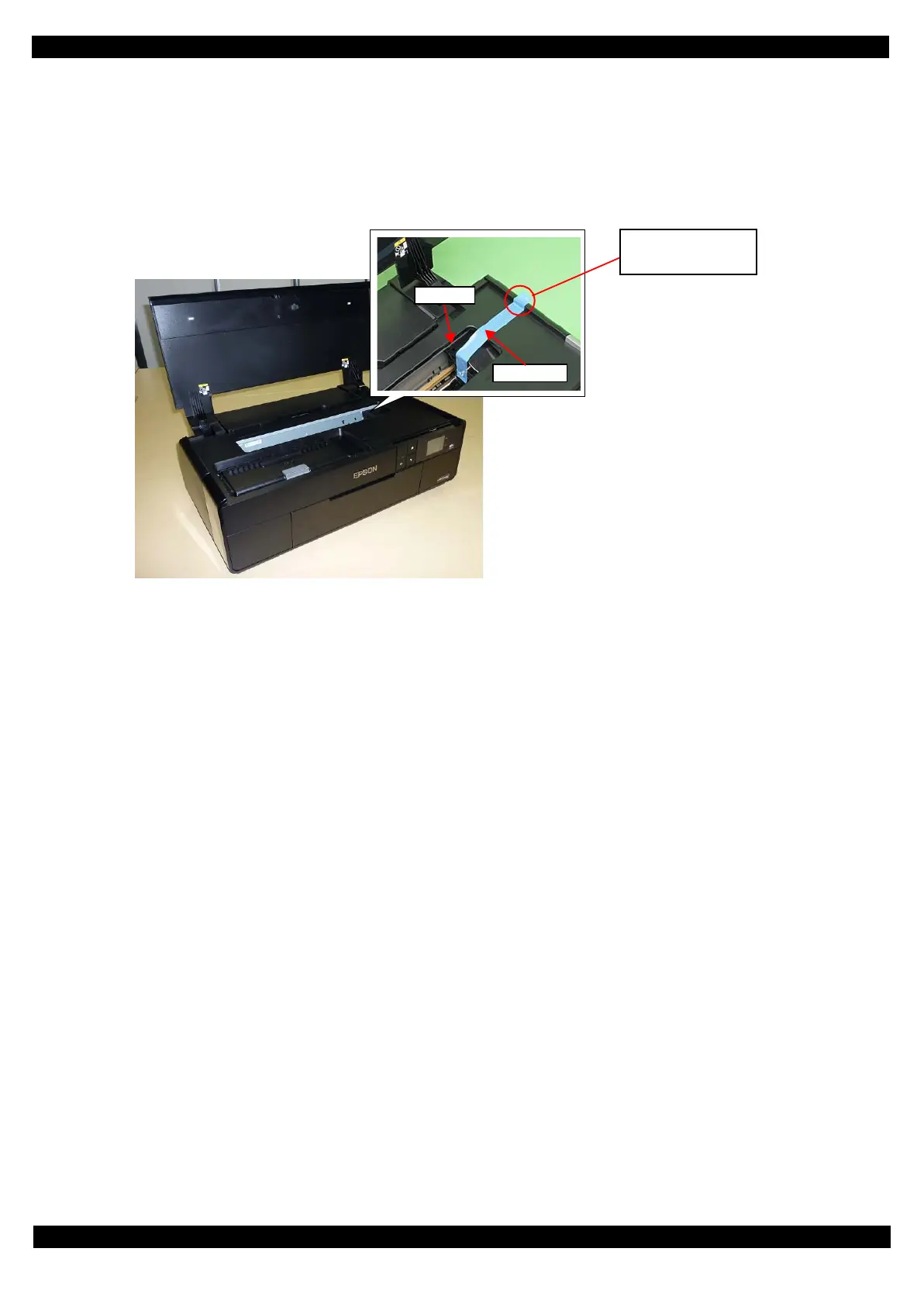

Figure 1-5. Securing the CR Unit
Attach strong tape with
its unfolded end sticking
out of the printer.
To Next Page
