2.3.8 Colorimetric Calibration
2.3.8.1 Overview of the Colorimetric Calibration
Purpose
It can make revision values which adjust printing color of user’s printer and SEC standard unit equally.
The following parts have an influence on ink discharge, therefore revision is necessary after part exchange.
• Print Head
• Main Board
• Power Board
This revision values are applied to the EPSON genuine printer driver.
Tools
Table 2-5. Tools for Colorimetric Calibration
*1
) The Service Mode cannot select “Premium Photo Paper Glossy” and “Premium Glossy Photo Paper” which you can use for PK ink by
the User Mode.
*2
) It is downloaded automatically if connected to the network when a PC starts EPSON ColorBase2.
*3
) The Service Mode cannot select i1iO, i1iSis, ColorMunki which you can use by the User Mode.

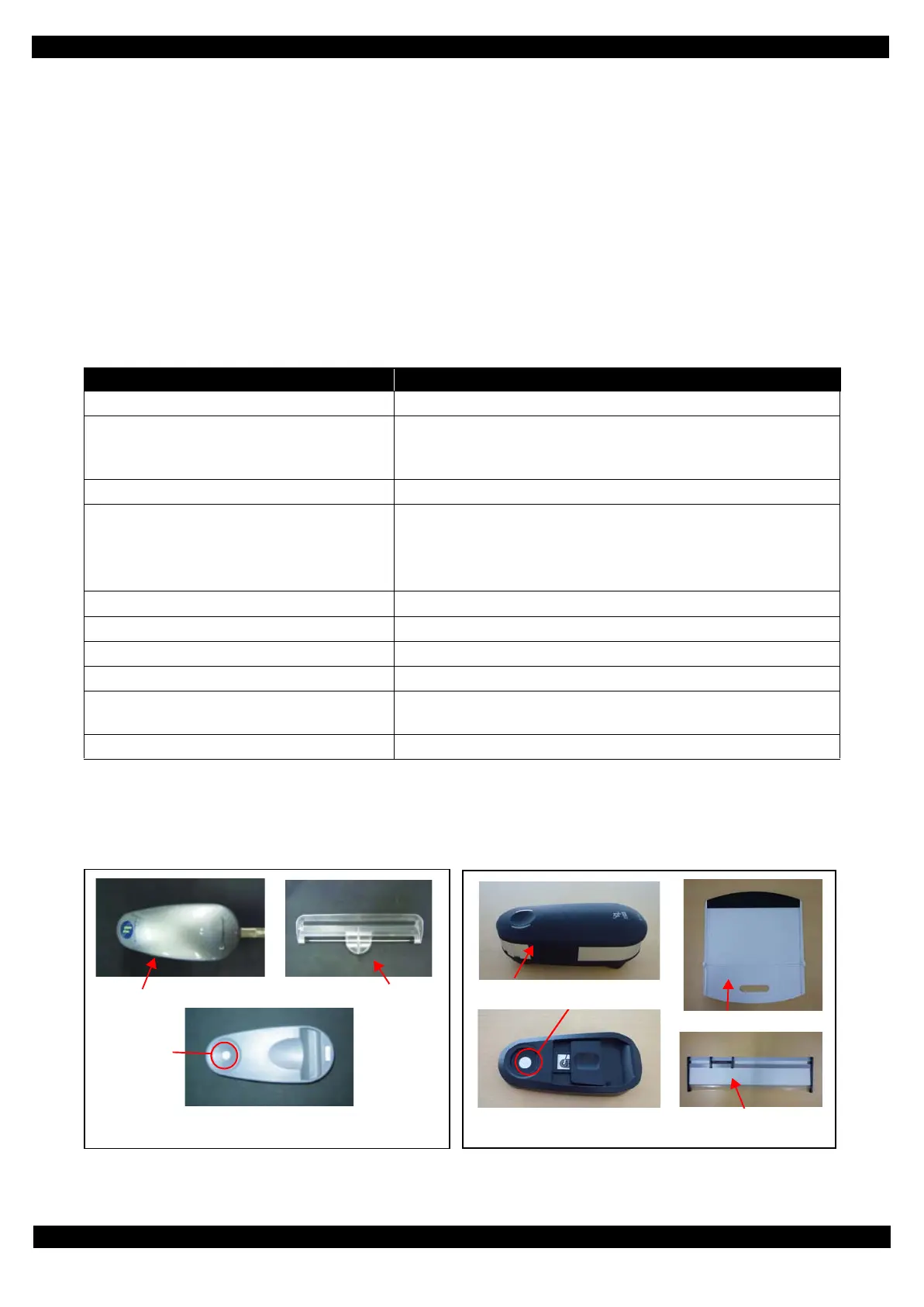

Figure 2-26. Calibrator and accessories
Tools Purpose / Specification
Plain paper (A4/Letter) For checking the nozzles.
Ultra Premium Presentation Paper Matte
Enhanced Matte Paper, Archival Matte Paper
(A4/Letter)
*1
For printing the calibration chart.
Colorimetric Calibration application EPSON ColorBase2 (application for user)
PC
OS: refer to Table 2-6.
The following files must be installed on the PC:
-
Printer driver for the model to be adjusted
- Adobe AIR Runtime
*2
Calibrator
*3
X-Rite i1Pro (with UV filter) or i1Pro2
White reference tile Accessory of calibrator
Scanning ruler Accessory of calibrator
Backing board Accessory of calibrator
Premium Glossy Photo Paper
For using as a background of the color chart during scanning (only
when a backing board is not attached to calibrator).
Two USB cables For connecting printer and calibrator to PC with two USB cables.
Calibrator
Scanning ruler
i1Pro calibrator / accessories
White
reference tile
Calibrator
Backing board
White reference tile
i1Pro2 calibrator / accessories
Scanning ruler
To Next Page
