Epson SC-P600 Service Manual

SE Group Confidential (Related Staff Only)
Adjustment Details of Adjustments 40
SC-P600 Revision D
2.3.2 PF Roller Shaft Center Support Position Adjustment
This section describes PF Roller Shaft Center Support Position Adjustment.
This adjustment must be performed to compensate the deflection amount on the PF Roller Shaft and to maintain
an appropriate paper feed amount.
 Tools

PF Roller Adjustment Jig
 PF Roller Adjustment Jig Stand
 Level Block (When there isn’t PF Roller Adjustment Jig Stand)

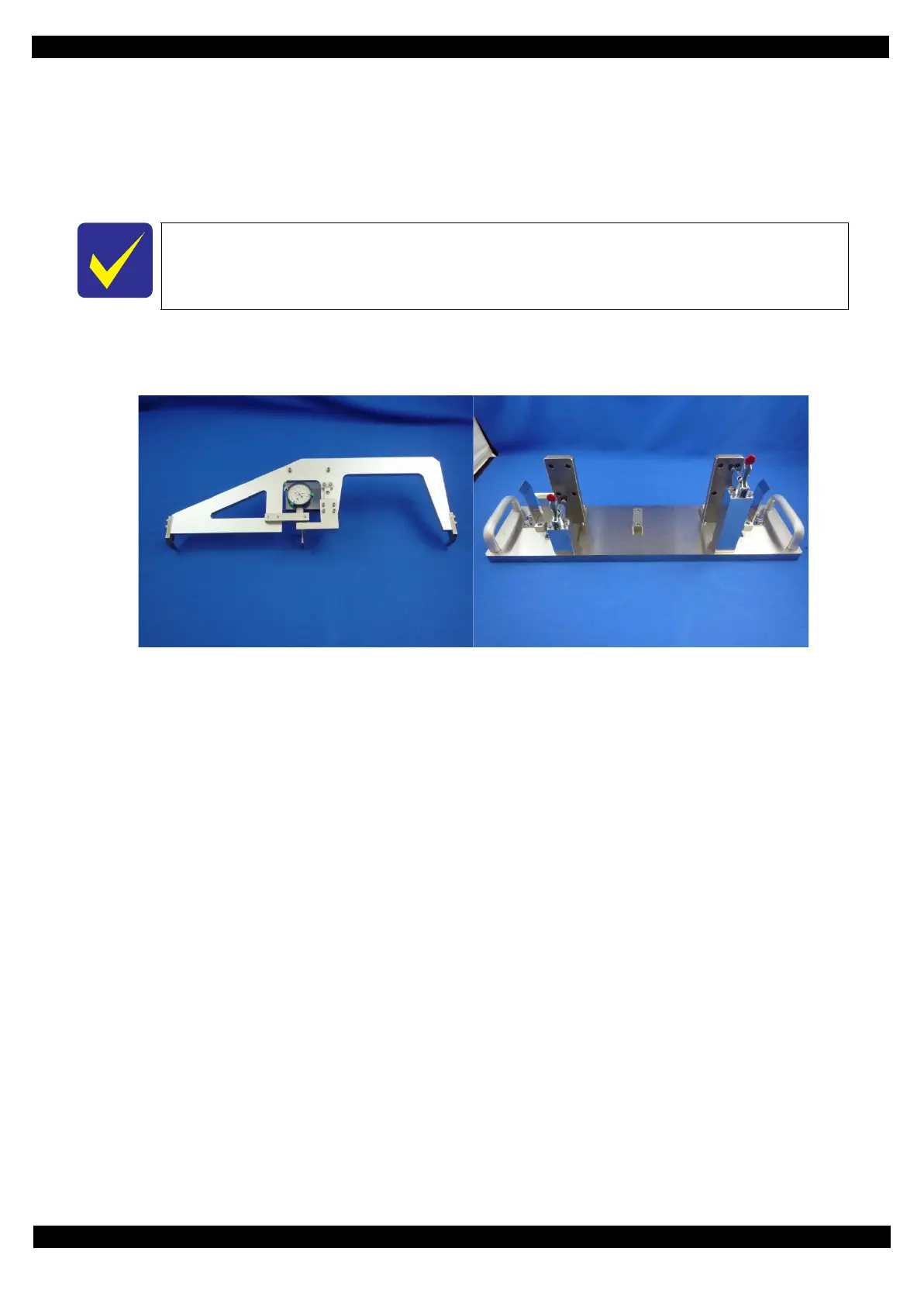

Figure 2-2. PF Roller Adjustment Jig and PF Roller Adjustment Jig Stand
 Adjustment procedure
1. Install the PF Roller, and reassemble the unit up to the APG Assy.
(See "1-4 Disassembly Flowchart of Printer Mechanism Part (3) (p18)" for details.)
A substitute level block can be used if its surface accuracy is within 50 μ.

Epson SC-P600 Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 dpi
Number of Ink Colors	9
Ink Cartridge Configuration	Individual cartridges
Connectivity	USB 2.0, Ethernet, Wi-Fi
Ink Colors	Cyan, Magenta, Yellow, Gray
Max Print Size	13" x 19"
Media Handling	Sheet feed, roll paper
Paper Sizes	A4, A3, 13" x 19", 4" x 6", 5" x 7", 8" x 10"
Borderless Printing	Yes
Display	2.7" Color LCD
Weight	35.3 lb (16 kg)
Ink Type	UltraChrome HD
