Epson SC-P600 Service Manual

SC-P600 Revision D
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 19
SE Group Confidential (Related Staff Only)

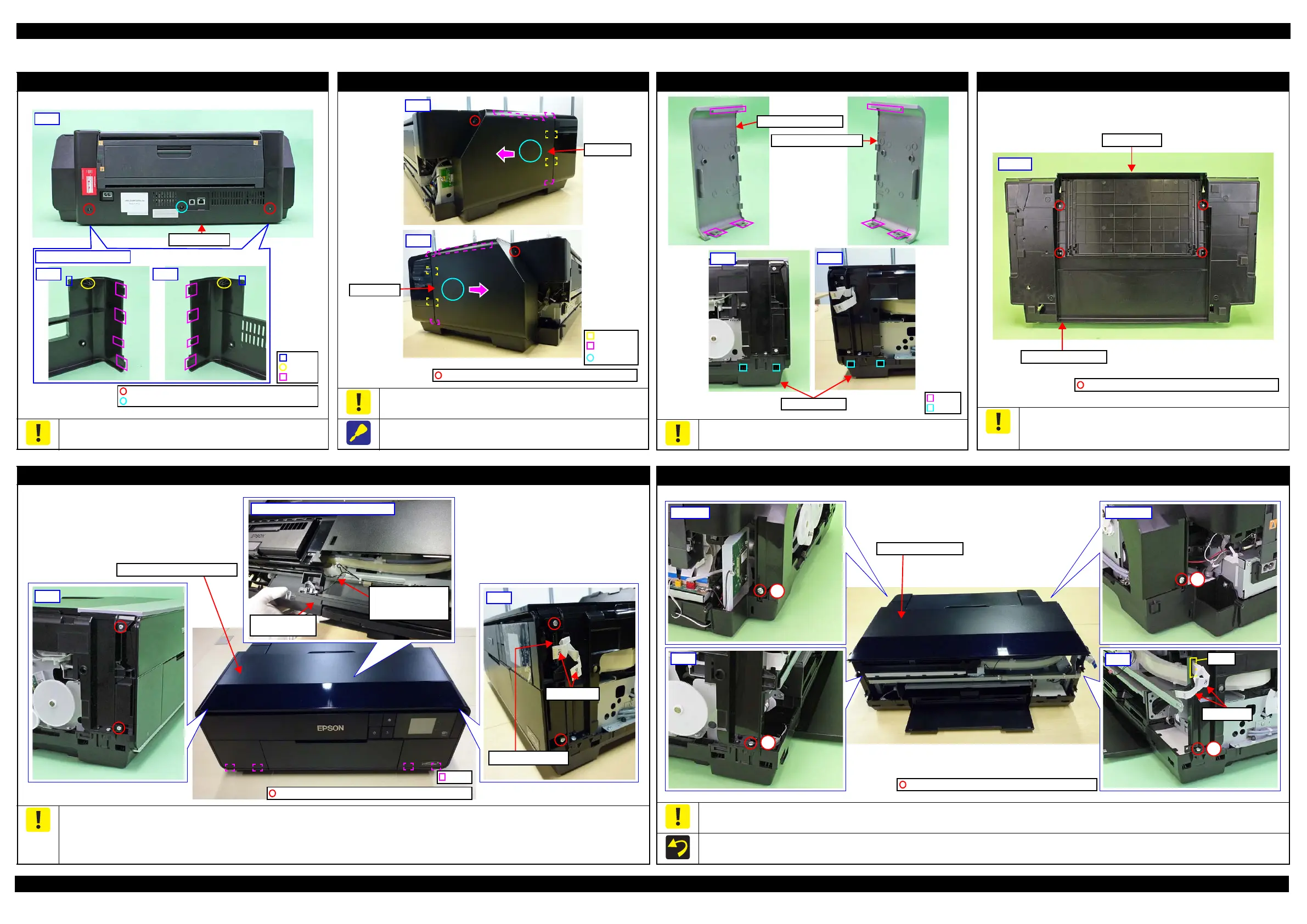

1.3 Detailed Disassembly/Reassembly Procedure for each Part/Unit
Rear Housing
Be careful not to damage the hooks (x2), dowels (x2) and ribs (x8)
that secure the Rear Housing.
Rear Housing
Left Right
Rear
C.B.S-TITE SCREW,3X6,F/ZN-3C (6 ± 1 kgf·cm)
C.B.P-TITE SCREW,3X8,F/ZB-3C (6 ± 1 kgf·cm)
Back of Rear Housing
Dowel
Rib
Hook
Left / Right Cover
Remove the Left/Right Cover carefully not to damage the hooks
(x2 each) and ribs (x3 each) that secure the Left/Right Cover.
When removing the Left/Right Cover, slide it in the direction of the
arrow shown above while slightly pushing the section A.
Rib
Hook
Section A
Left Cover
Right
Left
Right Cover
C.B.P-TITE SCREW,3X10,F/ZB-3C (6 ± 1 kgf·cm)
Left / Right Decoration Plate
Be careful not to damage the ribs (x3 each) that secure the Left/
Right Decoration Plate and hooks (x4) of the Lower Housing.
Left
Right
Left Decoration Plate
Right Decoration Plate
Hook
Rib
Lower Housing
Stacker Assy
Be careful for ink to flow out then because if tilting is too soon after
the initial ink charge or a similar situation, the ink still on the Waste
Ink Pad which is not yet absorbed flows over out of the printer.
C.B.P-TITE SCREW,3X10,F/ZN-3C (6 ± 1
Bottom
Stacker Assy
Lower Housing Assy
Upper Housing Support Assy (w/Panel Unit)
 Disconnect the Panel FFCs (x2) from the connectors on the Panel SUB Board before removing the Upper Housing Support Assy.
 Be careful not to damage the hooks (x4) that secure the Upper Housing Support Assy.
 Be careful to remove the Upper Housing Support Assy because the I/C Holder Unit Cover Open Sensor Cable is connected to the sensor on the
back of the Upper Housing Support Assy.
Hook
C.B.P-TITE SCREW,3X10,F/ZN-3C (6 ± 1 kgf·cm)
Upper Housing Support Assy
Left
I/C Holder Unit
Cover Open Sensor
Cable
Back of Upper Housing Support Assy
Upper Housing
Support Assy
Panel FFCs
Panel SUBBoard
Right
Upper Housing Assy (w/Printer Cover Upper)
Pull out the Panel FFCs(x2) from the hole of the Upper Housing Assy before removing the Upper Housing Assy.
Tighten the screws in the order indicated in the figure above.
2
3
4
Panel FFCs
Right
Hole
1
Left
Upper Housing Assy
C.B.P-TITE SCREW,4X8,F/ZN-3C (8 ± 1 kgf·cm)
Rear rightRear left
