Adjustment Details of Adjustments 48
SC-P600 Revision D
6. Check the gap in both ends of the positioning hole that the rib of the LD Roller Guide is inserted. And align
LD Roller Guide (130-digit side) to the same height, and tighten with the screws.

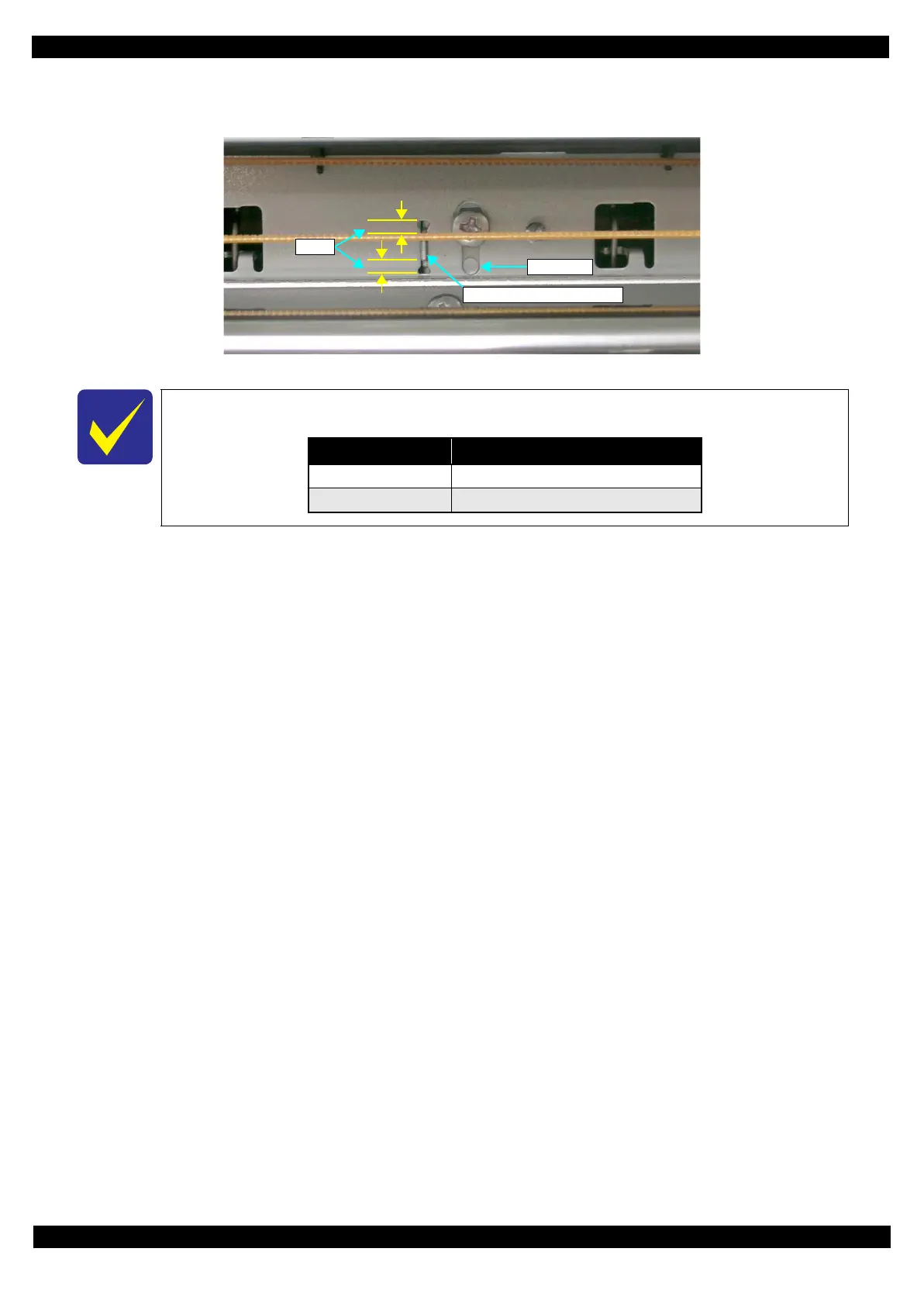

Figure 2-13. Checking the Position of Rib of the LD Roller Guide
The following are the possible troubles for misadjustment.
Gap
Rib of the LD Roller Guide
Guide pin
Tab Position Trouble
Above upper limit Paper feed mistakes caused by non-feed
Below lower limit Multiple-sheet feeding
