Epson SC-P600 Service Manual

SC-P600 Revision D
SE Group Confidential (Related Staff Only)
Maintenance Lubrication Points and Instructions 75

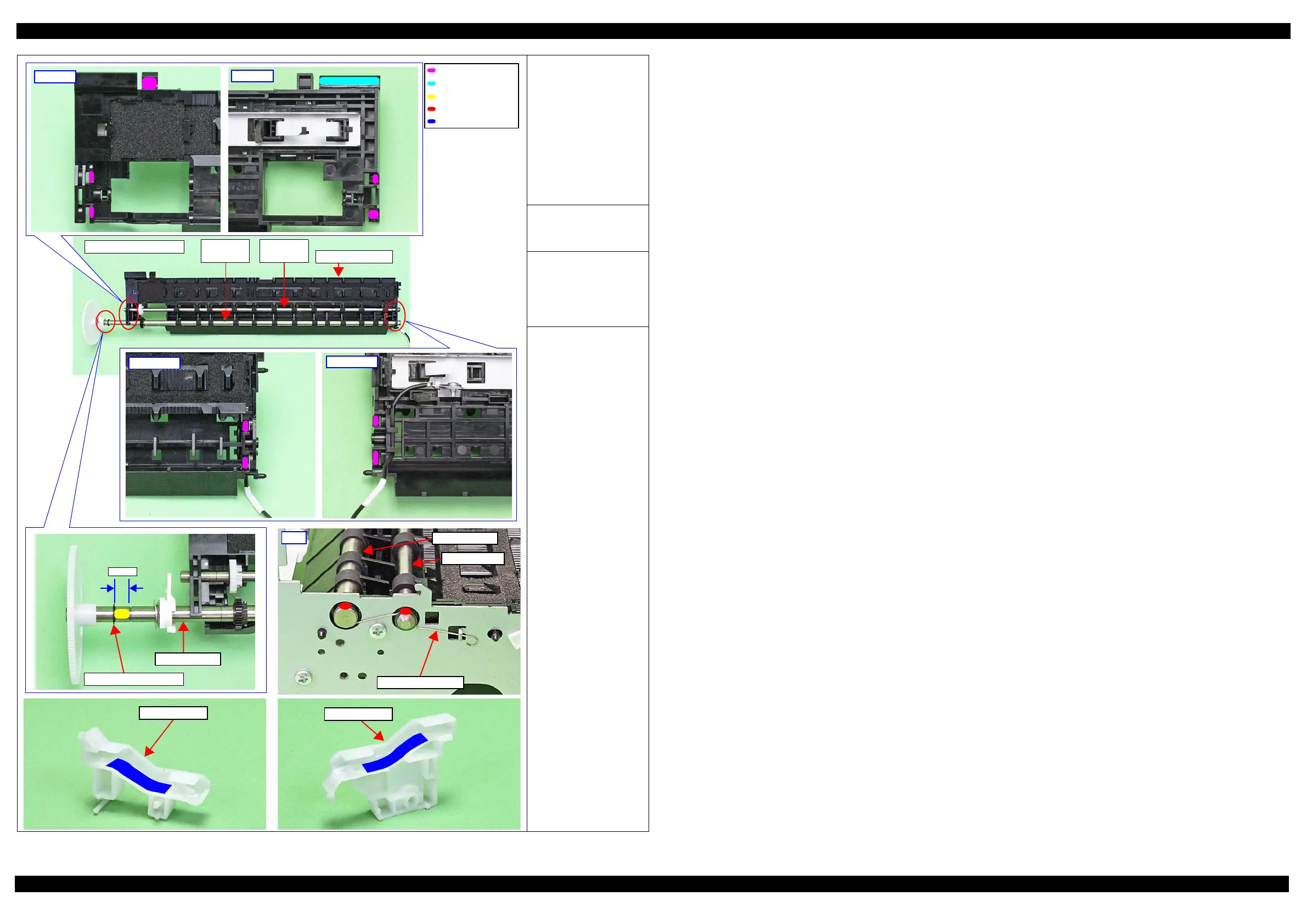

Figure 3-12. Front Paper Guide Assy
<Lubrication Point>
1. Front Paper Guide (x9)
2. Contact point between
the Front Paper Guide
and the PF Roller
3. EJ Roller Front Shaft
4. Contact points (x2)
between the EJ Roller
Front / Rear and the EJ
Grounding Spring
5. EJ Slider Left / Right
<Type>
1. 2. 3. 4. G-45
5. G-26
<Application Amount>
1. 3. Adequate amount
2.
φ 2 mm x 15 mm
4.
φ 1 mm x 3 mm
5. φ 2 mm x 1 mm
<Remarks>
 1. 5.
Apply with injector.
 3. Apply to 7 mm from
the Washer,
6.9X0.5X10.4, and
spread it with brush
while rotating the EJ
Roller Front.
 4. Apply after installing
the EJ Grounding
Spring with brush, and
spread it while rotating
the EJ Roller Front/EJ
Roller Rear.
2. Application Point
1. Application Point
3. Application Point
4. Application Point
5. Application Point
EJ Slider Right
Front Paper Guide Assy
EJ Slider Left
Washer, 6.9X0.5X10.4
7 mm
EJ Roller Front
Right
EJ Roller Front
EJ Roller Rear
EJ Grounding Spring
Front left
Back left
Back right
Front right
Front Paper Guide
EJ Roller
Front
EJ Roller
Rear

Epson SC-P600 Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 dpi
Number of Ink Colors	9
Ink Cartridge Configuration	Individual cartridges
Connectivity	USB 2.0, Ethernet, Wi-Fi
Ink Colors	Cyan, Magenta, Yellow, Gray
Max Print Size	13" x 19"
Media Handling	Sheet feed, roll paper
Paper Sizes	A4, A3, 13" x 19", 4" x 6", 5" x 7", 8" x 10"
Borderless Printing	Yes
Display	2.7" Color LCD
Weight	35.3 lb (16 kg)
Ink Type	UltraChrome HD
