3.2.4.9 Removing the PE Paper Sensor Assembly
1. Remove the housing. (See Section 3.2.1.)
2. Release 2 hooks securing the PE sensor assembly to the back of the frame, and remove the PE sensor
assembly, sliding it upward. Remove PE board assembly and PE lever, if necessary.
During assembly, make sure the tip (sensor part) of the sensor lever is in the hole in the paper guide
assembly.
After releasing 2 hooks, remove
the PE paper sensor assembly
by sliding it upward.
PE Lever
Torsion Spring (0.22 g)
PE Board Assembly
PE Holder
This side should be
installed on the frame.
(From back side of the frame)

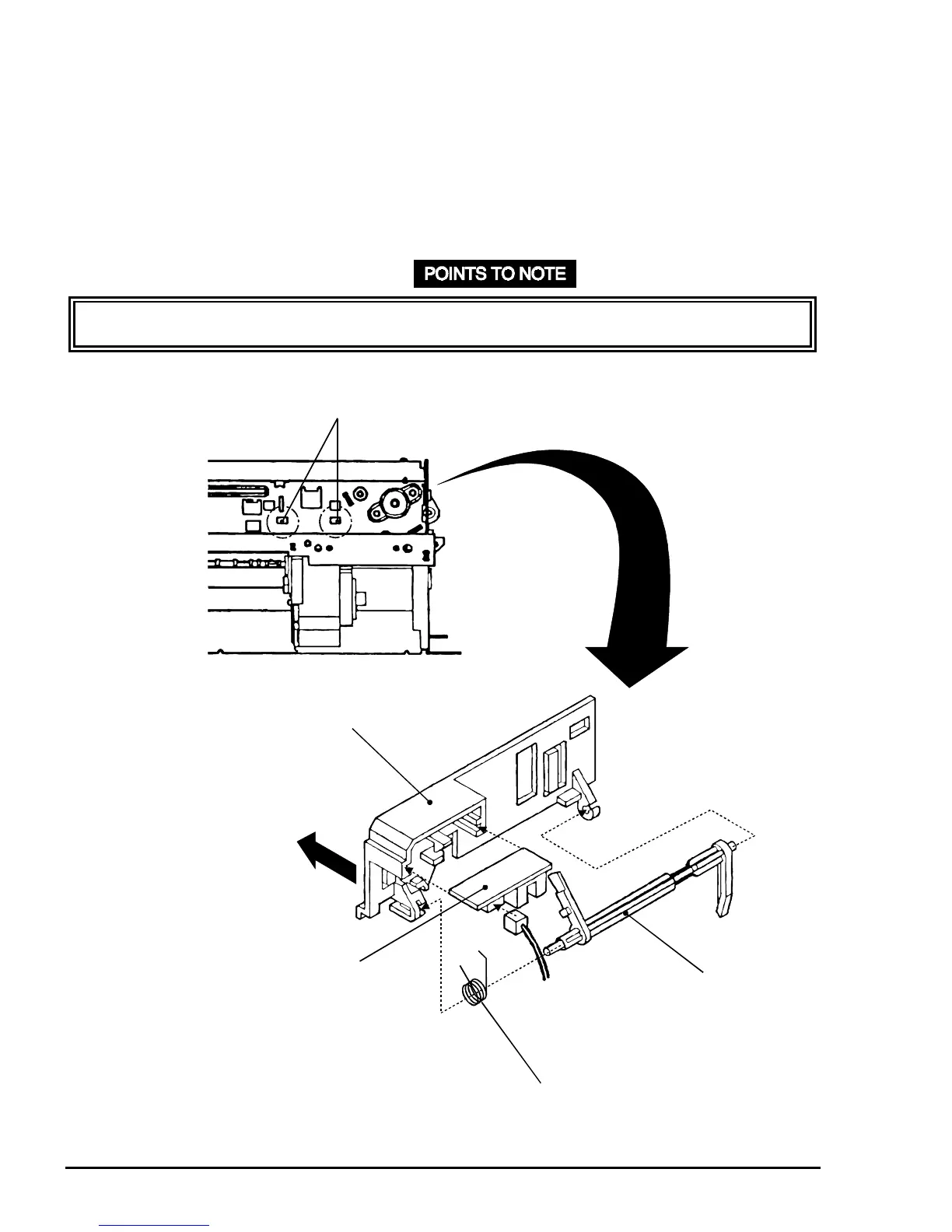

Figure 3-23. Removing the PE Paper Sensor Assembly
