EPSON Stylus Photo R260/R265/R270, R360/R380/R390 Revision B
Disassembly/Assembly Removing the Printer Mechanism 87

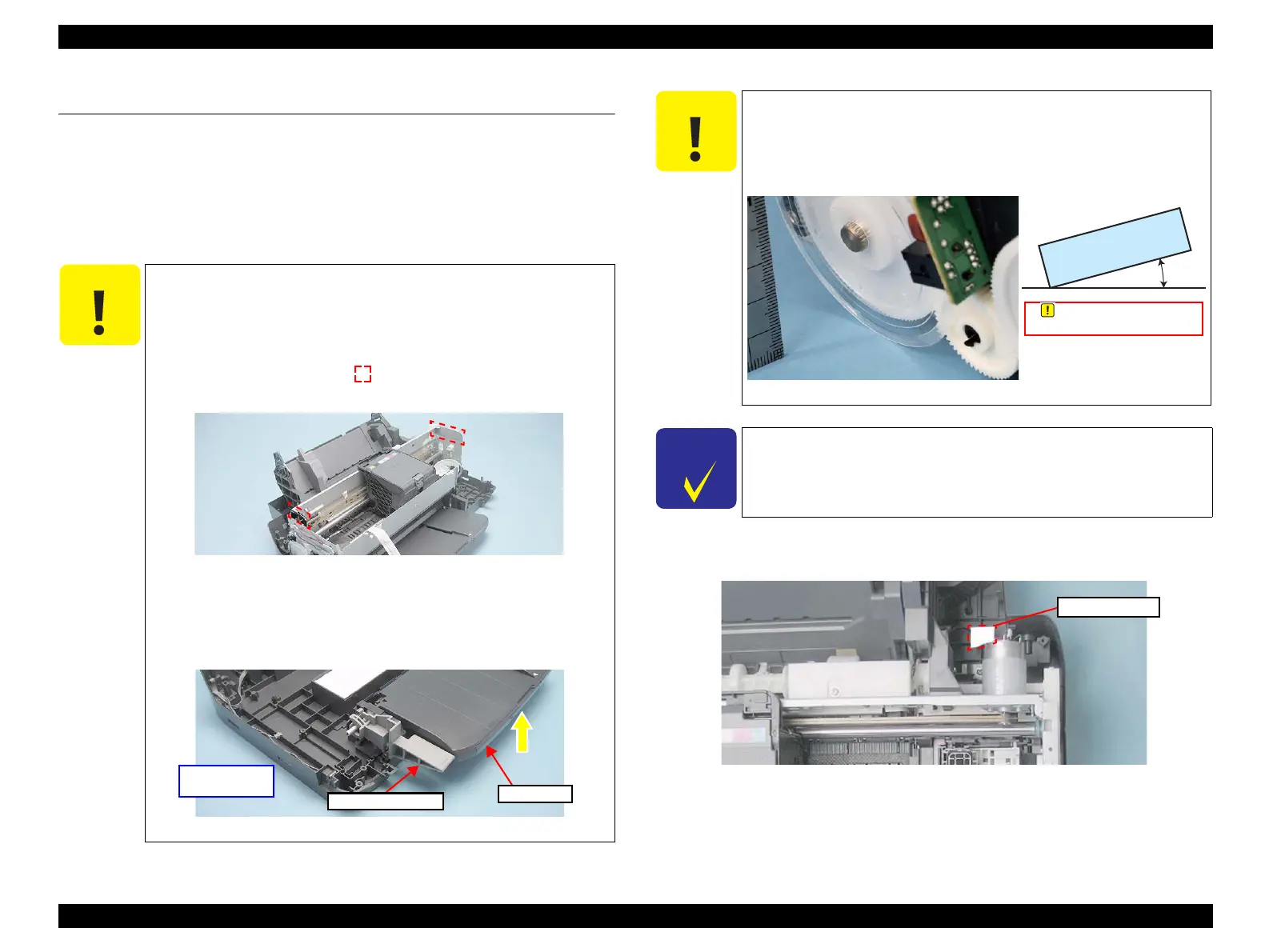

4.4 Removing the Printer Mechanism
Parts/Components need to be removed in advance
All exterior parts/components / All control boards / Middle Housing
4.4.1 Removing the Printer Mechanism
Removal procedure
1. Remove the acetate tape of the rear side of the Lower Housing with tweezers,
and remove the Ferrite Core through the hole of the Lower Housing.
Figure 4-85. Removing the Ferrite Core (Printer mechanism)
C A U T I O N
Take extra care to avoid injury from sharp metal edges. Before
starting, see the page given below to check the dangerous edges.
• “4.1.8 Sharp Metal Edges (Danger!)” (p.62)
Handling of the Printer Mechanism
Whenever handling the Printer Mechanism, hold it by the
positions indicated with in the figure in order to avoid
deformation of the frames.
Figure 4-82. Handling the Printer Mechanism
Before installing/removing the Printer Mechanism, lower the
CDR Guide Lever to raise the Stacker. If the Printer
Mechanism is moved with the Stacker lowered, the CDR Guide
Sensor that moves with the Stacker may be damaged.
Figure 4-83. Cautions on Removing the Printer Mechanism
Stacker
CDR Guide Lever
Stacker Raised
Status
C A U T I O N
Do not touch the PF Scale with bare hands or damage it.
If the Printer Mechanism is tilted leftward about 15°, the PF
Scale hits against the desk surface and can break. After
removing the Printer Mechanism, take extra care to protect the
PF Scale.
Figure 4-84. Handling of the Printer Mechanism
C H E C K
P O I N T
Refer to the Orientation Definition below for the directions
indicated in the following procedures.
•“4.1.6 Orientation Definition (p.61)”
P
r
i
n
t
e
r
M
e
c
h
a
n
i
s
m
About
15°
Do not tilt more than 15
degrees, or drag it while tilting.
Acetate tape
To Next Page
