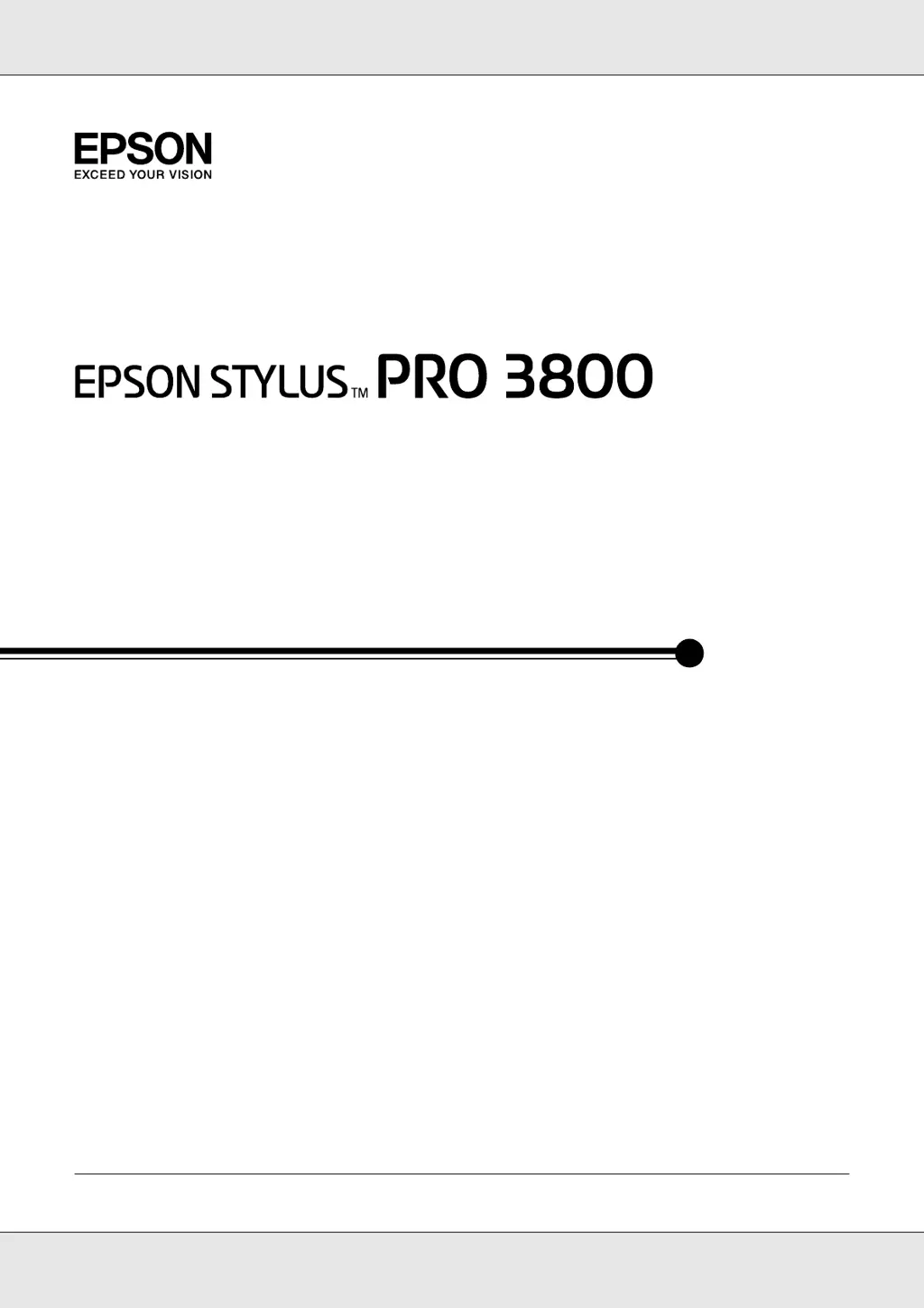

Epson Stylus Pro 3800 User Manual (English)

Other manuals for Epson Stylus Pro 3800

Service Manual306 pages

User Manual18 pages

Start Here6 pages

Specifications12 pages

Questions and Answers:

Q
qjohnsonAug 18, 2025
What to do if Epson Printer says ink cartridge error?
- J
  Jennifer JohnsonAug 19, 2025
  If the ink cartridge is expended, install a new ink cartridge. If the ink cartridge is nearly expended, replace the ink cartridge with a new one. If no ink cartridge is installed, install an ink cartridge. If an ink cartridge error has occurred, press the Ink Cover Open/Up button to open the ink cover, then remove the ink cartridge and install it again. If an ink cartridge with the wrong product code is installed, remove the ink cartridge, and install the ink cartridge with the correct product code. If an ink cartridge that cannot be used with this printer is installed, remove the ink cartridge, and install an ink cartridge that can be used with this printer. If a non-genuine ink cartridge is installed, replace the ink cartridge with a genuine Epson ink cartridge.
D
Dale BartonAug 21, 2025
What to do if Epson Stylus Pro 3800 is not feeding paper?
- P
  Patricia SimmonsAug 21, 2025
  If the loaded paper size does not match the data size, match the loaded paper size to the data size. If no paper is loaded in the printer, load paper correctly. If the paper is not loaded straight, press the Paper Feed/Down button, and then load the paper straight. If the printer could not feed the paper, set the paper correctly, and then press the Paper Feed/Down button. If the printer could not feed the paper, remove the paper, and then load the paper correctly.
D
Darrell CabreraAug 23, 2025
What to do if Epson Stylus Pro 3800 stops due to paper feed issues?
- M
  Mark HarrisAug 23, 2025
  If cleaning cannot be executed because thick paper is loaded, remove the thick paper. If the paper is removed from the rear manual feed slot, remove the paper from the rear manual feed slot. If double-sided printing has been performed, and the printer could not feed the paper correctly, load the paper which just has been ejected, and then press the Paper Feed/Down button. If the printer could not eject the printout, press the Paper Feed/Down button, and then remove the printout.
L
Lauren HernandezAug 26, 2025
What to do if Epson Stylus Pro 3800 Printer maintenance cartridge is not working?
- M
  Michael ReedAug 26, 2025
  If the maintenance cartridge is full, replace the maintenance cartridge with a new one. If a non-genuine maintenance cartridge is installed, replace the maintenance cartridge with a genuine Epson cartridge. If a non-genuine maintenance cartridge is installed, select No (press the Menu/Right button) to replace the maintenance cartridge with a genuine Epson maintenance cartridge. If a non-genuine maintenance cartridge is installed. This may void EPSON’s warranty, select DECLINE (press the Menu/Right button) to replace the maintenance cartridge with a genuine Epson maintenance cartridge. If the maintenance cartridge is not set in the printer, install the maintenance cartridge. If the maintenance cartridge is not set in the printer, install the maintenance cartridge.
M
Michael WilliamsAug 28, 2025
Why does my Epson Stylus Pro 3800 stop when ink cover is open?
- M
  michaelevansAug 28, 2025
  If something may be placed on the printer (ink cover), remove whatever is placed on the printer (ink cover). Then press the Ink Cover Open/Up button. If the ink cover is open, close the ink cover. If the maintenance cartridge cover is open, close the maintenance cartridge cover.
K
kevin25Aug 30, 2025
How to unlock print head on Epson Printer?
- T
  Teresa GriffithAug 30, 2025
  If print head is locked, remove the protective materials from the print head to release the print head. If print head is locked, remove the protective materials from the print head to release the print head.
N
nicole62Sep 1, 2025
What to do if Epson Stylus Pro 3800 Printer stops due to damaged data?
- J
  Jennifer SchneiderSep 1, 2025
  If a part used in the printer has nearly reached the end of its life, note the code and contact your dealer. If damaged data has been sent to the printer, stop printing, and press the Cancel/Reset button for 3 seconds. If the printer receives data with a wrong command, stop printing, and press the Cancel/Reset button for 3 seconds. If the installed printer driver is not correct for the printer, stop printing, and press the Cancel/Reset button for 3 seconds. Then make sure that the installed printer driver is correct for the printer.
T
Tyler DanielsSep 4, 2025
What to do if Epson Printer loaded paper doesn't match paper type?
- M
  Mrs. Leslie MartinSep 4, 2025
  If the loaded paper does not match the paper type selected for the Auto Head Alignment, press the Cancel/Reset button, and then load the paper that matches with the paper type selected for the Auto Head Alignment. If the loaded paper does not match the paper type selected, press the Cancel/Reset button, and then load the paper that matches with the paper type.
R
Roger AdamsSep 6, 2025
What to do if Epson Stylus Pro 3800 has wrong paper path?
- D
  David SmithSep 6, 2025
  If the paper path is wrong, check the Paper Source setting in the printer driver, and load the paper correctly.
J
John MercadoSep 8, 2025
What to do if Epson Stylus Pro 3800 says non-genuine ink cartridge is installed?
- H
  Holly WernerSep 9, 2025
  If a non-genuine ink cartridge is installed, select NO (press the Menu/Right button) to replace the ink cartridge with a genuine Epson ink cartridge. If a non-genuine ink cartridge is installed. This may void EPSON’s warranty, select DECLINE (press the Menu/Right button) to replace the ink cartridge with a genuine Epson ink cartridge.

Epson Stylus Pro 3800 Specifications

Resolution and Printing

maximum resolution	2880dpi x 1440dpi
printer speed (4"X 6" colour borderless 1440dpi x 720dpi)	Approx. 1.17 minutes
printer speed (A4 colour 1440dpi x 720dpi)	Approx. 2.02 minutes
printer speed (A3 colour 1440dpi x 720dpi)	Approx. 3.35 minutes
printer speed (A2 colour 1440dpi x 720dpi)	Approx. 5.80 minutes

Power

voltage	100 - 120V version, 220 - 240V version
power consumption (printing)	25W or less
power consumption (standby)	5W or less
power consumption (power off)	0.4W or less

Ink and Paper

ink capacity	80ml
ink system	9-Colours pigment ink (C, M, Y, LC, LM, LLK, Photo K, Matte K)
paper thickness (ASF)	0.08mm to 0.27mm
paper thickness (manual feed front)	1.2mm to 1.5mm
paper thickness (manual feed rear)	0.29mm to 0.5mm

Weight and Dimensions

weight	19.8 kg
storage dimensions	684mm(W) x 376mm(D) x 257mm(H)
printing dimensions	684mm(W) x 1042mm(D) x 550mm(H)

View in Manual

Summary

Printing with Windows

Printer Software Introduction

Overview of printer driver and utilities for Windows operating system.

Basic Settings

Configuration of fundamental printer driver settings for printing data in Windows.

Making Settings on the Main Menu

Adjusting Media Type, Color, and Mode settings via the printer driver in Windows.

Using the Printer Utilities

Accessing and utilizing printer maintenance and status check tools in Windows.

Updating and Uninstalling the Printer Software

Procedures for updating or removing printer software on Windows systems.

Printing with Mac OS X

Printer Software Introduction

Overview of printer driver and utilities for Mac OS X operating system.

Page Setup Dialog Settings

Configuring page attributes, paper size, orientation, and scale in Mac OS X.

Performing Borderless Printing

Instructions for printing documents without margins on Mac OS X.

Getting Information Through Online Help

Accessing printer help resources and documentation on Mac OS X.

The Control Panel

Buttons, Lights, and Messages

Explanation of the printer's control panel buttons, indicator lights, and LCD messages.

Menu Settings

Guide on how to use and navigate the printer's menu settings via the control panel.

Checking the print head nozzles

Procedure to check print head nozzle status and identify clogs using the control panel.

Aligning the print head

Steps to perform print head alignment manually or automatically via the control panel.

Paper Handling

Notes on Epson Special Media and Other Media

Guidelines for using various paper types, including Epson special media.

Loading cut-sheet media

Instructions for loading cut-sheet paper into the printer's various feed slots.

Loading paper from the Auto Sheet Feeder

Step-by-step instructions for loading paper into the auto sheet feeder.

Maintenance and Transportation

Replacing Ink Cartridges

Detailed guide on how to replace low or expended ink cartridges.

Cleaning the Printer

Steps and precautions for cleaning the printer's exterior and interior components.

Transporting the Printer

Procedures for safely moving the printer over short or long distances.

Problem Solver

Troubleshooting

General guidance and common solutions for printer operational issues.

Error messages

Explanations of common error messages displayed on the LCD panel and their solutions.

Printouts are not what you expected

Troubleshooting steps for issues like incorrect margins, garbled text, or inverted images.

Color Management

Information on performing color management for print data using the printer driver.

Product Information

Printer Specifications

Technical details regarding printing methods, resolution, and hardware components.

System Requirements

Minimum computer system requirements for using the printer with Windows and Mac OS X.

Safety Instructions

Important Safety Instructions

Essential safety guidelines for product setup, placement, and usage.

When handling the ink cartridges

Precautions and guidelines for safely handling and storing ink cartridges.
