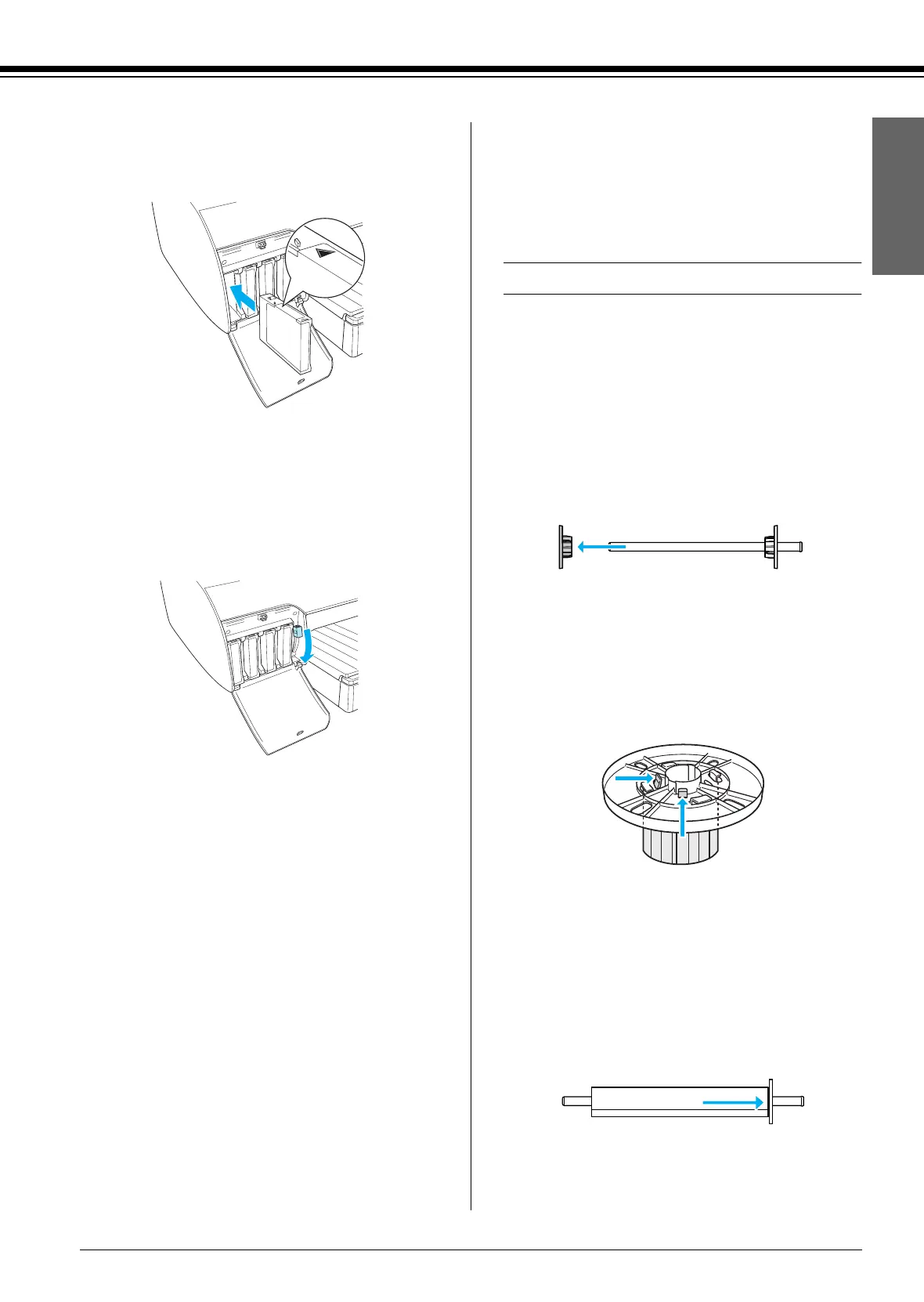

5. Hold the ink cartridge with the arrow mark
facing up and pointing to the rear of the
printer, and then insert it in the slot.
6. Repeat steps 4 to 5 to install the other ink
cartridges.
7. After inserting all ink cartridges in their
corresponding slot, lower the ink levers. The
printer starts initial ink charging.
8. After approximately two minutes, ink lever
messages appear on the LCD. Raise or lower
the ink levers accordingly until READY appears
on the LCD, which indicates initial ink
charging is completed.
c
Caution:
Never perform the following tasks while the
Pause light is flashing; otherwise, damage
may occur.
❏ Turn off the printer.
❏ Open the top cover.
❏ Remove the rear cover.
❏ Move the paper lever to the released
position.
❏ Remove the ink cartridges.
❏ Remove the maintenance tank.
❏ Unplug the power cord.
9. Close the ink compartment cover(s).
Note:
If you have installed 220 ml ink cartridges, do not
close the ink compartment cover(s).
Loading Roll Paper
Attaching the roll paper to the
spindle
When installing the roll paper onto the spindle,
follow the steps below.
1. Slide the movable flange off the end of the
spindle.
2. When attaching roll paper with a 3-inch core,
keep the gray attachments attached.
When attaching the roll paper with a 2-inch
core, remove the gray attachments from the
flange.
Note:
Keep the gray attachments in a safe place for future
use.
3. Place the roll paper on a flat surface so that it
does not unwind. Slide the roll paper onto the
spindle and onto the flange until it fixes into
place.
Note:
Do not stand the spindle when attaching the roll
paper. It may cause slant paper feeding.
To Next Page
Loading...
