Epson surecolor p5000 Quick Reference Guide

Loading roll paper in the printer | 7
Loading roll paper in the printer
Depending on the size of the roll paper core (2 inches or 3 inches), you may need to mount or remove the
core adapter from the spindle. To perform borderless printing, you may need to install the spacer. See the
online User’s Guide for more information and instructions.

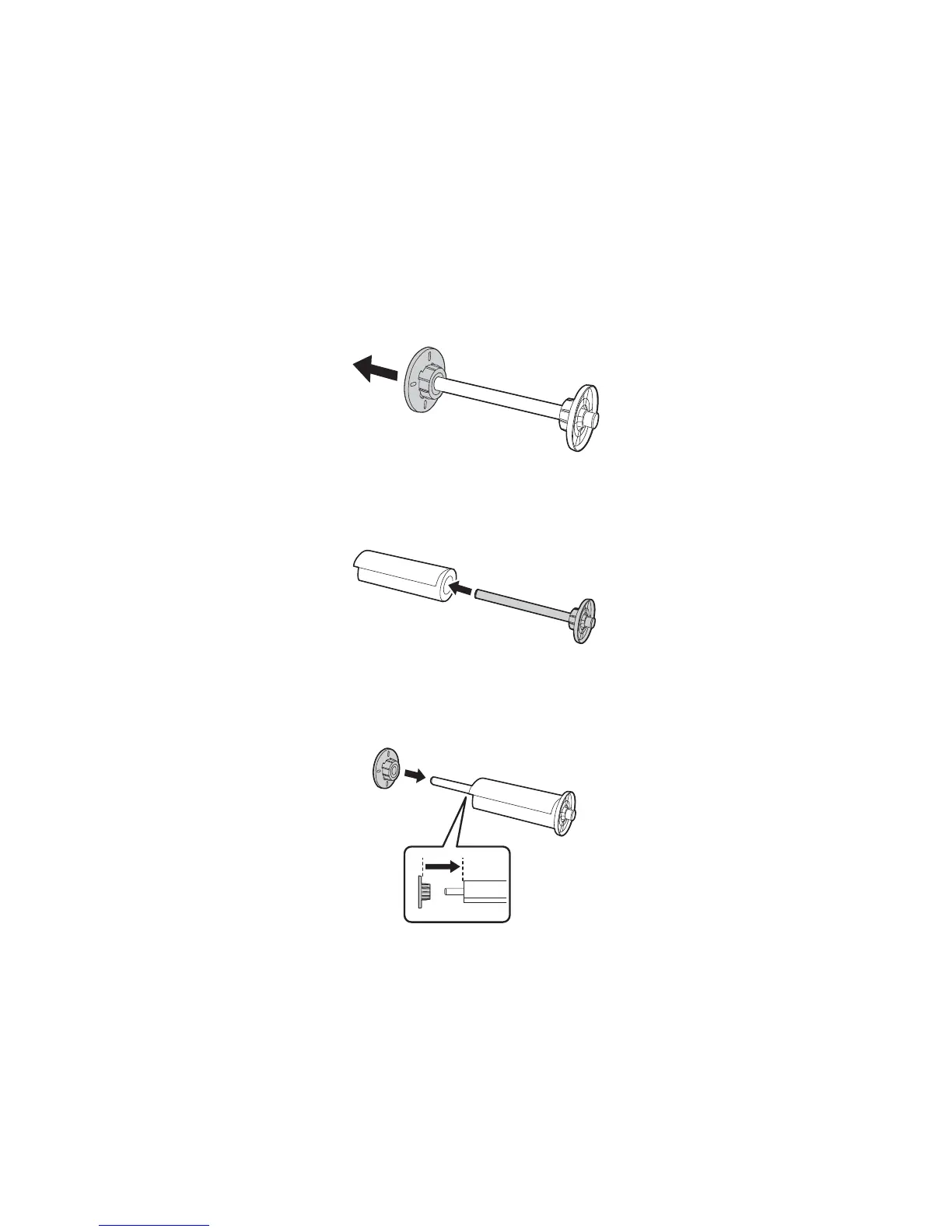

1. Remove the black paper stop off the end of the spindle.
2. Position the roll as shown, then slide it onto the spindle. The gray end should be on the right with the
paper unwinding from the top. Make sure the roll is pushed all the way to the end of the spindle.
3. Firmly push the black paper stop back onto the spindle.
4. Make sure the paper source setting is selected for roll paper. Press the l button on the control panel.
Press the d button to select
Roll Paper/Cut or Roll Paper/No Cut, then press the OK button.

Epson surecolor p5000 Specifications

General

Display	LCD
Product color	Black
Built-in display	Yes
Sound pressure level (printing)	47 dB
Print technology	Inkjet
Maximum resolution	2880 x 1440 DPI
Page description languages	ESC P
Media thickness	1.5 mm
Roll top margin	3 mm
Maximum print size	-
Power consumption (standby)	20 W
Power consumption (typical)	52 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	-20 - 40 %
Operating relative humidity (H-H)	45 - 60 %
Maximum input capacity	250 sheets
USB connector	USB Type-A
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	766 mm
Width	863 mm
Height	405 mm
