Epson surecolor p5000 Quick Reference Guide

12 | Using cut sheets
Using cut sheets
You can print on many types of cut sheet paper and other media. The printer accepts sheets in widths from
8 inches (20 cm) to 17 inches (43 cm).
You can leave roll paper in the printer when you print on cut sheets.
How you load the paper depends on its type and thickness:
• If the media is of the same type and up to 0.27 mm thick, load paper in the paper cassette.
• If you want to print one sheet at a time and up to 0.79 mm thick, load paper in the rear feed.
• If you want to print on media between 0.8 mm and 1.5 mm thick, load paper in the front feed.
Loading cut sheets in the paper cassette
You can load most photo and fine art sheet papers up to 0.27 mm thick in the paper cassette. For available
paper types and instructions on loading paper larger than A3 size, see the online User’s Guide. Make sure
the roll paper cover is closed.
1. Make sure the paper source setting is selected for cut sheets. Press the l button on the control panel.
Press the d button to select
Cut Sheet, then press the OK button.

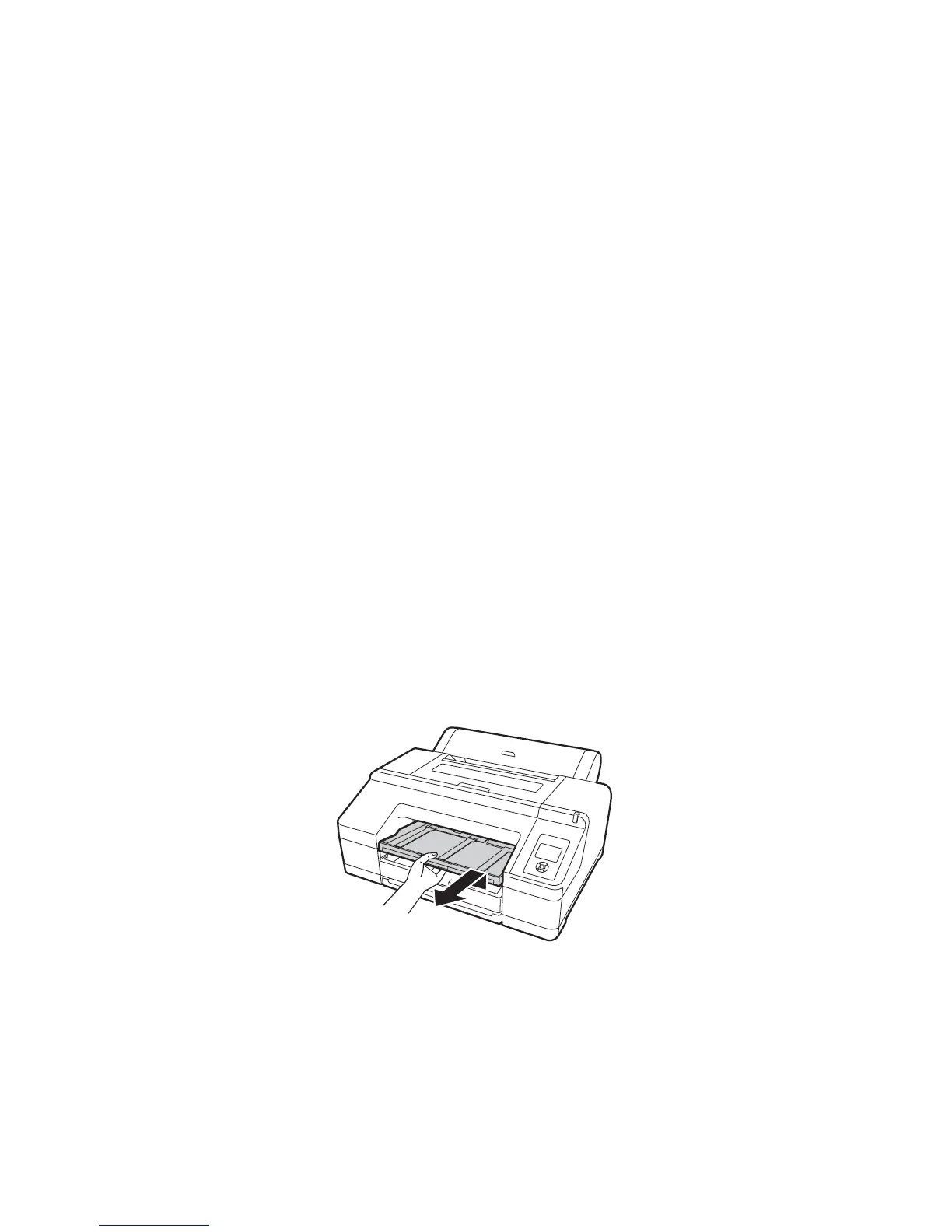

2. Lift the edge of the output tray and remove it.

Epson surecolor p5000 Specifications

General

Display	LCD
Product color	Black
Built-in display	Yes
Sound pressure level (printing)	47 dB
Print technology	Inkjet
Maximum resolution	2880 x 1440 DPI
Page description languages	ESC P
Media thickness	1.5 mm
Roll top margin	3 mm
Maximum print size	-
Power consumption (standby)	20 W
Power consumption (typical)	52 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	-20 - 40 %
Operating relative humidity (H-H)	45 - 60 %
Maximum input capacity	250 sheets
USB connector	USB Type-A
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	766 mm
Width	863 mm
Height	405 mm
