Krautkramer USN 52R/USN 52L Issue 05, 02/00 5-29

– Continue to proceed in this way until all available

reference echoes are recorded.

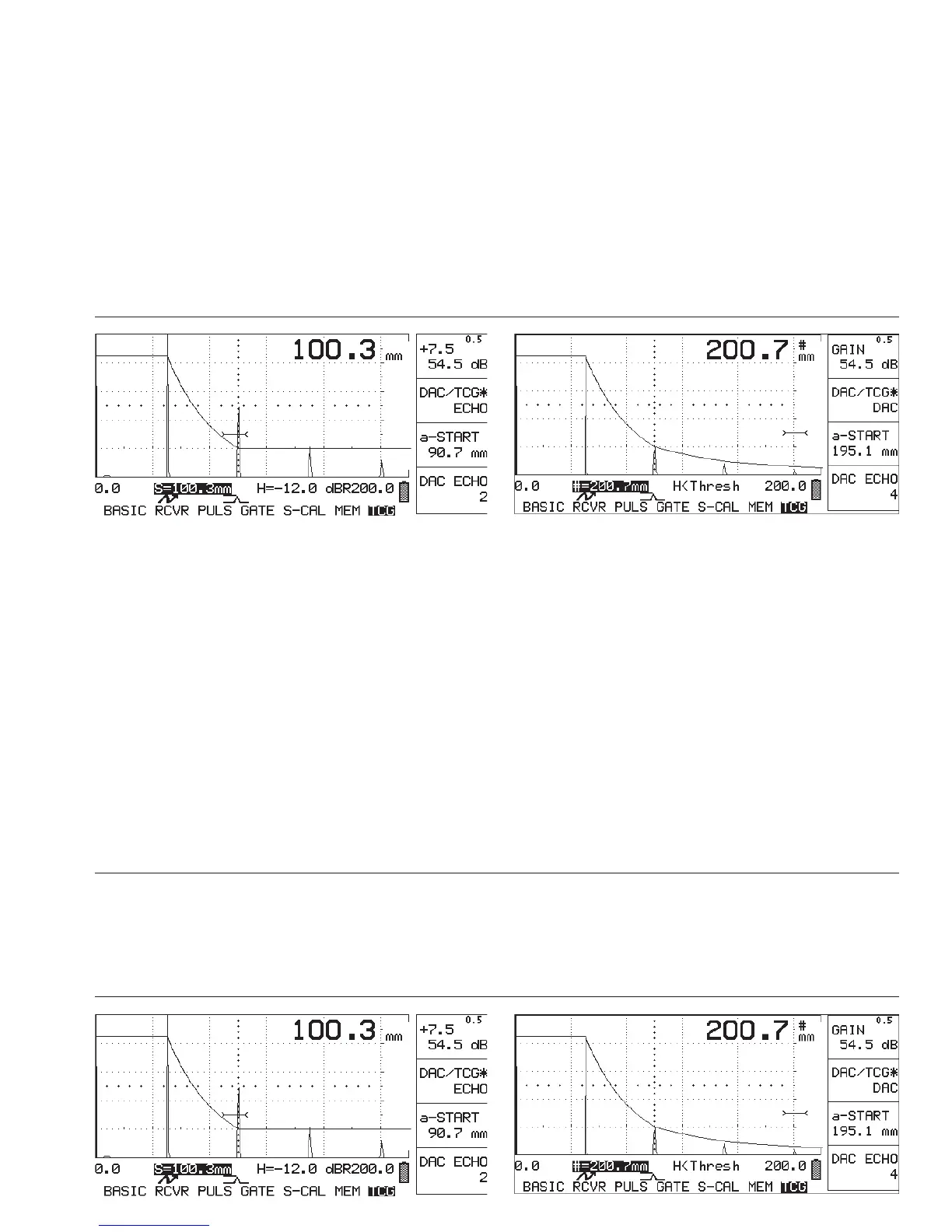

– Switch on the curve now by setting the DAC/TCG

function to DAC:

The record mode is automatically switched off, the

curve is displayed, and all echo indications can be

evaluated relative to this curve.

H Note:

The DAC/TCG function is now marked with “*“ indicating

that the current setting contains a DAC curve.

The marking DAC/TCG* also appears when the function

is switched off.

– If you require an evaluation in the TCG mode, switch

the DAC/TCG function over to TCG.

All reference echoes will now be at approx. 80%

screen height. At the same time, you can now have

a graphic display of the gain increase with the

CURVE function.

– All echoes will from now on be evaluated in relation

to the reference height (dBR); this is the height of the

first reference echo.

– To be on the safe side, store this setting in a free

data set.

Recording a Distance-Amplitude Curve Operation
