Epson WF-2010 User Manual

WF-2540 / WF-2530 / WF-2520 / WF-2510 / WF-2010 series Revision B
Confidential
Disassembly/Reassembly Disassembly/Reassembly Procedures 37

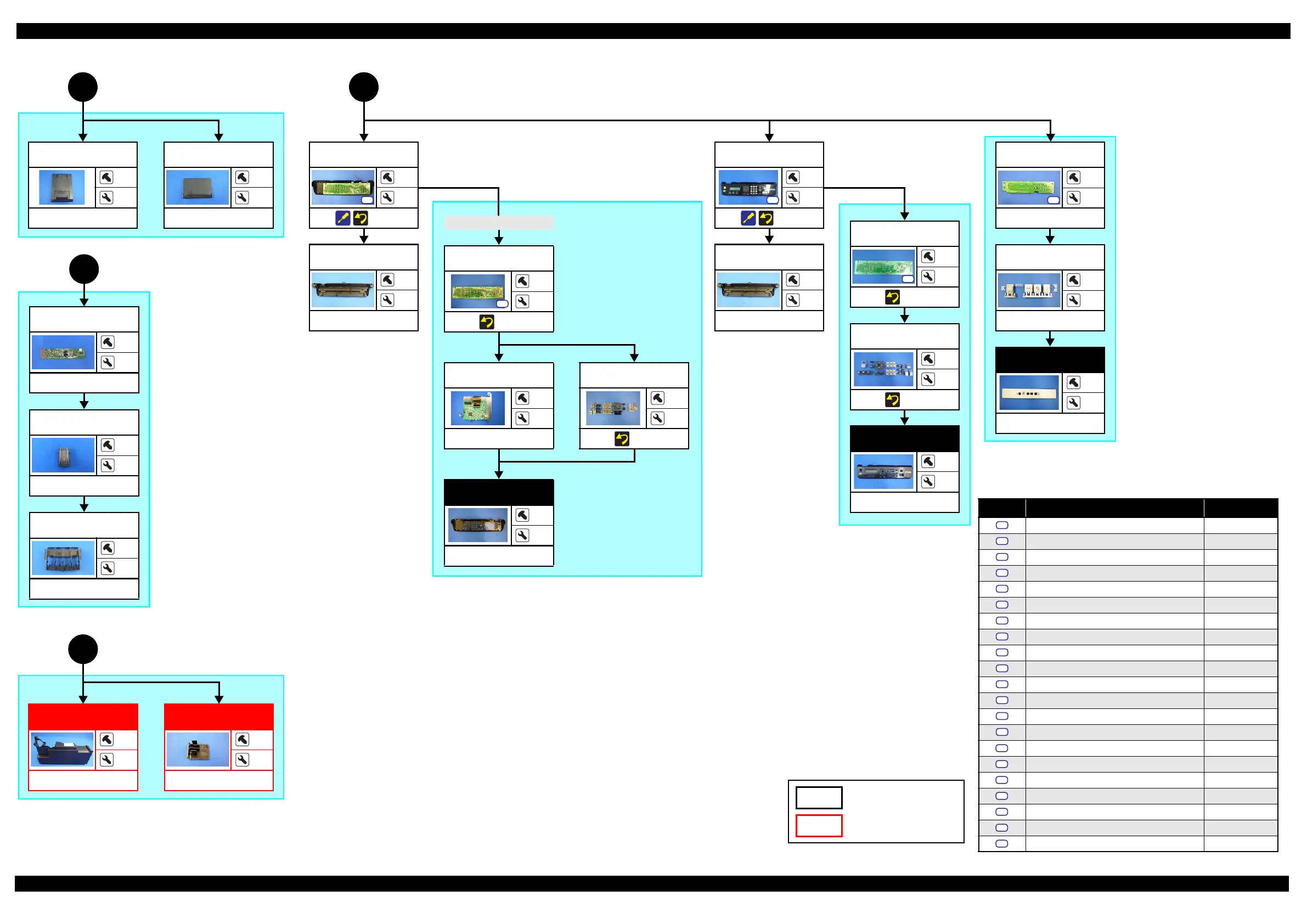

Flowchart 2-2. Unit/Assy (2)
Tray Front
---
2
---
Tray Front
Support
---
2
---
(p 30)
2
(p 30)
4
Housing Left
---
2
---
Ethernet Cover
---
2
---
5
Panel Housing
Upper Assy
3
4
(p 42)
S6
Panel Housing
Lower
---
---
---
Panel Board
6
---
(p 42)
S7
 LCD FFC (CN2)
Panel Button
---
---
(p 42)
LCD Unit
---
---
---
Panel Housing
Upper
---
---
---
CR Contact
Module
---
2
---
3
CSIC Connector
---
2
---
Holder Board
---
2
---
Panel Housing
Upper Assy
3
4
(p 42)
S6
Panel Housing
Lower
---
---
---
Panel Board
6
---
(p 42)
S7
Panel Button
---
---
(p 42)
Panel Housing
Upper
---
---
---
Panel Board
3
---
---
S7
Panel Button
---
---
---
Panel Housing
---
---
---
2.5LCD Type 2Line Bitmap Type
LED&Button Type
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE (S-P1) SCREW 3x12 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2x6 F/ZN-3C 4 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZB-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.B.S-TITE SCREW 2x4 F/ZN-3C 2 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZB-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 8 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.P-TITE SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZB-3C 6
± 1 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
Model-specific parts/unit
Common parts/unit
(p 30)
Multifunction Printer :
(p 32)
Singlefunction Printer :
(p 30)Multifunction Printer :
(p 32)
Singlefunction Printer :

Epson WF-2010 Specifications

General

Print Technology	Inkjet
Print Resolution	5760 x 1440 dpi
Paper Capacity	100 sheets
Duplex Printing	Manual
Functions	Print
Print Speed (Color)	18 ppm
Connectivity	USB, Wi-Fi
Supported Paper Sizes	A4, A5, A6, B5
