Appendix Protection for Transportation 78
WF-2540 / WF-2530 / WF-2520 / WF-2510 / WF-2010 series Revision B
6.2.2 Securing the Paper Support/Paper Support Sub
 Purpose
To prevent damaging the Paper Support/Paper Support Sub by the shock during transportation.
 Risks if it is not performed
The Paper Support/Paper Support Sub will be scratched and the abrasion powder will be produced due to the
shock during transportation.
 Preparation
Prepare two pieces of strong tape

Multifunction Printer
• 1) Length: 60 mm, width: 22 mm, fold one end 5 ± 2 mm.
• 2) Length: 50 mm, width: 22 mm, fold one end 5 ± 2 mm.

Singlefunction Printer (3 tapes)
• Length: 80 mm, width: 16 mm, fold one end 5 ± 2 mm.
 Method

Multifunction Printer
1. Attach the strong tape 1) to the position on the following diagram A and secure the Paper Support Sub.
2. Attach the strong tape 2) to the position on the following diagram B and secure the Paper Support.

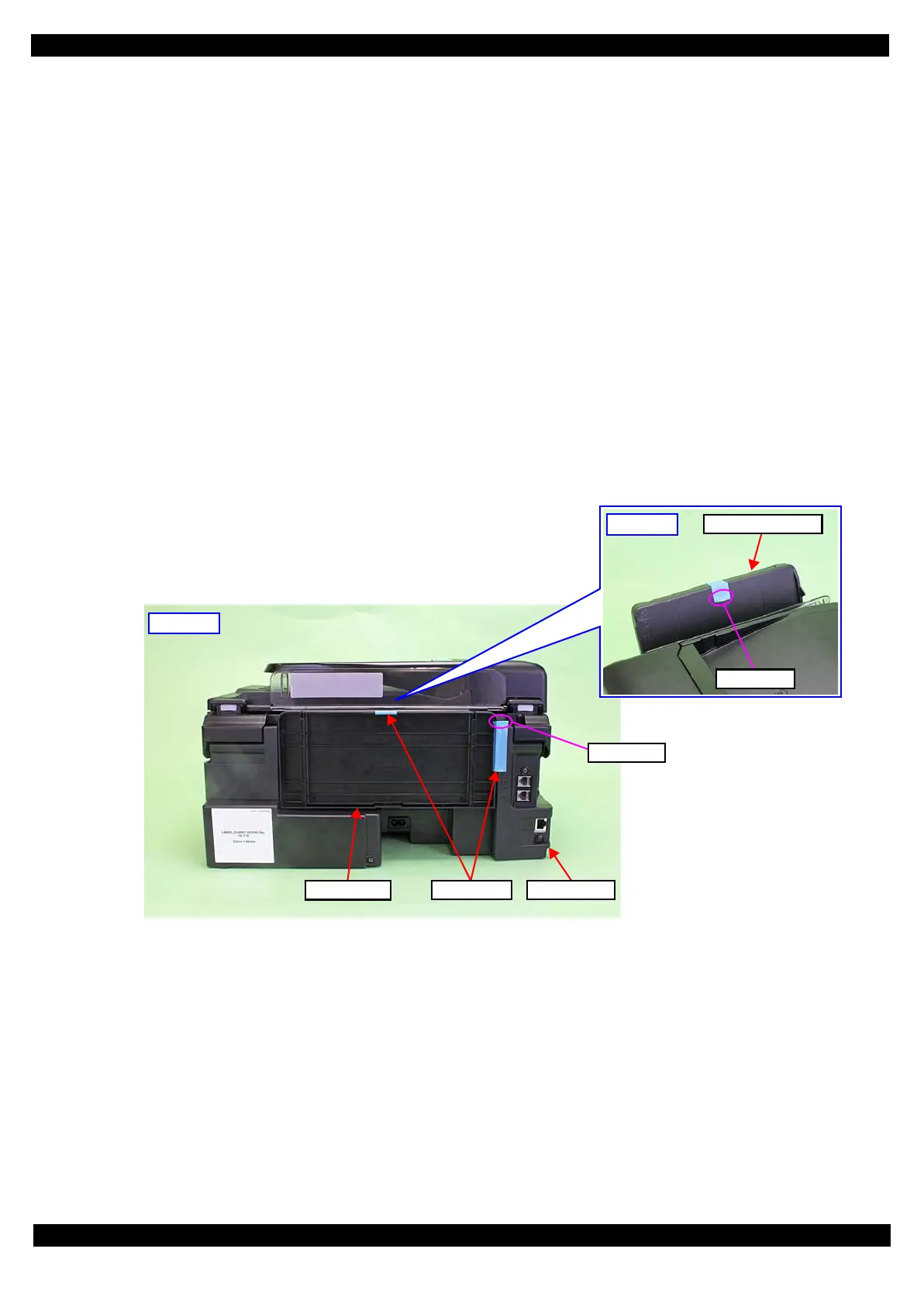

Figure 6-3. Securing the Paper Support/Paper Support Sub (Multifunction Printer)
Diagram B
Paper Support Sub
Folded ends
Diagram A
Folded ends
Paper Support
Housing Left
Strong tape

Epson WF-2010 Specifications

General

Print Technology	Inkjet
Print Resolution	5760 x 1440 dpi
Paper Capacity	100 sheets
Duplex Printing	Manual
Functions	Print
Print Speed (Color)	18 ppm
Connectivity	USB, Wi-Fi
Supported Paper Sizes	A4, A5, A6, B5
