Appendix Connector Diagram 76
WF-2540 / WF-2530 / WF-2520 / WF-2510 / WF-2010 series
Revision B
6.1 Connector Diagram
Cable connections of this printer are shown below.
For the function differences of each model, refer to " Function List According to Models (p28)".

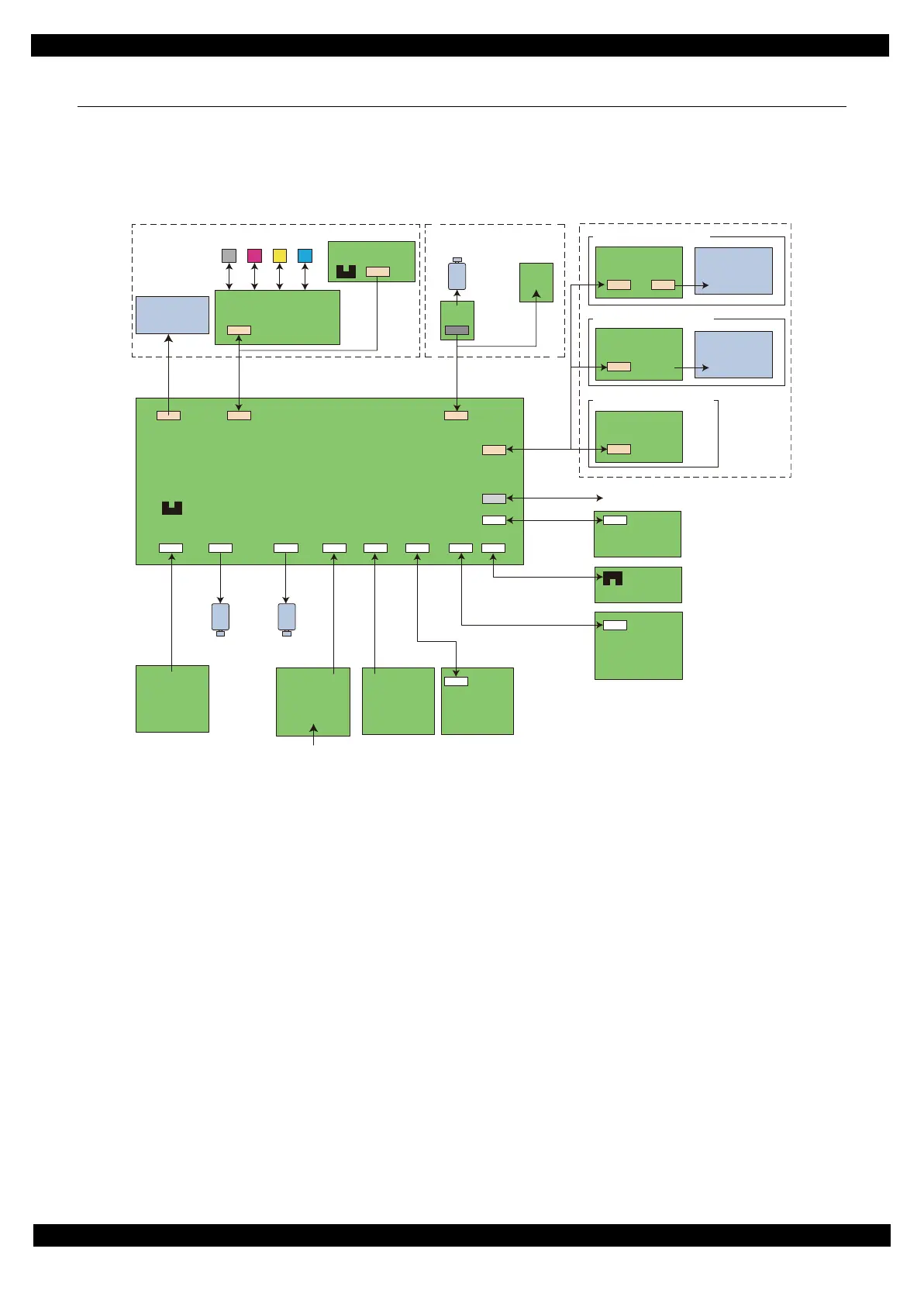

Figure 6-1. Connector Diagram
B
M
Y
C
CN501 CN1 CN14
CN2
CN9 CN7CN13CN12
CN61 CN11
CN102
Printhead
CIS
PE Sensor
CR Motor
SCN Motor
PF Motor
USB
CN3
CN2
CN4
PF Encoder
CR Encoder
WiFi Board
AC in
PS Board
CN3
USB Board
Main Board
ADF / Scanner Unit
CN1
CN1
CN1
Panel Board
LCD
LCD
CN1
Panel Board
CN1
Panel Board
CN1
CN2
CSIC
CR Contact Module
CR Unit
Panel Unit
2.5 inch LCD type
2 Line Bitmap type
LCD & Button type
Ethernet
Board
FAX Board
CN5
PIS Board
