WF-2540 / WF-2530 / WF-2520 / WF-2510 / WF-2010 series Revision B
Confidential
Maintenance Lubrication Points and Instructions 71

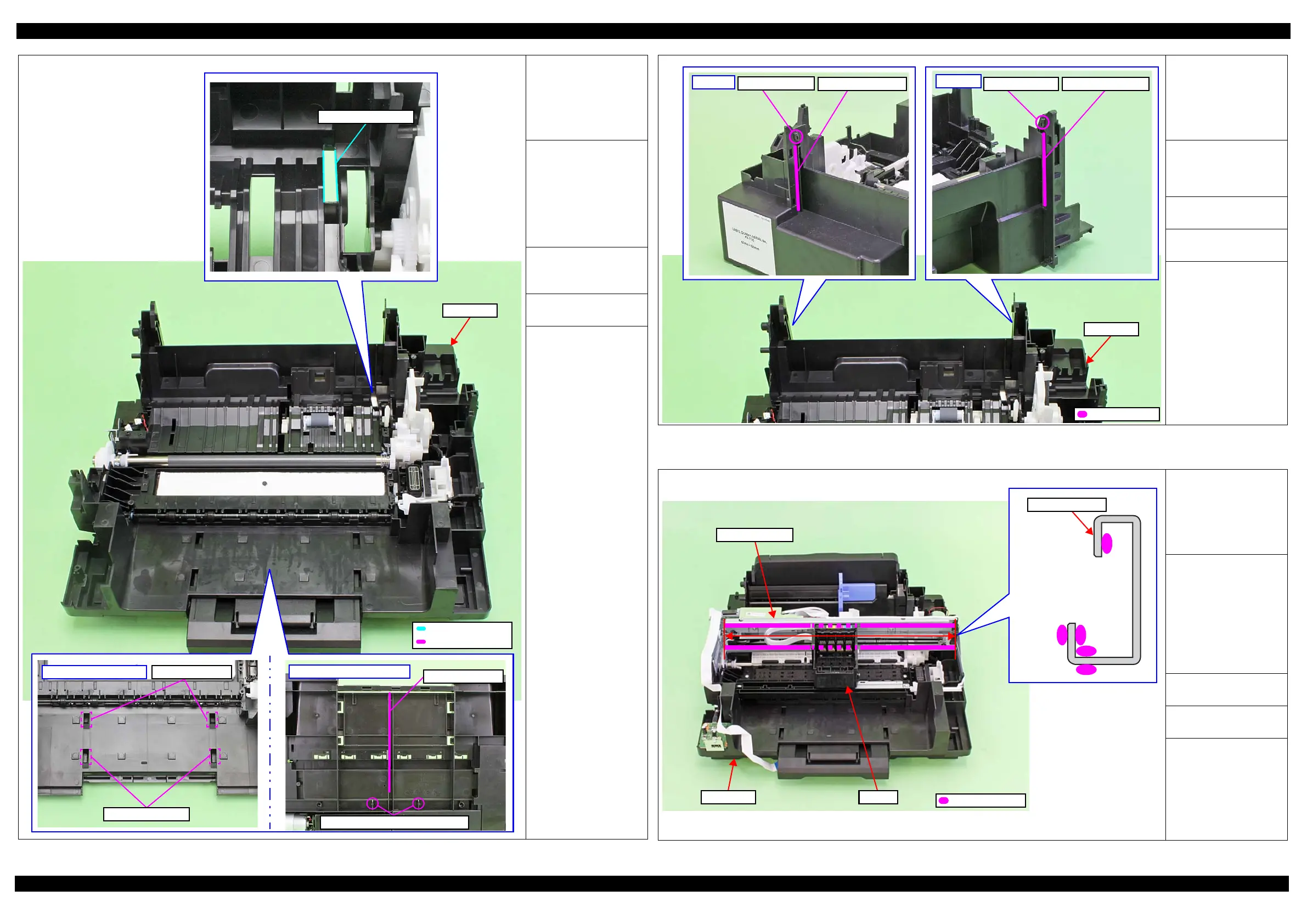

Figure 4-8. Lubrication of the Frame Base (3)
<Part supply as ASP>
Supplied as the Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1. Contact points (x2) on
the Frame Base with the
Hopper
2. Contact points (x7: only
Multifunction Printer)
on the Frame Base with
the Stacker Assy
<Type>
1. G-71
2. G-74
<Application Amount>
Appropriate amount
<Remarks>
Apply with flux
dispenser.
Stir G-74 before use.
Apply grease on ribs
Top: Multifunction Printer
Apply grease on ribs
Apply grease on ribs
Bottom: Multifunction Printer
Apply grease on both sides of dowels
Frame Base
2. Application Point
1. Application Point
Figure 4-9. Lubrication of the Frame Base (4)
<Part supply as ASP>
Supplied as the Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Contact points (x4) on the
Frame Base with the Paper
Support Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
Apply with flux
dispenser.
Stir G-74 before use.
Apply inside the groove
Rear left
Apply grease on rib
Rear right
Apply inside the groove
Apply grease on rib
Frame Base
Application Point
Figure 4-10. Lubrication of the Main Frame Assy
<Part supply as ASP>
Supplied as the Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1. Contact point (x1) on
the upper side of the
Main Frame Assy with
the CR Unit
2. Contact points (x4) on
the lower side of the
Main Frame Assy with
the CR Unit
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Main Frame Assy
Frame Base
CR Unit
Application Point
To Next Page
