Disassembly/Reassembly Disassembly/Reassembly Procedures 29
Epson WF-5690/4640/4630/5620/5190/5110 series Revision D

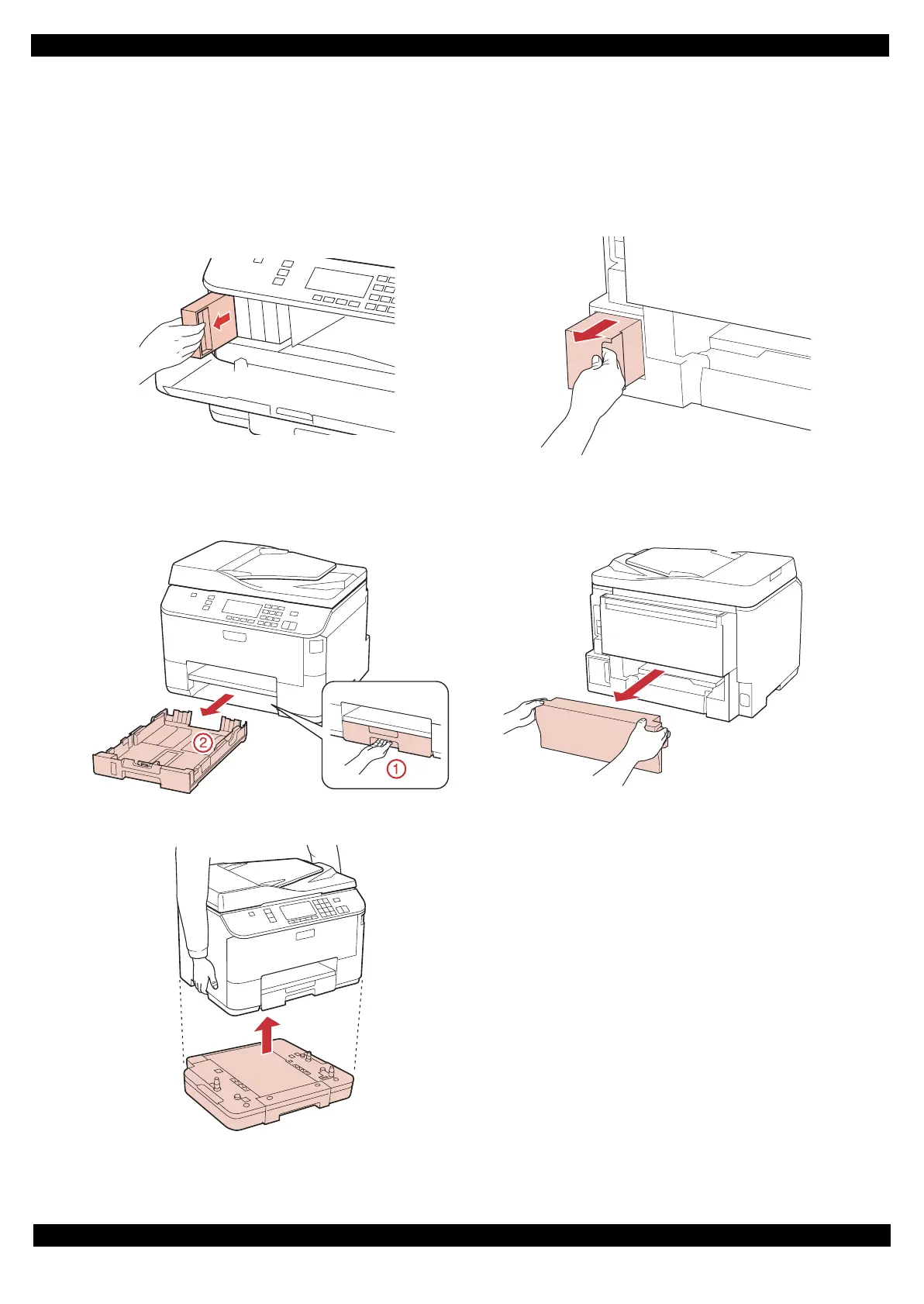

2.2.2 Parts/Units Need to be Removed in Advance
In Chapter 2 "Disassembly Flowchart (p30)", the procedures are indicated on the premise that some parts/units
are removed in advance. Make sure to remove the following parts/units before starting disassembly.
Note "*": When the optional Cassette Assy 2nd is installed for WF-5690/4640/4630/5620/5190/5110 series.
 Ink Cartridges (x4)  Maintenance Box
 Cassette Assy 1st  Duplex Unit
 Cassette Assy 2nd
*

Epson WF-5690 Series Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Fax	Yes
Functions	Print, Copy, Scan, Fax
Dimensions (W x D x H)	18.1" x 25.8" x 15.1"
Print Technology	PrecisionCore
Print Speed (Black/Color)	20 ppm / 20 ppm
Scanner Type	Flatbed, ADF
ADF Capacity	35 sheets
Display	4.3" color touchscreen
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Paper Sizes	A4, A5, A6
Ink Cartridges	Black, Cyan, Magenta, Yellow
Monthly Duty Cycle	45, 000 pages
