Epson WF-5690/4640/4630/5620/5190/5110 series Revision D
Confidential
Disassembly/Reassembly 37
2.2.3.5 2nd Cassette Unit
This unit is installed for WF-4640 series, and option for WF-5690/4630/5620/5190/5110 series.

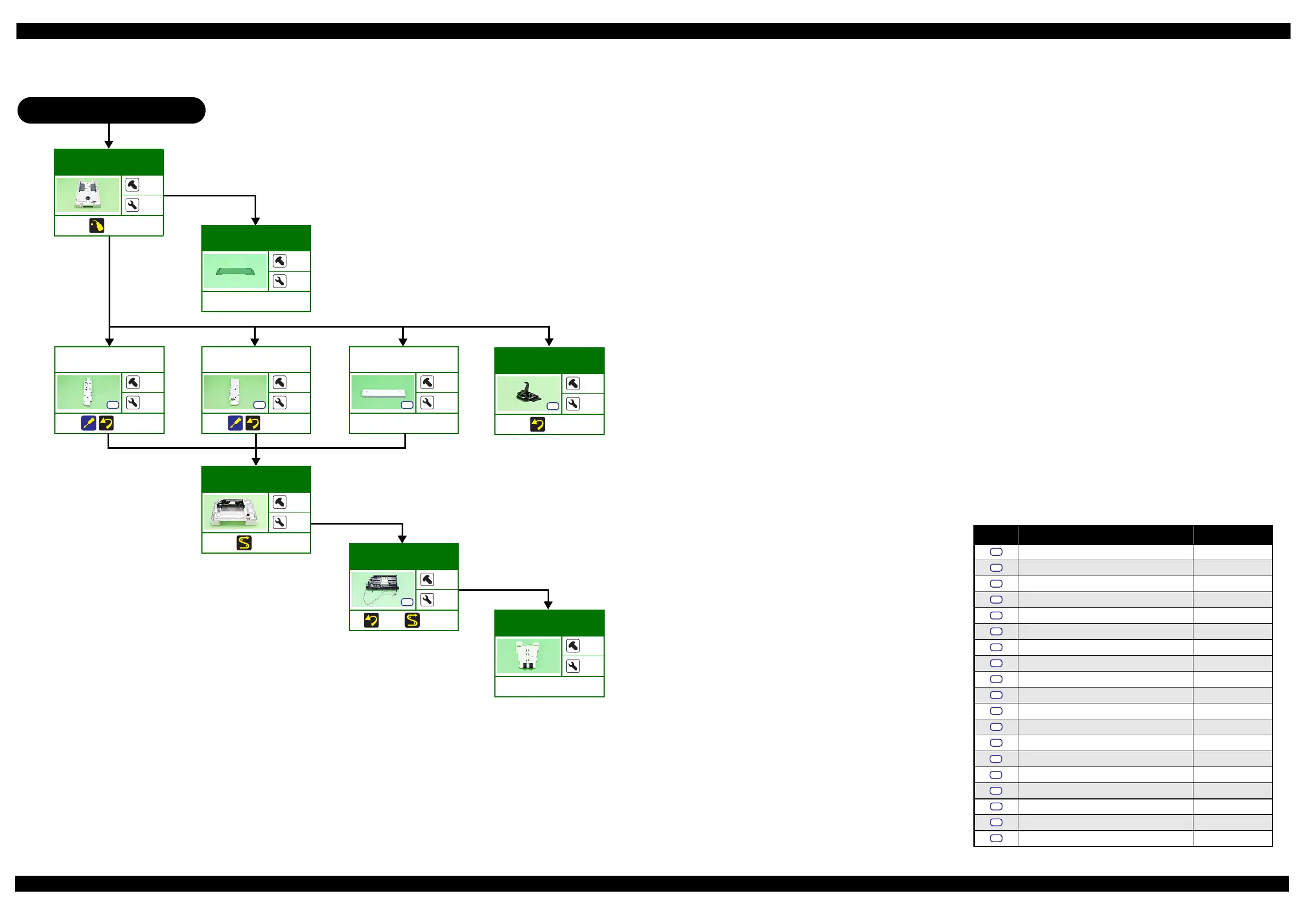

Flowchart 2-1. Disassembling Flowchart of 2nd Cassette Unit
2nd Cassette Unit START
Cassette Assy
2nd
---
---
(p 82)
Frame Pickup
Assy
4
---
(p 45) (p 49)
S2
2nd Cassette
Housing Assy
---
---
(p 49)
2nd Cassette
Cover Left
4
3
(p 45)
S2
Cassette Cover
---
---
---
2nd Cassette
Cover Right
4
3
(p 45)
S2
2nd Cassette
Cover Front
2
---
---
S2
Paper Stopper
Assy
2
---
(p 45)
S7
Pickup Assy 2nd
---
1
---
Screw type/torque
Symbol Screw Type Torque
C.B.P-TITE SCREW 2x6-F/ZN-3C 2 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10-F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6-F/ZN-3C 6
± 1 kgf·cm
C.P.SCREW 3x6-F/ZN-3C 6 ± 1 kgf·cm
C.P.SCREW 3x6-F/ZN-3C 2
± 5 kgf·cm
C.B.P-TITE (P2) SCREW 3x10-F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 3x8-F/ZN-3C 6
± 1 kgf·cm
C.P.SCREW 2.5x6-F/ZN-3C 2 ± 5 kgf·cm
C.P.SCREW 3x5-F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE (P4) SCREW 3x8-F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8-F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 2x10-F/ZN-3C 3 ± 0.5 kgf·cm
C.B.P-TITE (S-P1) SCREW 3x12-F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE (P4) SCREW 3x10-F/ZN-3C 6 ± 1 kgf·cm
C.P.SCREW 3x4-F/ZN-3C 6
± 1 kgf·cm
C.B.EP-TITE SCREW 2x16 (B=10) F/ZN-3C 2.5 ± 0.4 kgf·cm
P.W.,2.8x0.5x6.5-F/ZN-3C 3
+ 0.5 kgf·cm
C.P.SCREW 2.5x6-F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE(P2) SCREW,3x8-F/ZB-3C 6
± 1 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
