Epson WF-5690 Series User Manual

Epson WF-5690/4640/4630/5620/5190/5110 series Revision D
Confidential
Disassembly/Reassembly 33

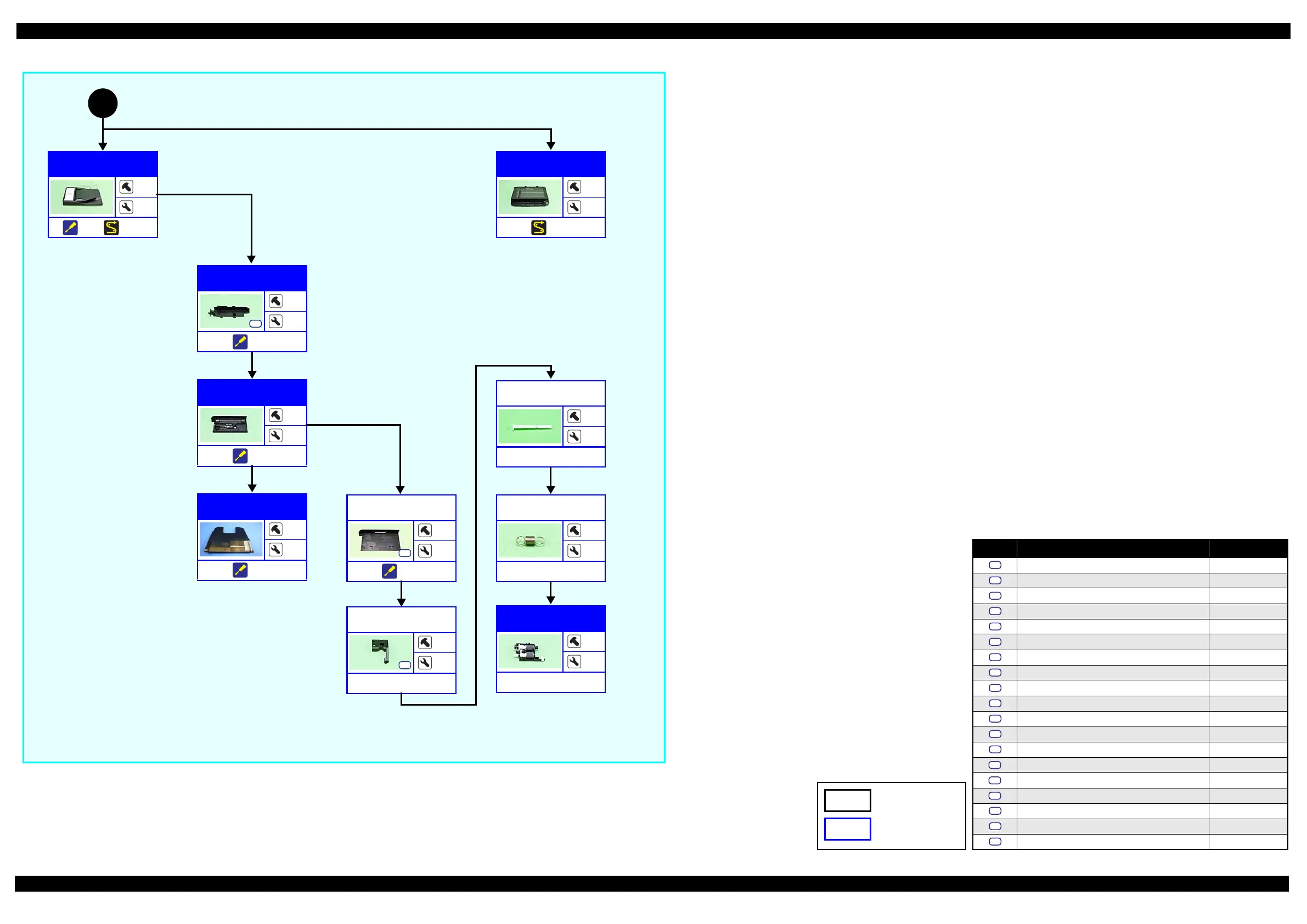

Flowchart 2-2. Disassembling Flowchart of Exterior Parts (2)
2
(p 32)
Scanner Unit
---
---
(p 46)
ADF Unit
---
2
(p 44) (p 46)
ADF Document
Support Assy
---
2
(p 44)
ADF Cover
Housing Upper
4
5
(p 44)
S2
LD Shaft
---
1
---
Extension Spring
0.99
---
---
---
LD Cover
1
---
---
S2
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE SCREW 2x6-F/ZN-3C 2 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10-F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6-F/ZN-3C 6
± 1 kgf·cm
C.P.SCREW 3x6-F/ZN-3C 6 ± 1 kgf·cm
C.P.SCREW 3x6-F/ZN-3C 2
± 5 kgf·cm
C.B.P-TITE (P2) SCREW 3x10-F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 3x8-F/ZN-3C 6
± 1 kgf·cm
C.P.SCREW 2.5x6-F/ZN-3C 2 ± 5 kgf·cm
C.P.SCREW 3x5-F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE (P4) SCREW 3x8-F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8-F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 2x10-F/ZN-3C 3 ± 0.5 kgf·cm
C.B.P-TITE (S-P1) SCREW 3x12-F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE (P4) SCREW 3x10-F/ZN-3C 6 ± 1 kgf·cm
C.P.SCREW 3x4-F/ZN-3C 6
± 1 kgf·cm
C.B.EP-TITE SCREW 2.6x17 (B=14) F/ZN-3C 2.5 ± 0.4 kgf·cm
P.W.,2.8x0.5x6.5-F/ZN-3C 3
+ 0.5 kgf·cm
C.P.SCREW 2.5x6-F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE(P2) SCREW,3x8-F/ZB-3C 6
± 1 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
Parts/units whose
composition or shape
differ between models
Common parts/units
ADF Rear Cover
1
3
(p 44)
S2
ADF Cover Assy
---
2
(p 44)
ADF LD Assy
---
2
---

Epson WF-5690 Series Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Fax	Yes
Functions	Print, Copy, Scan, Fax
Dimensions (W x D x H)	18.1" x 25.8" x 15.1"
Print Technology	PrecisionCore
Print Speed (Black/Color)	20 ppm / 20 ppm
Scanner Type	Flatbed, ADF
ADF Capacity	35 sheets
Display	4.3" color touchscreen
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Paper Sizes	A4, A5, A6
Ink Cartridges	Black, Cyan, Magenta, Yellow
Monthly Duty Cycle	45, 000 pages
