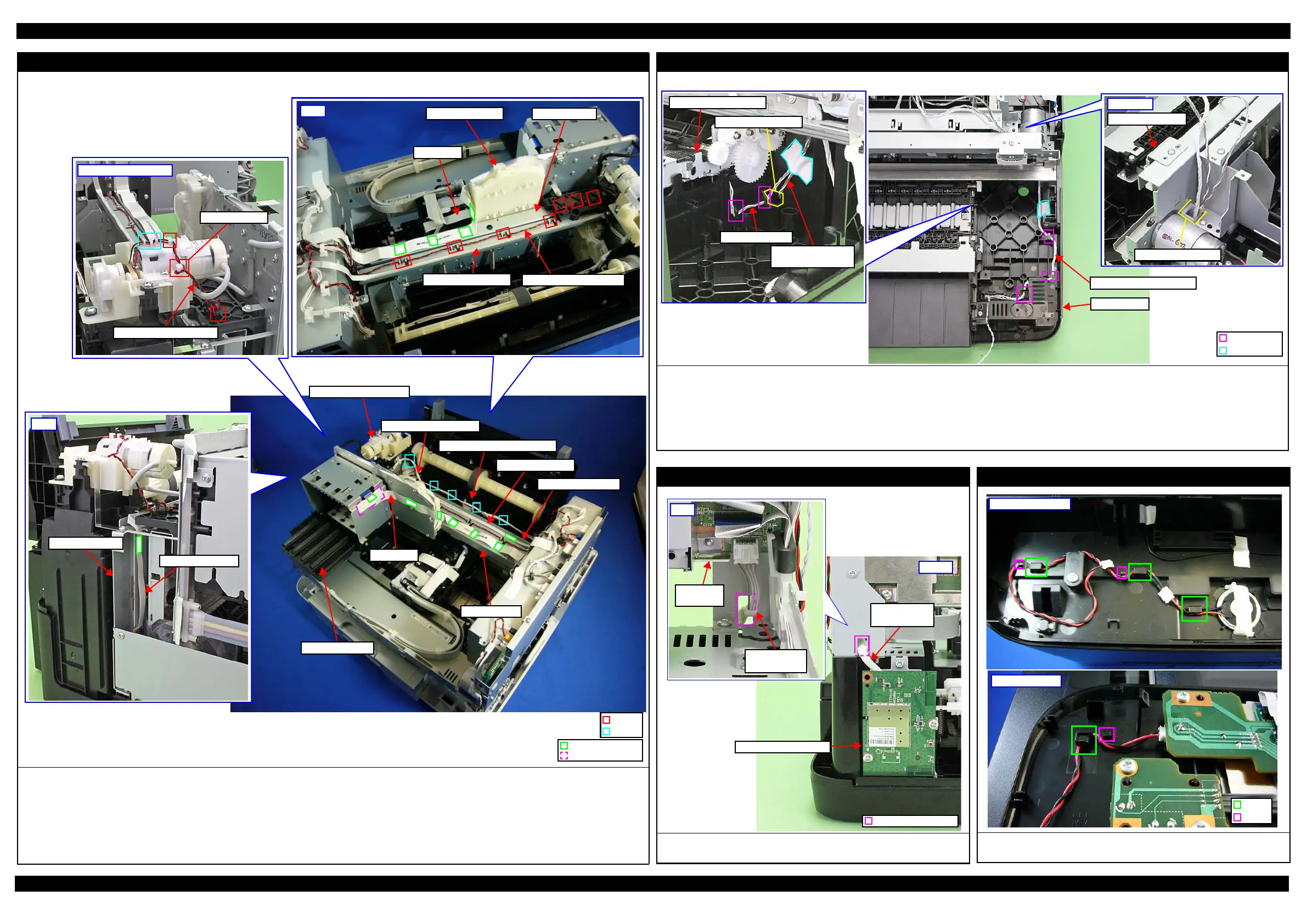

Top of the Printer
Power Supply Unit cable Route it through the ribs (x5) of the Rear ASF Guide Upper Assy.
Decompress Pump cable Route it through the ribs (x3) and hooks (x2) of the Decompress Pump Unit, hooks (x3) of the Ink Supply Unit, and the
hooks (x8) of the Fasten Plate Center.
CSIC FFC Form the CSIC FFC back by folding it on the original fold lines, and route it on the Ink Supply Unit and Main Frame, and
then secure it on the positions shown above with acetate tape and double-sided tape.
PF Encoder FFC Form the PF Encoder FFC back by folding it on the original fold lines, and route it on the Fasten Plate Left and Fasten Plate
Center, and then secure it on the position shown above with double-sided tape.
Left
PF Encoder FFC
Fasten Plate Left
Double-sided tape
Hook
Rib
Acetate tape
Rear
Fasten Plate Center
Ink Supply Unit
Main Frame
CSIC FFC
Decompress Pump cable
Decompress Pump Unit
Decompress Pump cable
Make one turn
Power Supply Unit cable
Rear ASF Guide Upper Assy
Decompress Pump Unit
Ink Supply Unit
Main Frame
CSIC FFC
PF Encoder FFC
Fasten Plate Center
Bottom of the Ink System Unit
Route the Paper Stopper Lever Sensor cable, PE Sensor cable and ASF Encoder relay cable as follows, and then route them under the Main Frame Assy and
pull them out from the hole of the Holder Cam Assy.
Paper Stopper Lever Sensor cable Pull it out from the hole of the Frame Base, and secure it on the position shown above with acetate tape.
PE Sensor cable Pull it out under the Paper Guide Front Assy and route it through the hooks (x2) of the Frame Base, and then secure
it on the position shown above with acetate tape.
ASF Encoder relay cable Route it through the hooks (x3) of the Frame Base, and then secure it on the position shown above with acetate tape.
Main Frame Assy
Hole of Holder Cam
Rear right
Paper Stopper Lever
Sensor cable
Paper Guide Front Assy
PE Sensor cable
Hole of Frame Base
Acetate tape
Frame Base
ASF Encoder relay cable
Wireless LAN Module
Route the Wireless LAN Module cable through the hole of the Front Frame,
and then connect it to the connector on the Main Board.
Wireless LAN Module
Hole of Front Frame
Main Board
Assy
Wireless LAN
Module cable
Back
Wireless LAN
Module cable
Right
Speaker Cable (WF-5690/4640/4630/5620 series)
Route the Speaker cable through the hook and rib of the Scanner Unit and
Panel Unit on the positions shown above.
