Confidential
Appendix Connector Diagram 90
Epson WF-5690/4640/4630/5620/5190/5110 series Revision D
5.1 Connector Diagram
Cable connections of this printer are shown below

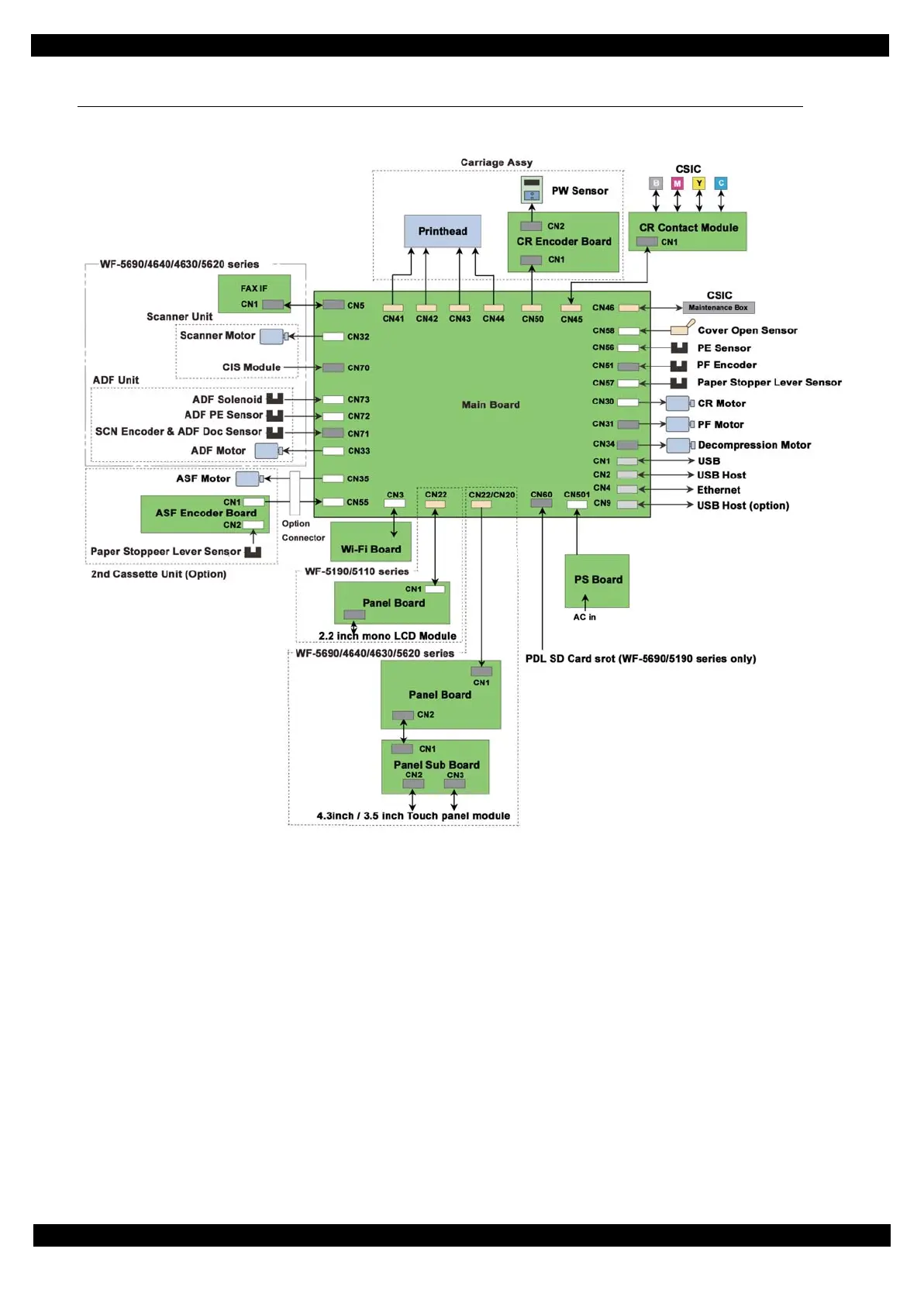

Figure 5-1. Connector Diagram
