Epson WF-7110 Series User Manual

Epson WF-7620 / WF-7610 / WF-7110 Series Revision B
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 46
Confidential

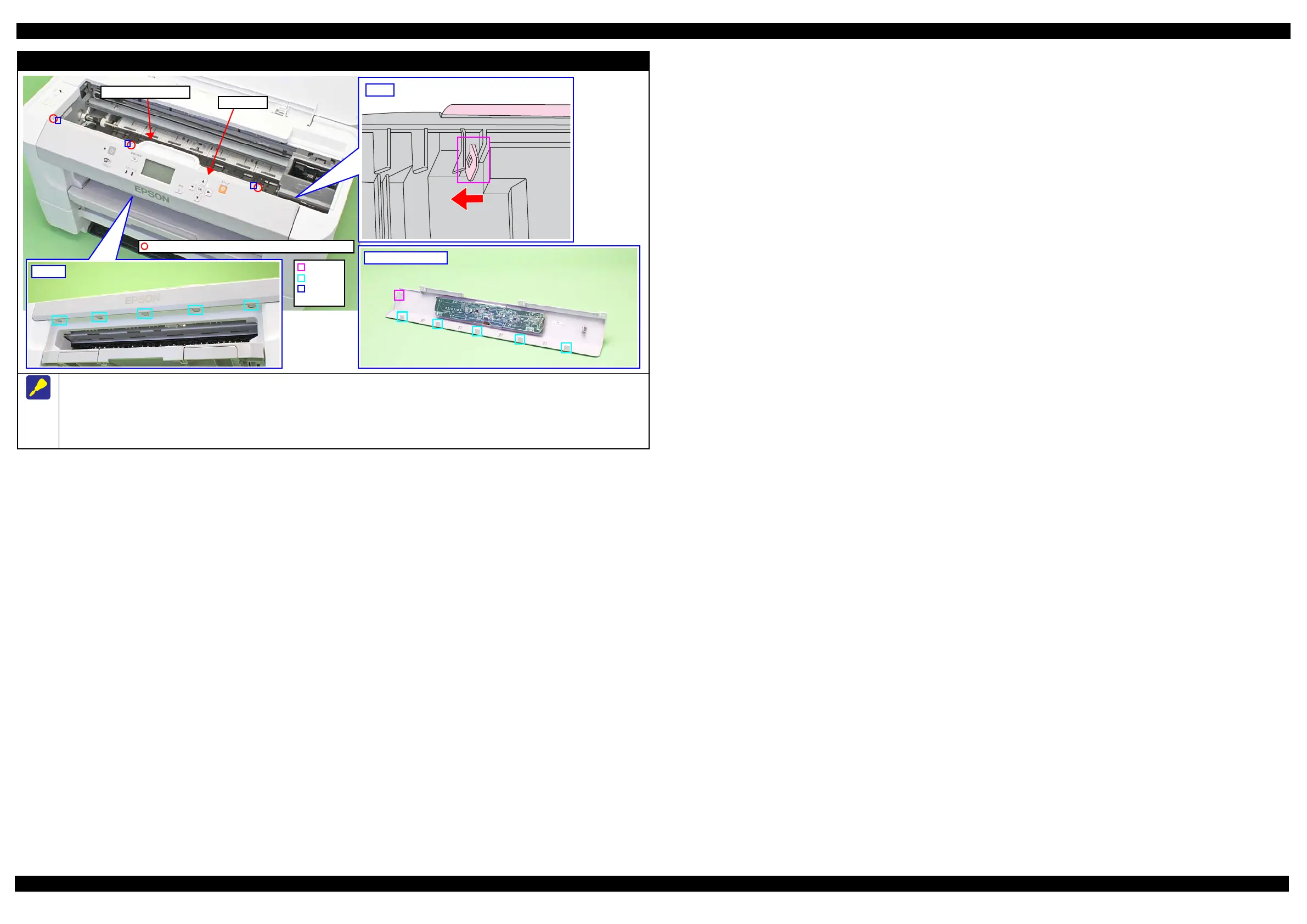

Panel Unit (WF-7110 Series)
Remove the Panel Unit as follows.
1. Remove the screws (x3) that secure the Panel Unit.
2. Disengage the holes (x3) on the Panel Unit from the dowels (x3) on the Housing Upper Assy.
3. Press the hook A on the rear of the Panel Unit in the direction of the arrow to release the hook.
4. Release the hook B (x6) on the bottom of the Panel Unit, and disconnect the Panel FFC from the connector on the Panel Unit, then remove the Panel Unit.
Bottom
Panel Unit
C.B.P-TITE SCREW 3x10 F/ZN-3C (6±1 kgf·cm)
Rear of Panel Unit
Rear
Hook A
Hook B
Dowel
and Hole
Housing Upper Assy

Epson WF-7110 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	4800 x 2400 dpi
Duplex Printing	Yes
Input Tray Capacity	250 sheets
Wireless	Yes
Functions	Print
Maximum Resolution	4800 x 2400 dpi
Max Print Size	13" x 19"
Connectivity	USB, Ethernet, Wi-Fi
Paper Sizes	Letter, Legal, A4, A5, A6
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	15 ppm (ISO)
