6. When performing the adjustment again, press “Push this Area. [Cancel]” and start from Step 4 again. To save
the adjustment result, press “Push this Area. [Save]”.

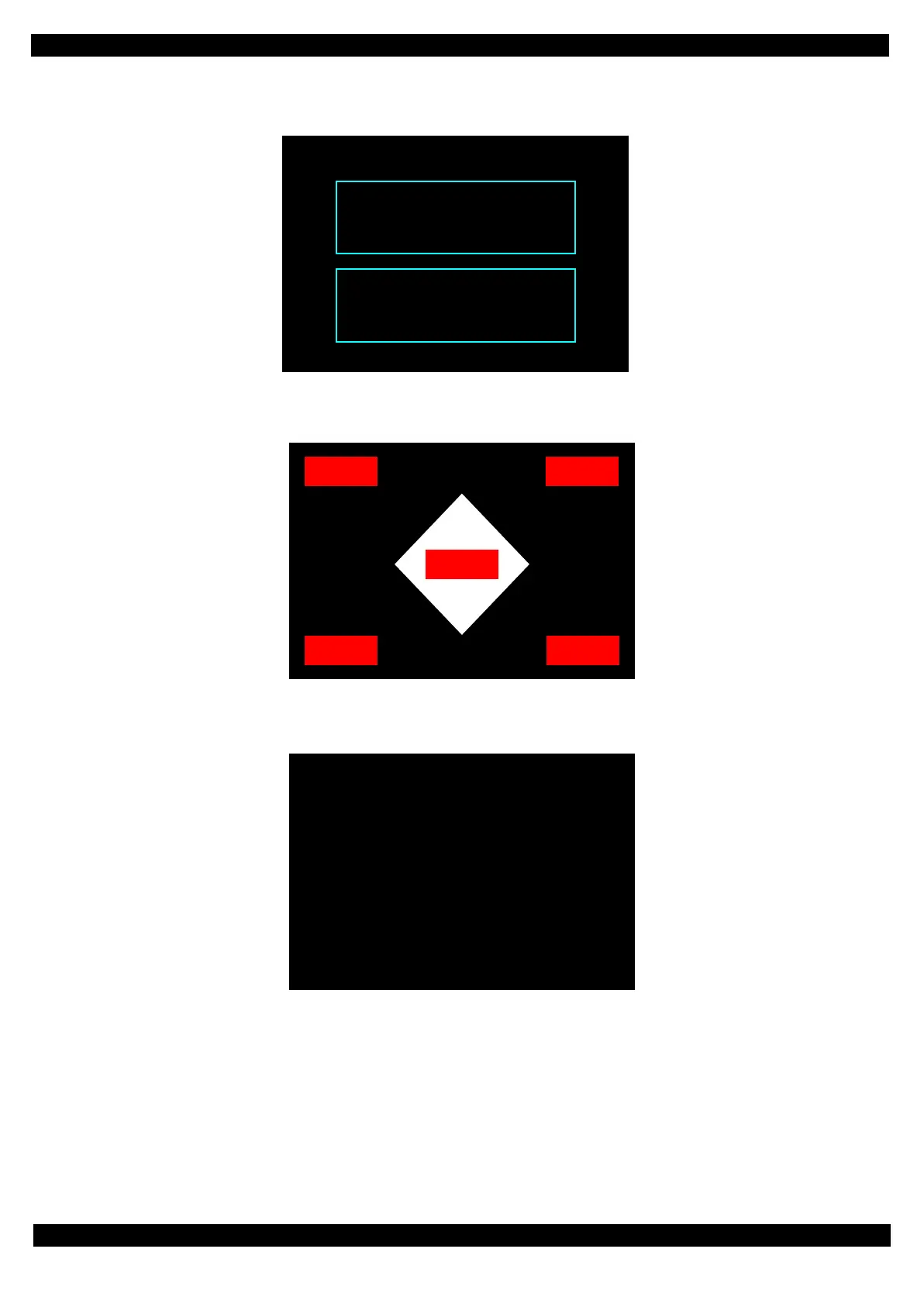

Figure 3-16. Touch Panel Adjustment (6)
7. Press the areas within the red boxes (x5) using the Touch Pen.
Figure 3-17. Touch Panel Adjustment (7)
8. When “Complete!” appears on the LCD, press the [Color] button to finish the adjustment.
Figure 3-18. Touch Panel Adjustment (8)
Push this Area. [Save]
Push this Area. [Cancel]
Calibration Check
Touch Red Area
Complete !
Push [Color] Button.
